Imagine opening your ultra-thin laptop or latest tablet and seeing a crystal-clear, ultra-sharp display spring to life instantly. You might not think about what makes that possible—but behind every crisp pixel is a tiny hero: the EDP cable. In a world obsessed with slim, lightweight devices and higher resolutions, the humble cable assembly has become a game-changer. But what exactly is an EDP cable, and why are engineers, designers, and even end-users shifting away from older standards like LVDS?
An EDP (Embedded DisplayPort) cable is a high-speed internal cable that connects a device’s motherboard or graphics module directly to its display panel. It transmits high-resolution digital video signals efficiently, supporting thinner, lighter, and more power-efficient designs. Compared to LVDS, EDP offers higher bandwidth, better image quality, and lower power consumption—making it essential for modern laptops, tablets, and embedded displays.
While most people only see the glossy surface of their devices, the story beneath is full of engineering drama—struggles with space constraints, heat management, and ever-increasing user demands for visual perfection. Let’s peel back that story and see how EDP cables power the next generation of visual experiences and why Sino-conn’s expertise makes a difference.
What Is an EDP Cable and What Does It Do?
An EDP cable, or Embedded DisplayPort cable, is designed to connect the motherboard or graphics processor to an internal display panel, enabling seamless high-speed digital video transmission. It is crucial for achieving high-resolution, low-power, and slim device designs.
At its core, an EDP cable assembly acts as the nervous system between a device’s brain (the GPU or CPU) and its visual output (the display). Unlike traditional LVDS (Low-Voltage Differential Signaling), which requires multiple pairs of wires and consumes more power, EDP leverages fewer wires and a simpler architecture to achieve superior performance.
Why EDP over LVDS?
- Supports ultra-high resolutions such as 4K and 8K
- Reduces overall power consumption by up to 30%, extending battery life
- Simplifies internal structure, allowing for thinner, sleeker designs
- Minimizes electromagnetic interference (EMI)
Comparison of EDP vs LVDS Cables
| Feature | EDP Cable | LVDS Cable |
|---|---|---|
| Max resolution support | Up to 8K and beyond | Usually up to 1080p or 2K |
| Number of wires | Fewer, simpler architecture | More wires, more complex |
| Power consumption | Up to 30% lower | Higher |
| EMI performance | Excellent with advanced shielding | Moderate |
| Cable thickness | Slim and flexible | Thicker, less flexible |
| Customization options | Highly customizable | Limited |
| Typical applications | Laptops, tablets, automotive, medical | Older laptops, industrial displays |
Sino-conn specializes in designing EDP cables that not only handle these technical demands but also comply with the latest industry standards (UL, RoHS, REACH, etc.). Our assemblies often include micro coaxial structures and advanced shielding to guarantee signal integrity even in compact, EMI-heavy environments.
Whether you’re developing the next generation of foldable laptops or advanced medical displays, EDP cables form the backbone of high-quality visual performance. By moving to EDP, brands gain a competitive edge in both design and user experience.
Which Devices and Industries Commonly Use EDP Cables?
EDP cables are widely used in laptops, tablets, all-in-one PCs, industrial control monitors, medical imaging devices, and automotive display panels due to their high resolution support and slim design compatibility.
Consumer Electronics Boom
The biggest adopters of EDP cables are laptops and tablets. As these devices race to become slimmer and lighter while sporting higher resolution screens, the need for compact and efficient internal connections has skyrocketed. EDP cables allow brands to create ultra-thin bezels and longer battery life without sacrificing image quality.
Industrial and Medical Applications
In industrial control panels and medical imaging equipment, reliability is king. Devices in these sectors often operate in high-interference environments and need to deliver precise, uninterrupted visuals. EDP cables, with superior EMI shielding and high data throughput, perfectly address these challenges.
Automotive Displays
Modern vehicles increasingly rely on sophisticated display panels for dashboards, infotainment, and rear-seat entertainment systems. EDP cables support flexible layouts, integrated touch functionality, and high brightness requirements.
Why do these industries prefer EDP?
- Lightweight and space-saving
- Robust signal integrity even under harsh conditions
- Customization potential (e.g., touch signal integration, length, pin-out)
Sino-conn has delivered customized EDP solutions to leading OEMs across these sectors. Whether you need a cable that withstands extreme temperatures or integrates seamlessly with curved dashboards, our design team can tailor solutions down to the smallest detail.
What Materials Are Used in EDP Cable Assemblies?
When you look at a sleek, ultra-thin laptop or a razor-sharp automotive dashboard display, you might think that it’s all about the screen technology. But behind the scenes, the quality and reliability of your viewing experience depend heavily on what’s connecting everything together — the EDP cable assembly materials. At Sino-conn, material selection isn’t just a technical necessity; it’s an art form and a strategic advantage.

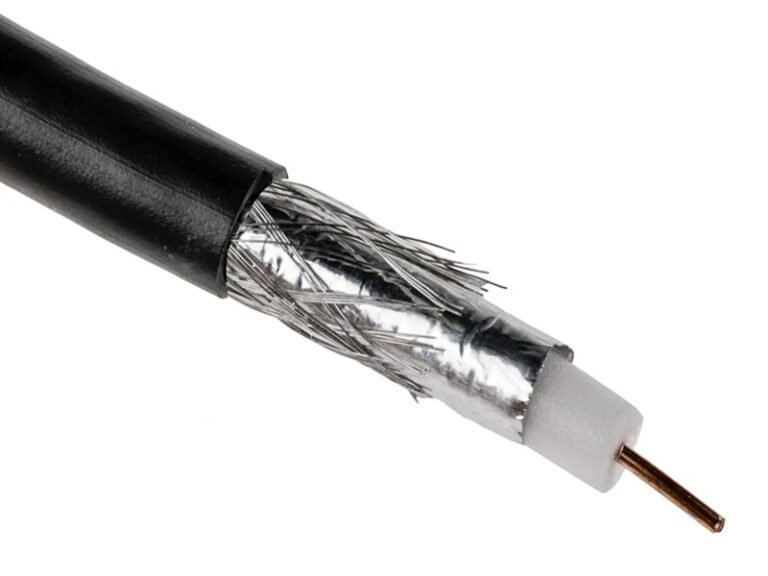

Micro Coaxial Cables: The Core Backbone
The micro coaxial cable is the most critical component of an EDP assembly. It’s ultra-thin, ultra-flexible, and yet capable of transmitting high-speed digital signals without significant loss. This allows device designers to achieve tight bends and sharp turns inside ultra-slim housings without compromising performance. Thanks to its superior signal integrity and EMI suppression, micro coaxial cables are preferred for premium devices that demand stable and vivid visuals.
High-Purity Copper Conductors: The Performance Booster
The quality of copper used directly impacts the efficiency of signal transmission. Sino-conn utilizes high-purity copper conductors, often tin- or silver-plated to improve corrosion resistance and electrical conductivity. Lower resistance means clearer, faster data transmission, which is essential for high-resolution screens operating at high refresh rates. With poor-quality copper, signals may degrade, leading to flickering or color distortion — absolutely unacceptable in today’s competitive markets.
Multi-Layer Insulation: The Silent Guardian
Insulation materials like FEP (Fluorinated Ethylene Propylene) and PEEK (Polyether Ether Ketone) are more than just protective shells. They serve as the shield against heat, chemicals, and mechanical stress. Devices today face harsh usage conditions: extreme temperatures, frequent flexing, and chemical exposure from cleaning solutions or environmental factors. Multi-layer insulation ensures that the cable maintains its shape, flexibility, and signal reliability over time, even under repeated bending and twisting.
Advanced Shielding Layers: The Defender Against Noise
Electromagnetic interference (EMI) is a nightmare for any display engineer. EDP cables are often squeezed into tight spaces alongside other high-frequency components, creating a perfect storm for EMI issues. Sino-conn integrates advanced aluminum foil and braided mesh shielding, effectively blocking external noise and preventing internal signal crosstalk. This guarantees a consistent, flicker-free image even in high-EMI environments like automotive dashboards or industrial control rooms.
Precision Connectors: The Final Link
A high-quality cable is useless without reliable connectors. Sino-conn offers both original brand connectors and premium alternative solutions, depending on your application needs and budget constraints. Original connectors ensure maximum compatibility, especially for brand-sensitive projects, but they often come with longer lead times and higher costs. Alternative solutions, when engineered properly, offer nearly identical performance with greater flexibility in supply and pricing. Sino-conn’s engineering team guides clients through this choice, helping balance performance, availability, and cost.
| Material | Function | Benefit |
|---|---|---|
| Micro coaxial | Signal transmission | High speed, flexibility, EMI suppression |
| High-purity copper | Conductivity | Low resistance, high fidelity |
| FEP/PEEK insulation | Protection | Heat, chemical, and mechanical resistance |
| Aluminum/braided shielding | EMI protection | Stable, noise-free image |
| Precision connectors | Electrical/mechanical link | Reliable connection, customizability |
At Sino-conn, these materials are carefully chosen, tested, and certified (UL, RoHS, REACH, etc.) to ensure they meet the highest global standards. Whether your priority is extreme flexibility, long-term durability, or the lowest possible signal loss, Sino-conn can tailor material combinations to achieve your specific goals.
This obsessive attention to materials isn’t just a technical footnote — it’s what makes your display stand out in a crowded market. When your device performs flawlessly under real-world conditions, your brand reputation strengthens, and end users feel the difference every time they open their screen.
How Many Types of EDP Cable Assemblies Exist?
EDP cables come in standard micro coaxial, ultra-thin flexible FPC/FFC types, integrated touch versions, and fully custom configurations to fit unique mechanical and functional requirements.
Standard Micro Coaxial Assemblies
These are the most common and are optimized for high-resolution transmission in laptops and monitors. They balance strength, flexibility, and EMI shielding.
Ultra-Thin Flexible FPC/FFC Designs
Used when maximum thinness and bendability are needed, such as foldable devices or ultra-slim tablets. These designs provide high routing freedom without sacrificing signal quality.
Integrated Touch Signal Versions
Modern touch screens often require additional lines to transmit touch data. By integrating these into the EDP cable, manufacturers reduce the number of internal cables and simplify assembly.
Fully Custom Configurations
Customers often require special lengths, unique pin-outs, or non-standard connector arrangements. Sino-conn specializes in creating these bespoke assemblies, even for low-volume or prototype needs. We provide CAD drawings within as little as 30 minutes and confirm final designs before production, empowering customers to iterate rapidly.
Customization Capabilities by Sino-conn
| Feature | Sino-conn Capability | Customer Advantage |
|---|---|---|
| Length & pin-out | Fully customizable | Fits unique designs and mechanical needs |
| Connector type | Original or alternative options | Balance between cost and performance |
| Integrated touch support | Available | Reduces cable clutter, simplifies assembly |
| Minimum order quantity | No MOQ | Ideal for prototypes & small batches |
| CAD drawing speed | As fast as 30 minutes | Accelerates design verification |
| Sample lead time | As fast as 3 days | Fast market validation |
| Mass production lead time | 2 weeks or less | Shortens overall time-to-market |
Do EDP Cables Solve Common Design and Performance Challenges?
Product designers and engineers are constantly juggling conflicting priorities: higher performance, slimmer form factors, longer battery life, and lower electromagnetic interference. EDP cables are not just another incremental improvement — they directly address these challenges and transform them into competitive advantages.
Ultra-High Resolutions Without Compromise
Consumers are demanding 4K, 8K, and even higher resolutions in smaller devices. Traditional LVDS connections struggle to keep up due to their limited bandwidth and cumbersome wire configurations. EDP cables offer the high bandwidth necessary for these ultra-high-resolution signals while using fewer data lanes. In real-world tests, EDP consistently outperforms LVDS in delivering sharper and more color-accurate visuals.
Reduced Power Consumption for Longer Battery Life
Battery life can make or break a mobile device. EDP cables reduce power consumption by up to 30% compared to older connection standards. This efficiency is achieved through lower voltage swings and more optimized signaling protocols. The result? Devices that can last longer on a single charge, providing a better user experience and reducing overall energy consumption.
Space Savings for Ultra-Slim Designs
Modern laptops and tablets have strict space constraints. Designers need to fit powerful components into ever-slimmer bodies without sacrificing structural integrity or performance. EDP cables’ compact architecture allows for tighter layouts, supporting the creation of ultra-thin, lightweight devices that stand out on retail shelves.
Superior EMI Performance for Stable Visuals
Nothing ruins user experience faster than screen flicker or unexpected interference. EDP cables’ advanced shielding and differential signaling drastically improve EMI resistance. This stability is especially crucial in environments full of noise, like industrial equipment or vehicles surrounded by multiple electronic control units (ECUs).
Unparalleled Customization for Unique Needs
No two devices are exactly alike. From varying connector angles to different pin-out configurations, every design has its own set of demands. Sino-conn’s EDP cables can be fully customized — whether it’s integrating touch signals, accommodating ultra-tight bend radii, or matching unique housing shapes. Sino-conn supports rapid CAD drawings (as fast as 30 minutes) and offers “no MOQ” flexibility, allowing even small-batch prototyping without high upfront investment.
Accelerating Time-to-Market
In today’s fast-paced tech market, delays can mean losing competitive advantage. Sino-conn’s ability to deliver samples within 3 days and full production in as little as 2 weeks helps brands launch products faster, capture market share sooner, and stay ahead of trends.
Ultimately, EDP cables are not just passive components; they are active enablers of next-generation device design. By solving critical technical challenges, they empower companies to deliver products that exceed user expectations. With Sino-conn as your partner, these challenges become opportunities to innovate and lead.
Conclusion: Ready to Build the Future? Contact Sino-conn Today!
Behind every beautiful display lies engineering brilliance—and the right cable makes it all possible. EDP cables are no longer just technical details; they’re a strategic enabler for product innovation and brand differentiation.
With Sino-conn, you’re not just buying a cable; you’re gaining a trusted development partner. Our team is ready to help you design, prototype, and manufacture custom EDP cable assemblies that push the limits of what’s possible.
✅ No MOQ requirements — even one piece to start.
✅ Fast CAD drawings — as quick as 30 minutes.
✅ Rapid prototyping and mass production — samples in 3 days, bulk in 2 weeks.
✅ Full certifications and 100% inspection — peace of mind from design to delivery.
Let’s bring your next big idea to life. Contact Sino-conn now to discuss your custom EDP cable assembly!
