Which LVDS Cable Type Is Best for High-Resolution Displays?

In the digital era of razor-sharp visuals and immersive experiences, the battle for display supremacy isn’t just about pixels — it’s about how data gets to those pixels. Whether you’re developing the next generation of ultra-slim laptops, advanced medical imaging devices, or high-end automotive displays, the hidden star behind the scenes is the LVDS cable. This often-overlooked component holds the power to make or break your image quality, refresh rates, and overall performance.

The best LVDS cable for high-resolution displays is typically the micro-coaxial type, thanks to its exceptional signal integrity, low EMI, and ultra-slim design. This cable ensures that even at ultra-high resolutions and rapid refresh rates, your display maintains stable, flicker-free, and precise visuals.

Think about the last time you admired the vivid details on a medical monitor or a sleek automotive screen — the smooth lines and rich contrasts. That moment of clarity isn’t magic. It’s the result of careful engineering decisions, including the choice of the right LVDS cable. In this article, we’ll uncover what truly matters when choosing the perfect LVDS cable type for high-res displays and share insider insights from Sino-conn’s engineering team. Let’s dive into the hidden engineering details that make those crystal-clear images possible.

What Are LVDS Cables and Why Are They Used in Displays?

LVDS cables are used to transmit high-speed, low-noise digital signals efficiently between display panels and main boards, enabling crisp visuals and stable data transfer in modern displays.

LVDS (Low Voltage Differential Signaling) is a technology designed to handle high data rates with minimal electromagnetic interference (EMI). Unlike traditional TTL signals that rely on higher voltage swings, LVDS uses small voltage differences, resulting in reduced power consumption and higher noise immunity.

So, why does this matter for displays? Today’s screens demand enormous data bandwidth to support higher resolutions (1080p, 4K, or even 8K) and fast refresh rates (120Hz and beyond). LVDS cables act as the arteries, delivering massive amounts of image data quickly and reliably. In laptops, they connect motherboards to ultra-slim panels. In industrial equipment, they maintain signal integrity over long distances despite harsh environments. In cars, they enable bright, smooth infotainment and instrument cluster displays.

Furthermore, LVDS cables are compact and lightweight, making them ideal for the increasingly slim form factors of modern devices. They also provide superior EMI performance, crucial in medical and aerospace environments where data integrity can directly impact safety.

A comparison of TTL vs. LVDS:

This is why LVDS has become the go-to choice for engineers focused on high-quality, high-resolution displays.

Which Materials Make LVDS Cables Ideal for High-Res Panels?

High-res LVDS cables are crafted from high-purity copper conductors, advanced insulation, and robust shielding to deliver stable, interference-free signal transmission.

Signal quality starts with the conductor. High-purity copper, often tinned to resist oxidation, ensures consistent, high-speed data flow. Pure copper offers lower resistance and better conductivity than alloy alternatives, which directly impacts image stability on high-res panels.

Bare copper is slightly more conductive but less corrosion-resistant than tinned copper. Tinned copper provides a longer lifespan in challenging environments, which is critical for automotive and outdoor applications.

Shielding is equally important. Modern LVDS cables often include:

Insulation and Shielding for EMI Reduction

EMI is a display’s worst nightmare. Modern LVDS cables employ multiple layers of shielding:

• Aluminum foil wrap: Protects against high-frequency EMI.
• Braided copper shield: Adds mechanical strength and additional EMI blocking.
• Dielectric insulation: Materials like PTFE or polyurethane provide flexibility and resistance to extreme temperatures.

These design choices help maintain clean signal lines, preventing ghosting or flicker on screens.

Outer Jacket: Durability and Flexibility

The outer jacket isn’t just for looks. It protects from mechanical wear and environmental hazards. For example:

• PVC: Cost-effective and durable for general use.
• TPU: Highly flexible and abrasion-resistant, ideal for moving parts or robotics.
• Low-smoke, halogen-free (LSZH): Mandatory in medical and aerospace sectors to meet safety standards.

Selecting the right combination of these materials enables displays to perform flawlessly even in challenging conditions.

How Do Different LVDS Cable Types Compare for High-Resolution Use?

Different LVDS types vary in shielding, structure, and flexibility, affecting their suitability for high-res applications. Micro coaxial cables generally outperform other types.

Choosing an LVDS cable type isn’t a one-size-fits-all decision. Here’s a closer look at how each type stacks up.

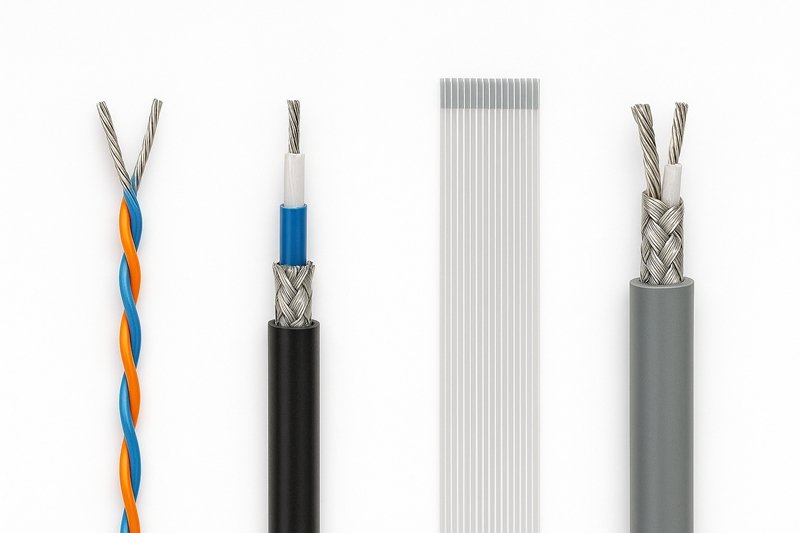

Twisted Pair LVDS

A classic design where pairs of conductors are twisted to minimize EMI. They’re cost-effective and work well for standard-resolution panels or short-distance internal connections.

• Pros: Affordable, widely available.
• Cons: Less effective EMI shielding at ultra-high resolutions.

Micro Coaxial LVDS

Each conductor is individually shielded, drastically reducing EMI and supporting higher data rates.

• Pros: Superior signal integrity, ideal for high-res panels.
• Cons: Higher cost, more complex assembly.

FFC (Flat Flexible Cable) LVDS

These cables are ultra-thin and easy to bend, ideal for compact designs where space is at a premium.

• Pros: Flexibility, compactness.
• Cons: Limited shielding, not ideal for long runs or ultra-high data rates.

Enhanced Shielded LVDS

Heavy shielding makes them suitable for industrial or medical equipment exposed to harsh EMI environments.

• Pros: Excellent EMI performance.
• Cons: Bulkier, less flexible.

For mission-critical, high-res displays, micro coaxial LVDS usually wins the crown.

Is Micro-Coaxial LVDS the Best Choice for Ultra-HD Displays?

Yes, micro-coaxial LVDS is widely considered the top choice for ultra-HD displays because it provides exceptional signal integrity, superior EMI performance, and ultra-slim design flexibility.

Micro-coaxial LVDS cables are designed for cutting-edge display applications where every detail matters. By isolating each signal line within its own coaxial structure, these cables significantly reduce both crosstalk and external interference, which are crucial challenges in high-resolution panels.

Technical Advantages That Stand Out

The first major advantage is superior signal integrity. Unlike twisted pair or flat flexible cables, micro-coaxial cables feature an inner conductor surrounded by a dielectric layer, shield, and jacket. This layered structure protects the signal from interference, even in the most demanding electromagnetic environments. Whether you’re developing a medical imaging device that must deliver precise color gradients or a laptop screen needing ultra-smooth video playback, signal purity is non-negotiable.

Secondly, low EMI emissions are critical in sensitive environments. For example, in surgical rooms or aerospace cockpits, any electromagnetic interference can disrupt other critical electronics. The micro-coaxial design nearly eliminates this risk, ensuring total operational safety and compliance with stringent standards like ISO, UL, and ROHS.

Enabling Ultra-Slim Designs

Consumers today expect thinner, lighter devices without sacrificing screen quality. Micro-coaxial LVDS cables enable this by being extremely thin and flexible while maintaining mechanical strength. This is why they’re the go-to solution in ultra-thin laptops, tablets, foldable devices, and even wearable medical monitors.

In automotive interiors, micro-coaxial cables allow for curved or odd-shaped screens that integrate seamlessly into dashboards and cockpits. Their tight bending radius and excellent durability make them ideal for applications where space constraints are severe.

Real-World Success Stories

At Sino-conn, micro-coaxial LVDS solutions have transformed display performance for global OEM clients. One example is a leading automotive brand that switched to micro-coaxial LVDS to support a new 12-inch curved infotainment display. The result? An ultra-bright, crystal-clear screen that could withstand harsh cabin environments, boosting both aesthetic appeal and user experience.

In the medical field, a global diagnostic equipment company leveraged Sino-conn’s micro-coaxial LVDS design to reduce flicker and enhance the contrast ratio on high-end diagnostic monitors, directly impacting diagnostic accuracy and patient outcomes.

The Investment vs. Return Balance

While micro-coaxial LVDS cables come at a higher upfront cost compared to simpler types, the long-term value far outweighs the investment. Reduced maintenance, fewer returns, higher customer satisfaction, and a competitive edge in product design all contribute to a superior total cost of ownership.

How to Choose and Customize LVDS Cables for Your Display Project?

To choose the best LVDS cable for your display project, you need to carefully consider resolution, data rate, EMI challenges, spatial constraints, and customization options. Sino-conn offers full engineering and production support tailored to these needs.

Start With Display Specs

Resolution and refresh rate should always come first. A 4K display running at 120Hz, for example, demands far more bandwidth than a 1080p panel at 60Hz. Your chosen cable must support these data rates reliably, or you risk image artifacts, flickering, or total signal loss.

Evaluate the Application Environment

Where will the display be used? Industrial robots, medical imaging systems, or automotive dashboards each present unique challenges. High-EMI environments require robust shielding. Outdoor or mobile applications might prioritize weather resistance and flexibility.

Define Customization Parameters

Sino-conn excels in offering deep customization:

• Length & Pinout Design: Whether you need ultra-short jumpers for compact boards or long runs across large equipment, Sino-conn can design precisely the length and pinout configuration you need.
• Material Selection: Choose from various insulations (PVC, PTFE, TPU) and jacket materials to match your environmental and mechanical requirements.
• Connector Options: Sino-conn provides original brand connectors or compatible replacements to balance cost and availability without compromising performance.

Engineering and Prototyping Support

One major advantage of partnering with Sino-conn is the company’s rapid engineering turnaround. Clients often receive 2D/3D CAD drawings within 30 minutes for urgent projects. Prototypes can be delivered as fast as 2–3 days, ensuring no delays in critical design phases.

Furthermore, Sino-conn encourages direct technical collaboration. Video calls with engineering teams allow real-time feedback and adjustments, minimizing iterations and speeding up the path to mass production.

Production Flexibility

Unlike many suppliers that impose high minimum order quantities (MOQs), Sino-conn offers a no-MOQ policy, supporting everything from single prototypes to large-scale manufacturing runs. This is invaluable for R&D teams and startups looking to validate designs before scaling.

Compliance and Quality Assurance

Sino-conn’s cables undergo a triple inspection process: in-process checks, final checks after assembly, and pre-shipment inspections. Certificates such as UL, ISO, ROHS, REACH, and more are available to support global compliance needs.

Let Sino-conn Elevate Your Display Project

Selecting the right LVDS cable type is more than a technical checkbox — it’s the foundation of your display’s performance, reliability, and end-user satisfaction. From micro coaxial’s unmatched performance in ultra-HD displays to highly customized solutions, Sino-conn combines deep technical expertise, rapid support, and flexible production to deliver exactly what your project needs.
