What Is an eDP Cable in a Laptop and How It Works?

In the world of modern laptops, speed and space are everything. From ultra-slim notebooks to high-refresh-rate gaming rigs, today’s machines demand sleek internal designs that still deliver maximum performance. One unsung hero in achieving that balance is the eDP cable — a compact yet powerful interface that links your laptop’s motherboard to the screen.

eDP (Embedded DisplayPort) cables are high-speed internal signal cables that connect a laptop’s display to its graphics card via the motherboard. They offer faster data transfer, lower power consumption, and superior video quality compared to older LVDS cables. eDP has become the preferred standard for most modern laptops, especially those requiring high-resolution displays and slim designs.

An eDP cable in a laptop is a high-speed internal cable that transmits video, control, and power signals between the motherboard and the LCD panel. It supports higher resolutions and refresh rates while consuming less power than LVDS.

While that may sound technical, it has real-world consequences. Ever wondered why your ultrabook has such a thin bezel and a brilliant display? Or why your gaming laptop can push buttery-smooth 144Hz visuals? That tiny flat cable inside — the eDP — makes it possible. Keep reading to discover how it works, why it matters, and how Sino-conn can help you design the perfect eDP solution.

What Is an eDP Cable and Why Is It Used in Laptops?

An eDP cable is a thin, high-speed internal cable that transmits display signals from the motherboard to the screen, offering better performance and efficiency than older standards.

• eDP Defined: Embedded DisplayPort (eDP) is a VESA standard designed for internal display connections. Unlike HDMI or external DisplayPort, it’s not visible to users but lives inside the laptop chassis.
• Why It Replaces LVDS: LVDS (Low Voltage Differential Signaling) was the norm for years, but it struggles with high bandwidth and consumes more power. eDP, in contrast, supports 2K/4K/8K video, uses fewer wires, and allows for thinner screens.
• Compact Design: eDP supports fewer differential pairs for high-speed data. This minimizes cable width, enabling slimmer laptop bezels.
• Power Efficiency: With features like Panel Self Refresh, eDP reduces power draw when the image on screen isn’t changing — a major plus for battery life.
• Widespread Use: Today, most Intel- and AMD-based laptops use eDP, especially models made after 2015.

How Does a Laptop eDP Cable Work Technically?

eDP cables transmit high-speed differential signals, power, and control signals to the laptop display, using fewer wires and delivering better signal integrity than older standards.

• High-Speed Signaling: eDP uses 2 to 4 differential pairs (lanes), allowing up to 8.1 Gbps per lane in eDP 1.4b. That means up to 32.4 Gbps total bandwidth — enough for 4K and beyond.
• Cable Components: Typical eDP cables include:
  • Signal pairs (for video data)
  • Power wires (for backlight)
  • Control lines (EDID, BL_EN, HPD)
  • Connectors (e.g., 30-pin, 40-pin, micro-coax, or FFC)
• Shielding and EMI: Advanced shielding like aluminum foil and braided copper ensures low EMI (electromagnetic interference).

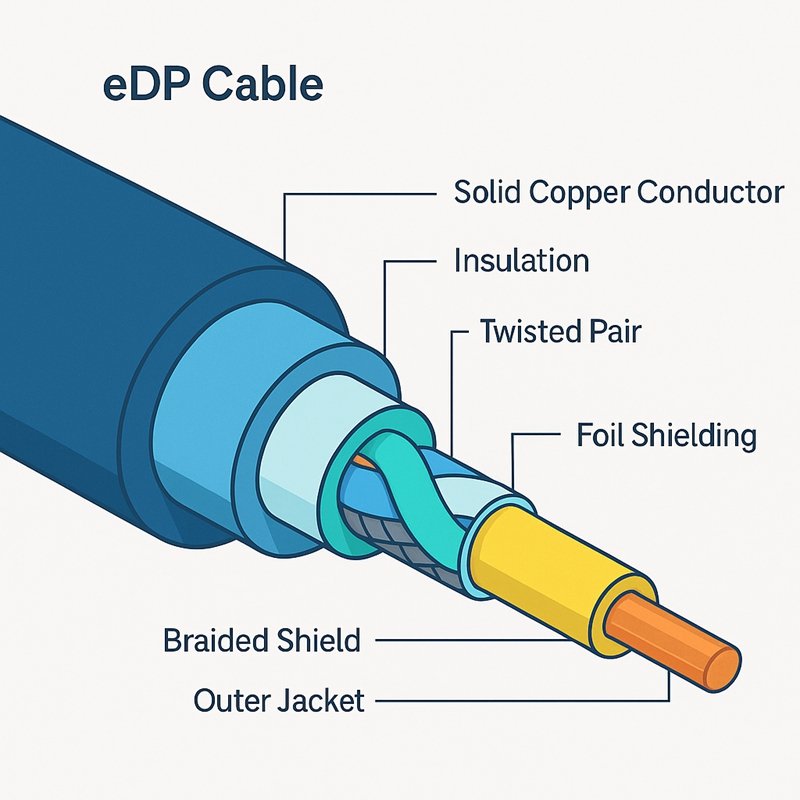

Typical eDP Cable Internal Structure:

• Embedded Features: eDP supports auxiliary channels for bidirectional communication, brightness control, and even touchscreen signals.

Do eDP Cables Vary by Pin Count, Length or Connector?

Absolutely. One of the biggest misconceptions is that all eDP cables are the same. In reality, eDP cables are highly customizable, and choosing the wrong configuration can lead to no image, wrong colors, or screen damage. That’s why Sino-conn offers deep customization across all critical cable parameters, ensuring compatibility and optimal performance.

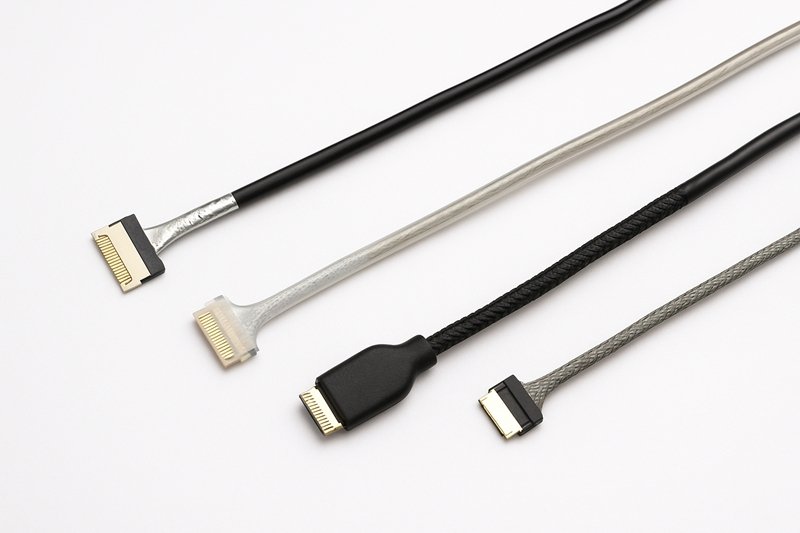

Comparison of eDP Cable Configuration Options:

Pin Count & Layout

The most common configurations are 30-pin and 40-pin. These define how many electrical signals (video, power, control) are mapped to each side. Some eDP cables even share a connector standard but have completely different pinout maps across brands (e.g., Dell vs HP). At Sino-conn, our engineers can reverse-engineer your panel or mainboard to match exact pin assignments, avoiding expensive mismatches.

Connector Types

eDP connectors typically come in 0.5mm pitch and can be either FFC (flat flexible cable) or micro-coaxial wire-to-board connectors. We support a wide range of mating connectors, including low-profile push-lock, latch-lock, and custom keyed options. We also design overmolded or reinforced connector housings to withstand repeated insertion cycles in rugged environments.

Length & Routing

Cable length varies widely depending on the laptop chassis or industrial enclosure design. Some ultrabooks require short 50mm eDP jumpers, while all-in-one PCs may use 200mm+ lengths. All Sino-conn cables are custom-cut to your requested dimensions, ensuring minimal slack and optimized signal timing.

Shielding Options

Sino-conn offers a variety of shielding configurations:

• Foil only: Lightweight, suitable for low EMI areas
• Foil + braid: Maximum protection for high-resolution screens
• Mylar wrap + copper braid: Used in mission-critical and medical systems

Jacket & Flexibility

Cable jackets can be selected for different environmental needs:

• PVC: Cost-effective, general use
• TPU or TPE: For high-flex or high-temp applications
• Halogen-free: Required for eco-compliance in EU or medical industries

Electrical Specifications

We support custom impedance tuning (e.g., 85Ω ±10%), low-capacitance design, and RoHS/REACH/PFAS-free materials. Wire gauge usually ranges between 30–36 AWG, depending on current requirements.

With this level of customization, Sino-conn has helped customers in consumer electronics, automotive, defense, and industrial sectors build eDP cables that are not just compatible—but high performing, scalable, and ready for mass production.

Which Laptops Typically Use eDP Cables Today?

eDP is used in most modern laptops including ultrabooks, gaming PCs, industrial notebooks, and high-res business laptops.

• Mainstream Usage: Brands like Dell, HP, Lenovo, Asus, and Apple use eDP in all non-touch and many touch laptops post-2015.
• Ultrabooks: Thin-and-light devices benefit most from eDP’s compact profile and low power use.
• Gaming Laptops: High refresh rate screens (120Hz/144Hz/240Hz) require the high bandwidth that eDP offers.
• Specialized Devices: Industrial computers, rugged laptops, and medical tablets often use custom eDP cables for integrated displays.
• How to Identify: Look for screen models ending in “eDP” or connectors labeled as eDP in schematics or teardown videos.

Are There Common Problems With Laptop eDP Cables?

Yes. Common eDP cable issues include white screens, flickering, no backlight, or distorted colors — often caused by damage, poor shielding, or connector misalignment.

• Physical Damage: Bending, pinching, or folding can cause microbreaks in the cable.
• Poor Contact: Loose or improperly seated connectors can lead to intermittent signals.
• EMI Interference: Inadequate shielding or improper grounding introduces noise.
• Signal Integrity: Wrong impedance or twisted-pair configuration can lead to video artifacts.
• Troubleshooting Tips:
  • Check for visible wear and tear
  • Use a multimeter to test continuity
  • Replace with known-good cable to compare
  • Ensure correct pin mapping

Ready to Customize Your Laptop eDP Cable with Sino-conn?

Whether you’re an OEM, engineer, or distributor, Sino-conn offers full customization for your eDP cable needs. With no minimum order quantity (MOQ), fast sampling within 3 days, and drawing services as fast as 30 minutes, we’re ready to turn your design into reality. All our cables go through triple inspection, and we offer both premium original connectors and high-quality alternatives to match your budget and project.

Start your custom project today with Sino-conn. Inquire now for datasheets, drawings, pricing, and expert support.
