custom automotive wire harness assembly manufacturer
Looking for a reliable partner for your custom automotive wire harness solutions? Sino-Conn delivers fast samples, flexible customization, and certified quality. From prototype to mass production, we help you optimize performance and reduce costs. No MOQ. Global shipping. Let’s bring your design to life today.
Why choose automotive wire harness assembly from sino-conn
Choosing automotive wire harness assemblies from Sino-Conn ensures precision engineering, fast prototyping, and 100% quality inspection. With no MOQ, rapid sample turnaround, and customization in pin definitions, shielding, and materials, we meet complex vehicle system needs. Backed by global certifications and technical expertise, Sino-Conn is your trusted supplier for reliable, cost-effective automotive wiring solutions.
3-day sample turnaround & fully customized automotive wire harness solutions to fit any vehicle system.
Shenzhen Sino-Media Technology excels in rapid prototyping, delivering functional samples within 72 hours—far faster than industry standards. Our customization covers wire lengths, connectors (original or cost-effective alternatives), and shielding specifications (EMI/UV-resistant). Whether for EVs requiring high-voltage tolerance or ADAS systems needing precision impedance, we adapt swiftly. Clients receive CAD drawings within 30 minutes, ensuring transparent communication. This agility is critical for R&D engineers and OEMs facing tight deadlines, as it accelerates product iteration.
Round-the-clock technical assistance for urgent design modifications and troubleshooting.
Our engineering team provides real-time solutions via video calls for urgent requests—whether adjusting pinouts for a CAN bus harness or resolving EMI issues. With multilingual support (English/German/Japanese), we bridge time zone gaps for global clients. Over 80% of design tweaks are finalized within 4 hours.
Flexible Customization for Any Vehicle Platform
Our automotive wire harness assemblies are engineered with maximum design flexibility. Whether it’s adjusting the cable length, pinout configuration, connector orientation, or external jacket material, we tailor every detail to fit your exact needs. This adaptability is ideal for R&D projects, new model development, and platform-specific applications, helping you reduce time-to-market and integration issues.

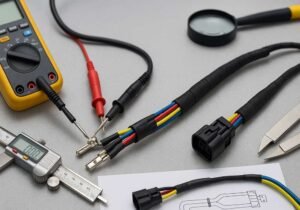

Strict Quality Control with Triple Inspection
Every automotive wire harness assembly undergoes a rigorous triple-inspection process—during production, post-assembly, and before shipment. This ensures that each unit meets our strict quality standards and functions flawlessly in demanding automotive environments. Whether for OEMs or high-end applications, our 100% full inspection policy guarantees product reliability and customer confidence.
Original and Compatible Connector Options Available
We offer both original brand-name connectors and high-quality compatible alternatives, giving customers the freedom to balance performance, cost, and lead time. For large-volume OEM orders, original components ensure top-tier reliability, while compatible parts are ideal for cost-effective, urgent, or flexible customization needs. All options are tested for electrical compatibility and mechanical fit.
No MOQ, Fast Delivery Even for 1 Piece
We understand the flexibility required in the automotive development process, especially during sampling or low-volume customization. That’s why we support no minimum order quantity—whether you need one prototype or a small batch, we can deliver samples in as fast as 2–3 days. This helps R&D teams, small OEMs, and urgent projects move forward without delay.
Detailed specifications and parameters of automotive wire harness assembly
| No. | Definition (Pin Configuration) | Connector Model | Wire Spec | Length (mm) | Sheathing Type | Material |
|---|---|---|---|---|---|---|
| 1 | 14-pin straight male | TE Connectivity 776364-1 | Custom | Custom | Round | PVC sleeve |
| 2 | 6-pin right-angle female | Molex 0736410154 | Custom | Custom | Flat | Conductive fabric |
| 3 | 10-pin high-power male | Amphenol 136-3301-001 | Custom | Custom | Molded | Fluoropolymer tape |
| 4 | 12-pin shielded male (for CAN bus) | JAE MX34003A12-01 | Custom | Custom | Round with shielding | Acetate cloth |
| 5 | 8-pin waterproof female | Delphi 12065273 | Custom | Custom | Molded (sealed) | Nylon braided sleeve |
| 6 | 16-pin high-voltage male (EV use) | Yazaki 7283-8390-40 | Custom | Custom | Round | Silicone-coated |
| 7 | 4-pin quick-disconnect male | Sumitomo 6189-1701 | Custom | Custom | Flat | Teflon sleeve |
| 8 | 24-pin shielded female (ADAS use) | Hirose DF11-24DP-2D | Custom | Custom | Shielded flat | Nano tape |
| 9 | 20-pin high-density male | JST SM20B-SRSS-TB | Custom | Custom | Round | Copper-shielded fabric |
| 10 | 18-pin EMI-resistant male | Rosenberger 1.0-401238-9 | Custom | Custom | Molded with braiding | Aluminum foil tape |
Due to the highly customized nature of automotive wire harness assemblies, each design varies significantly based on the vehicle model, functional requirements, connector types, and installation constraints. At Sino-Conn, we do not offer fixed standard models—instead, we collaborate with clients to develop tailored wire harness solutions. Our team supports flexible pinout definitions, connector brand compatibility, and packaging methods, enabling us to deliver precise, production-ready harnesses for even the most complex specifications.
Customized automotive wire harness assembly styles
Trusted by 300+ global brands,1000+ styles have been developed.
Automotive Wire Harness Assembly Circular M12 to 12-Pin ECU Connector Cable – Model SC-M12ECU12
Automotive Wire Harnesses 3-Pin to 4-Pin Signal Control Adapter – Model SC-3P4P01
Automotive Wiring Harness Assembly Dual Port USB AUX Socket Cable – ASS-23051001
Automotive Wiring Harness Assembly USB to AUX Audio Interface Cable with OEM Connector – Model SC-UAO01
Product details display of automotive wire harness assembly
Our automotive wire harness assemblies feature detailed specifications including wire gauge, insulation material, voltage/current ratings, connector types, EMI shielding, flame resistance, bend radius, and durability under extreme conditions. Each product is shown with high-resolution images—both close-ups and full views—to ensure customers fully understand design, structure, and build quality before ordering.

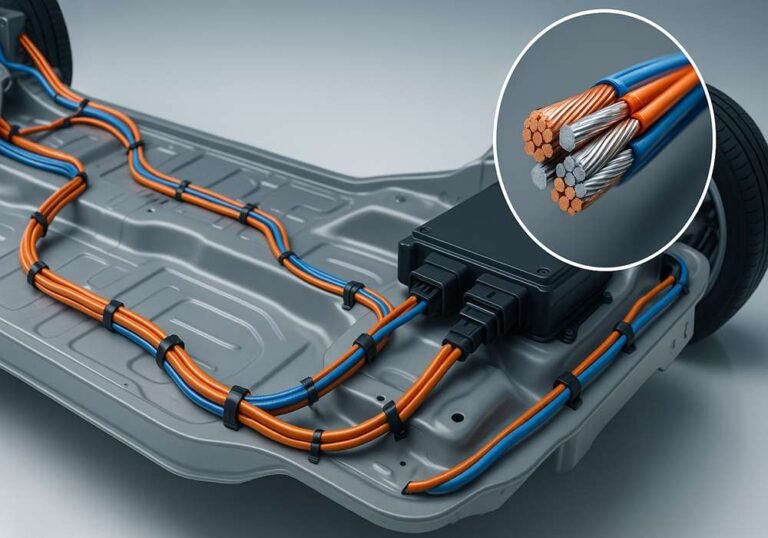

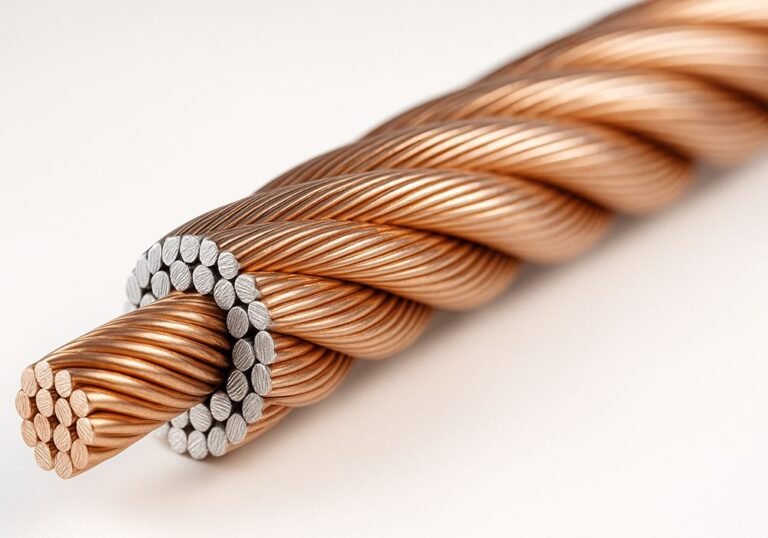

High-Precision Multi-Stranded Copper Conductors
We use high-precision multi-stranded copper conductors in our automotive wire harness assemblies to ensure optimal performance, durability, and electrical conductivity. The following features highlight why this detail is critical:
- Tightly wound copper strands: Each conductor consists of multiple strands twisted together with precise tension, allowing superior flexibility and increased resistance to mechanical fatigue.
- High conductivity: Copper offers excellent electrical properties, reducing power loss and ensuring reliable signal transmission, especially in long-distance routing within vehicles.

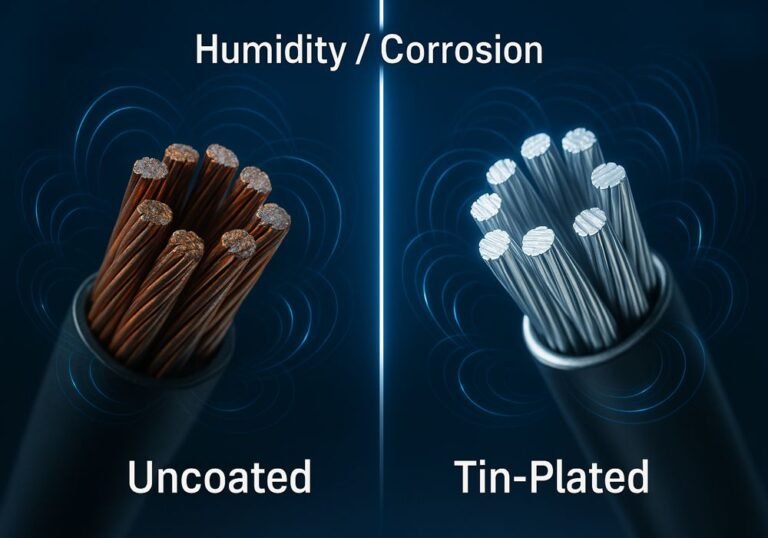

- Tin-plated anti-oxidation layer: Conductors are uniformly tin-plated to prevent corrosion and maintain performance in high-humidity or high-temperature environments.
- Improved EMI performance: The dense strand structure contributes to better electromagnetic shielding when paired with proper shielding layers, reducing interference in complex electronic systems.
- Customized strand counts: Depending on the current requirements and flexibility needs, we adjust the number of copper strands, making it suitable for both power and signal lines in vehicle platforms.
- Tested for vibration and bend cycles: Our copper conductors meet rigorous automotive standards for flexural endurance, making them reliable for long-term dynamic use in harsh conditions.

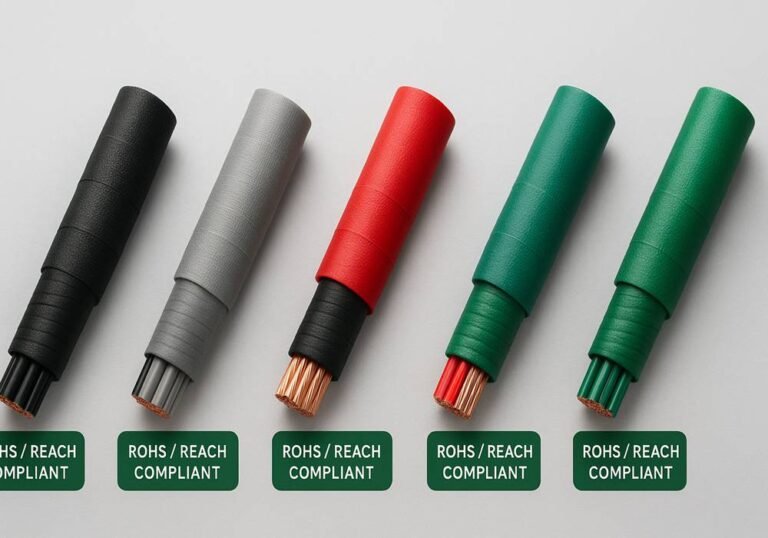

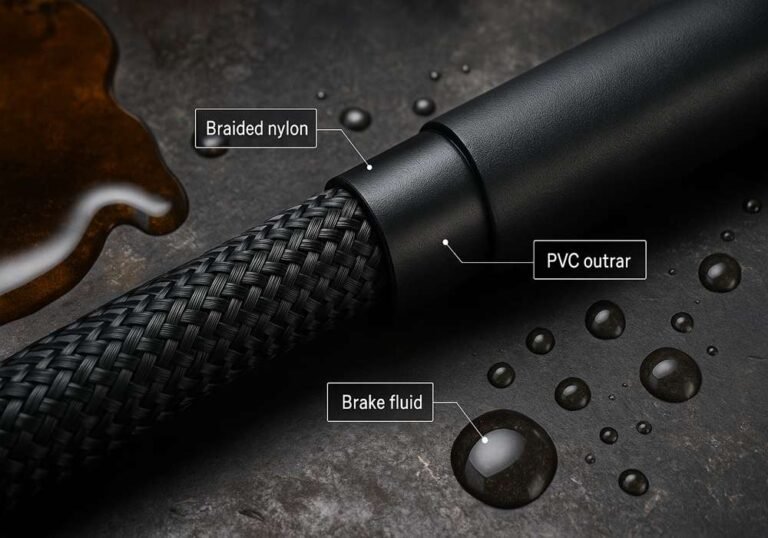

High-Temperature and Eco-Friendly Jacket Materials
Our automotive wire harness assemblies are wrapped in carefully selected jacket materials designed to withstand demanding automotive environments while remaining compliant with global safety and environmental standards. Key advantages include:
- High-temperature resistance: Materials like Teflon (PTFE), XLPE, and PVC are chosen for their ability to endure continuous operation at elevated temperatures, making them ideal for engine bay or battery area applications.
- Fire retardant performance: All jacketing materials are available in flame-retardant grades, minimizing risk in case of short circuits or overheating.
- Eco-compliance: We strictly use RoHS and REACH compliant materials, free from hazardous substances such as halogens or PFAS, to ensure product safety and environmental sustainability.
- Oil, chemical, and abrasion resistance: Our jackets are resistant to engine oils, brake fluids, and other automotive chemicals, ensuring long-term insulation integrity.
- Flexible and durable: Soft yet tough materials like nylon braided mesh or PVC sleeves are applied to ensure flexibility for routing while providing sufficient mechanical protection.
- Customized outer diameters and textures: Jacket thickness, surface finish (smooth or matte), and color can be adjusted to meet branding or assembly needs of the OEM.

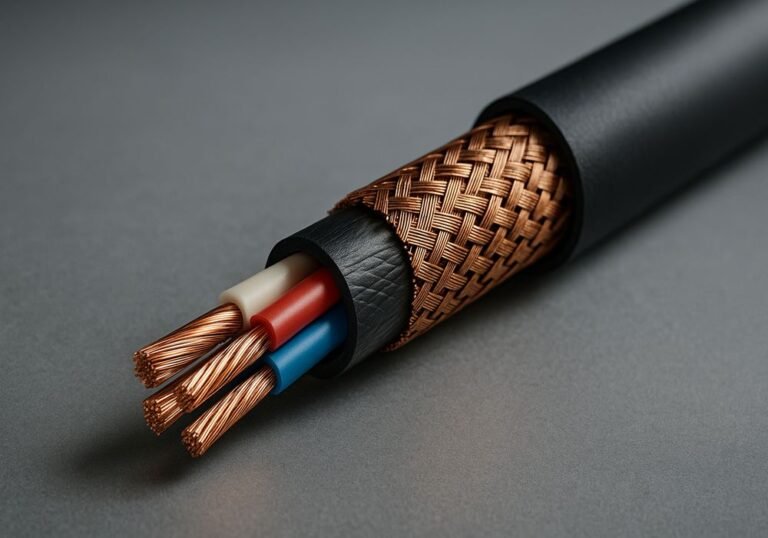

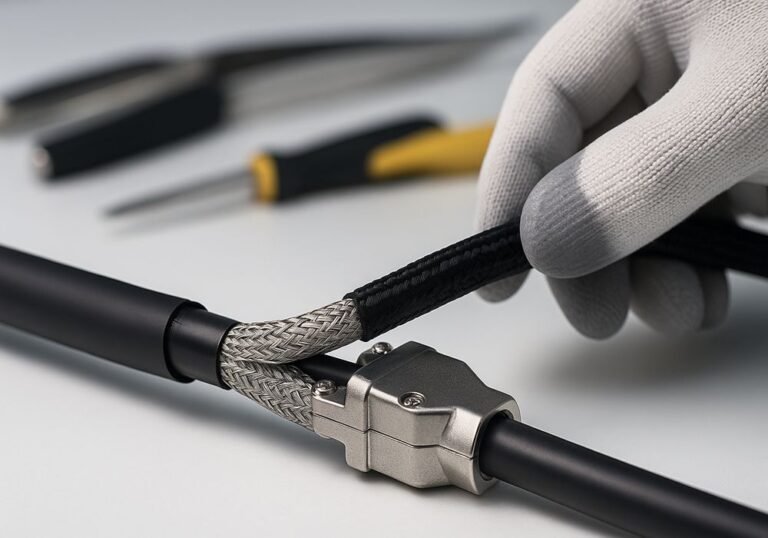

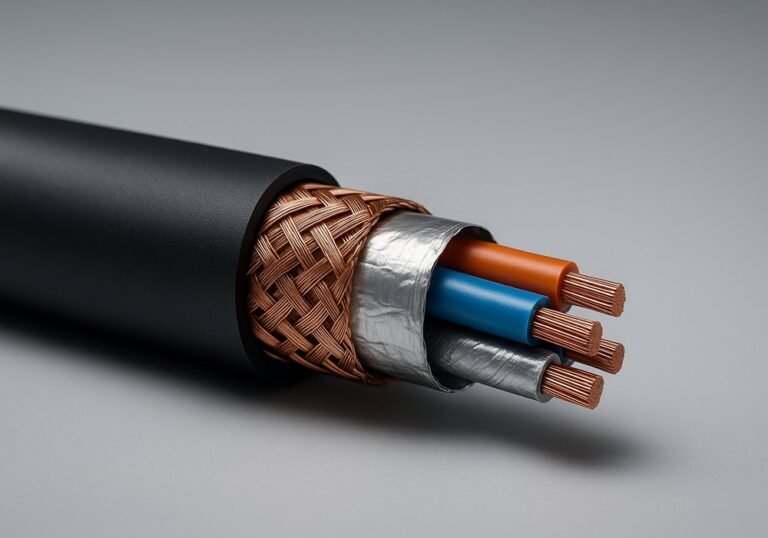

High-Density Braided Shielding for EMI Protection
In modern vehicles where electronic systems are increasingly complex, effective electromagnetic interference (EMI) protection is essential. Our automotive wire harnesses feature precision-engineered shielding structures designed to ensure signal integrity. Key attributes include:
Braided shielding structure:
We use tightly woven copper or tinned copper mesh around the conductor core to create a 360-degree coverage that resists both internal crosstalk and external interference.
EMI/RFI suppression:
The high coverage rate (typically ≥95%) helps suppress radiated and conducted noise, making it ideal for CAN, LIN, and Ethernet automotive networks.
Material flexibility:
Shielding can be made from bare copper, tinned copper, or aluminum-mylar foil depending on the customer’s EMI performance and budget requirements.
Enhanced mechanical strength:
The braided layer not only protects against interference but also strengthens the cable structurally, especially in bending or vibration-intensive zones.
Grounding compatibility:
The shielding layer is easily terminated to ground via pigtail or connector back-shells, ensuring system-level EMI compliance.
Customized application:
Depending on usage environment, we offer single-layer, dual-layer, or hybrid shielding designs (e.g., foil + braid) for maximum effectiveness.

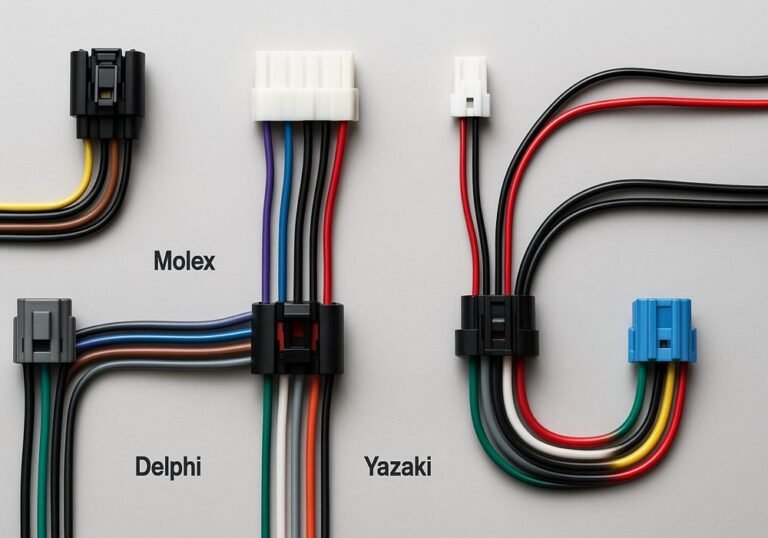

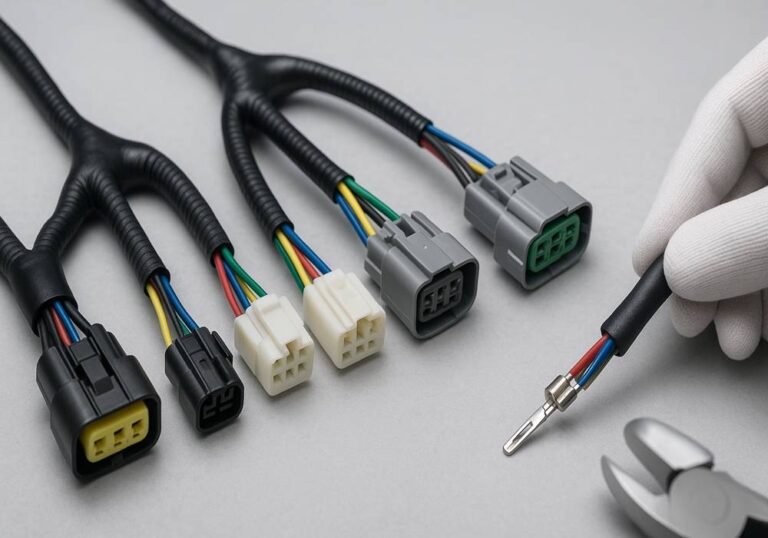

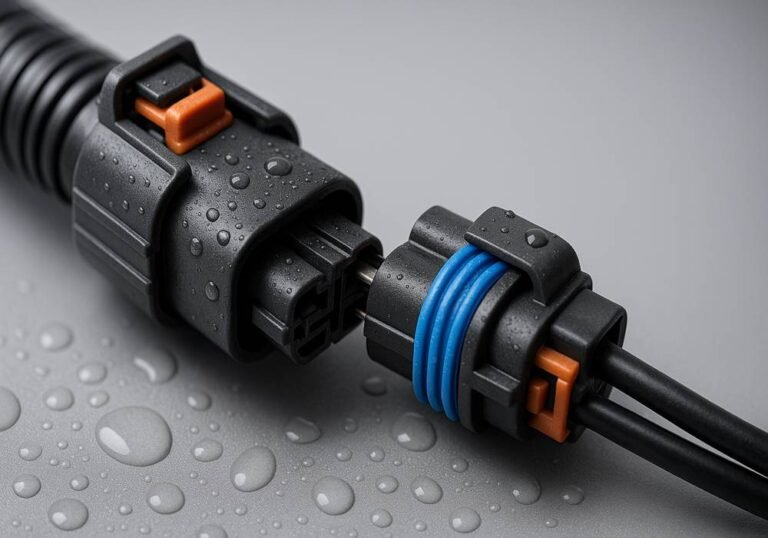

Modular Terminal and Connector Configuration
The terminal and connector configuration is a critical aspect of automotive wire harness design. We offer a wide range of modular, brand-compatible terminal and connector options that provide seamless integration, electrical performance, and ease of maintenance. Key features include:
Brand versatility:
We support original and compatible connectors from leading brands such as TE, Molex, Delphi, JST, Yazaki, and Sumitomo, enabling customer-specific configurations.
Connector locking and sealing:
Our connectors are available with secondary locking mechanisms and waterproof sealing (IP67/IP68), ideal for under-the-hood and exterior applications.

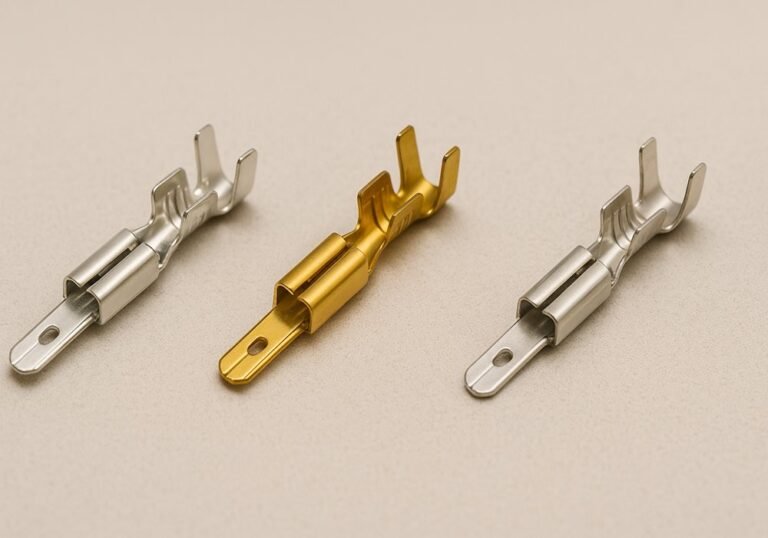

Terminal plating options:
We provide terminals with tin, gold, or silver plating based on the required current, contact resistance, and corrosion environment.
Custom pinout and wiring:
Terminals are crimped and inserted according to exact pinout requirements, including cross, parallel, or 1-to-N routing logic.
Modular assembly:
Multi-connector configurations are grouped via overmolded or taped branches, allowing efficient layout and installation in vehicle bodywork.
Maintenance-friendly design:
We offer traceable labeling, color-coded wires, and keyed connectors to prevent mismating and simplify future repair or upgrade operations.

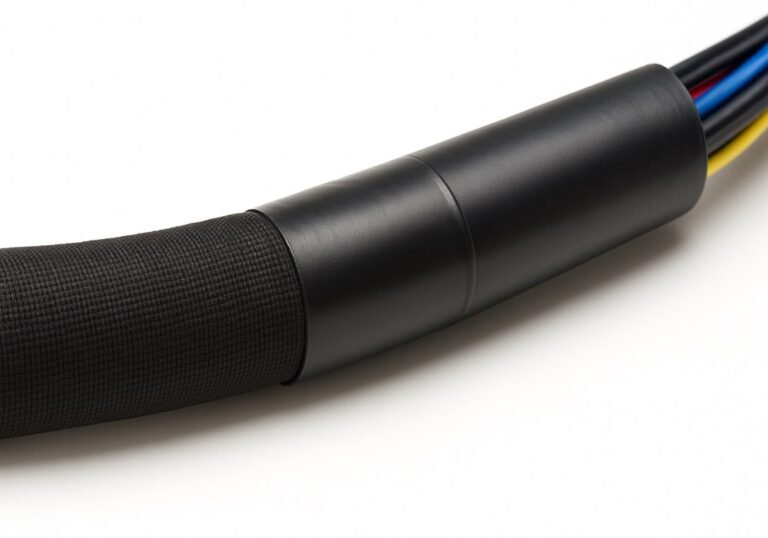

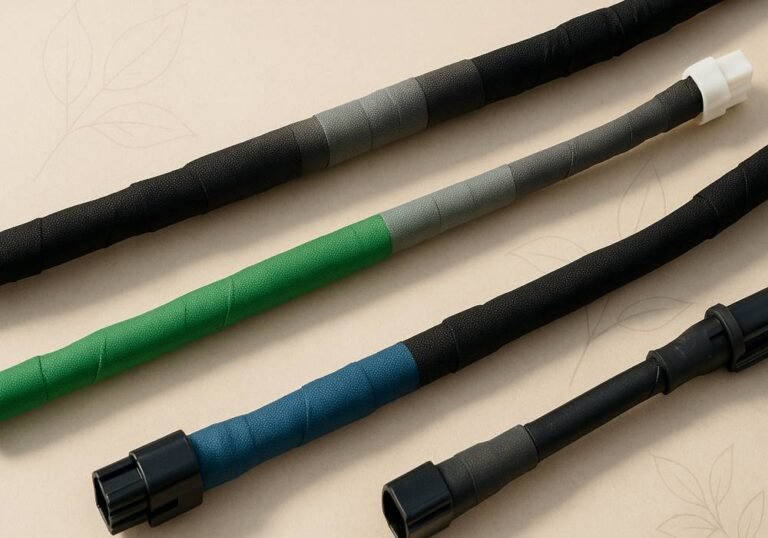

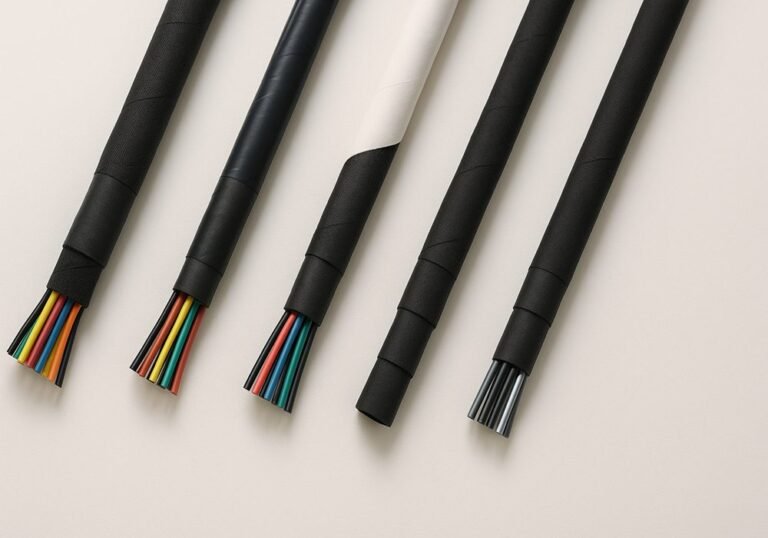

Precision Wrapping and Uniform External Finish
The appearance and structure of the wrapping layer directly affect the durability, heat resistance, and aesthetic quality of automotive wire harnesses. Our wire harnesses are wrapped using industry-standard materials and strictly controlled processes to ensure consistent results. Key features include:
Clean and uniform tape wrapping:
Heat-resistant tapes like cloth tape, PVC tape, and Teflon tape are applied with controlled tension to avoid wrinkles, overlaps, or exposed wires.

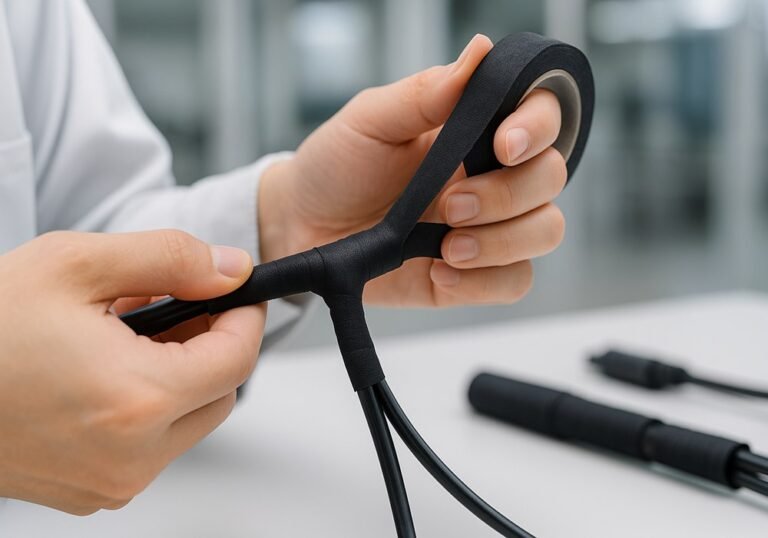

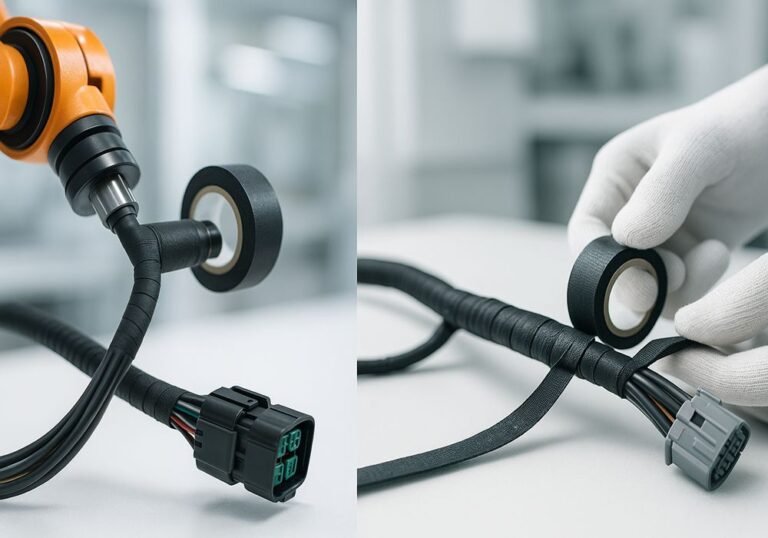

Machine-assisted or manual precision wrapping:
Depending on the application and shape complexity, we combine automated wrapping machines with skilled manual work for tight corners and small branches.
Visual consistency for OEM branding:
We ensure consistent wrapping direction, overlap width, and tail finish, aligning with automotive OEM visual standards and inspection requirements.

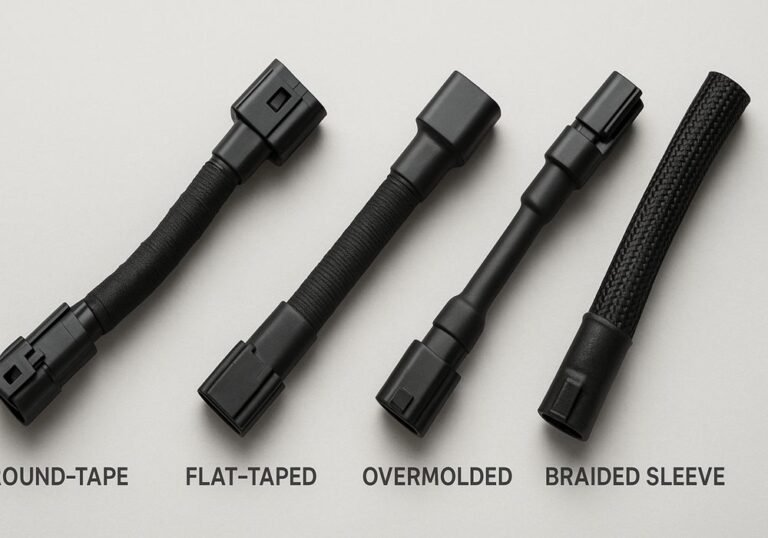

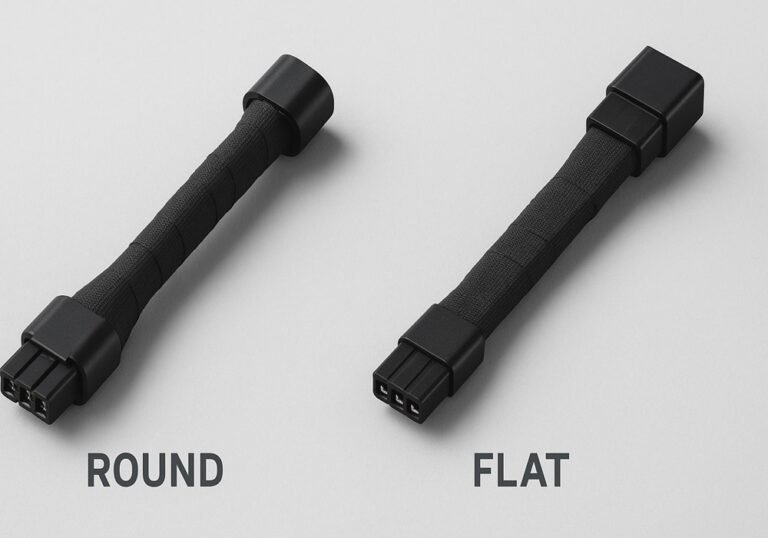

Multiple wrapping styles:
Round, flat, or molded styles are available to suit interior harnesses, trunk lines, or dashboard installations.
Enhanced protection:
Tapes are selected based on mechanical protection, temperature resistance, flame retardancy, and chemical compatibility for underhood or cabin use.
Custom color and material options:
We support black, gray, and color-coded tapes for circuit distinction, and provide eco-friendly materials meeting RoHS/REACH compliance.
Precision Wrapping and Uniform External Finish
Our spiral cable assemblies are designed to operate reliably in harsh outdoor and industrial environments. With options for waterproof sheathing, UV-resistant jackets, flame-retardant materials, and wide operating temperature ranges, they’re ideal for exposed applications. These cables are used in mobile field equipment, outdoor monitoring systems, and industrial robots — where exposure to heat, cold, moisture, and sunlight is common. Material options like TPE, silicone, or ruggedized PU allow cables to remain flexible while resisting cracking, aging, and deformation. Whether you need cables for marine, automotive, or open-air control systems, we provide tailored protection for maximum durability and performance.
- Wide Temperature Range: Operational from -40°C to +105°C for cold and high-heat applications.
- Water and Moisture Resistance: Optional sealed jackets prevent moisture ingress in outdoor use.
- UV and Flame Protection: Specialized compounds withstand prolonged sunlight exposure and meet UL flame ratings.
- Material Options for Tough Conditions: TPE and silicone maintain flexibility in freezing temperatures or oily environments.
--- Customized Capabilities Services and Processes
Customize your automotive wire harness assembly
Discover Sino-Conn’s full-spectrum customization services for automotive wire harness assemblies. From tailored wire lengths, pin definitions, and connector configurations to material selection and CAD drawing support, we ensure each product matches your exact requirements. Our rapid prototyping, no MOQ policy, and 100% inspection process guarantee precision, flexibility, and quality throughout production.
Customized Capabilities Services and Processes
Customize your automotive wire harness assembly
At Sino-conn, customization is not just a service—it’s our core strength. From the moment a customer submits an inquiry, our team moves into action to provide tailored solutions for every cable assembly request. We support full customization in:
Customization Capabilities
At Sino-Conn, we understand that no two automotive wiring systems are the same. Vehicle manufacturers and tier-1 suppliers demand highly tailored solutions to fit their specific electrical architecture, mechanical layout, and performance standards. That’s why we’ve built a fully adaptable customization framework that transforms customer concepts into functional, manufacturable harness assemblies with unmatched flexibility.
Our automotive harness customization capabilities include:

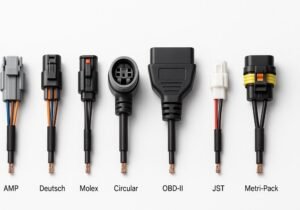

Multi-Brand Connector Integration
We support TE, Molex, Yazaki, Sumitomo, Delphi, JST, and more—original or compatible types—to match global vehicle system designs.
Precision Pinout Mapping
We can implement customer-provided pin assignments, mirrored or inverted mappings, multi-branch logic, and CAN/LIN/EV-specific topologies.
Custom Cable Architecture
From thin-wall low-voltage wiring to high-current battery cables, we engineer single-core, multi-core, twisted pair, shielded, and coaxial layouts based on load, environment, and routing constraints.
Flexible Outer Form Factors
Flat-tape style, corrugated, spiral, or 3D-shaped wire harnesses with pre-bent memory wires, molded branches, or sectional sheathing.
Protective Sheathing Options
Including corrugated tubing, Teflon wrap, braided mesh, heat shrink tubing, EMI shielding fabrics, and multi-layer thermal insulation for engine compartments.
Smart Identification Systems
We support laser marking, hot stamping, QR/barcodes, tag labels, and color sleeves for part tracking, production automation, and aftersales service.
Mounting and Assembly Integration
Built-in clips, grommets, anchors, guides, and junction boxes to match OEM installation fixtures and reduce vehicle assembly time.
By combining in-house CAD development, engineering consultation, rapid prototyping, and zero-MOQ flexibility, we help automotive customers stay agile in new model development, design validation, and system upgrades.
Our Commitment to Outstanding Service
At Sino-Conn, providing exceptional service is as vital as delivering high-quality automotive wire harnesses. We believe that every inquiry deserves prompt, technical, and human-centered support—from first contact to final shipment. Our service system is designed not just to satisfy, but to surprise our customers with how responsive, transparent, and proactive we can be.
Key service features include:
Fast Technical Response
We offer 30-minute CAD drawing turnaround and same-day quotation for standard requests. Engineers are directly involved in pre-sales communication for faster solution validation.
One-on-One Sales Engineer Support
Every customer is assigned a dedicated engineer-level sales manager fluent in both product knowledge and international communication. No script-reading, just real solutions.
Visual Communication Tools
We support real-time video calls, live sample demonstrations, screen sharing for drawing confirmation, and detailed photo documentation throughout production stages.
Flexible Lead Time Management
Samples in 2–3 days, mass production in 7–14 days. For urgent orders, we offer prioritized scheduling and 24/7 production coordination.
Pre-Production Verification System
Every order goes through design review, connector validation, and pre-assembly photos for approval before mass production begins.
Full Lifecycle Document Archiving
Complete drawings, specifications, material certificates, and QC records are saved and traceable for all projects—helping repeat orders or modifications become effortless.
Global Logistics Support
We offer multiple shipping methods (FedEx, DHL, UPS, sea freight), consolidated packaging, and HS-code documentation support for customs clearance.
This is what we mean by service beyond the transaction—because in the automotive industry, reliability starts with trust.
| Items | Alternative | Original |
| Price | Cost sensitive project | Value Oriented Project |
| Lead Time | Delivery within 3-4 weeks | Delivery within 4-8 weeks |
| Performance | Commonly used in consumer Products | Widely used in Commerical and Industrial Field |
client Projects
300+ global clients trust sino-conn’ premium service
Application Scenario: High-Temperature Engine Compartment Wiring in EV Prototypes
“We were developing a new generation of electric vehicles, and the engine compartment wiring was one of the biggest challenges—temperatures were peaking above 140°C, and space was extremely limited. Sino-Conn customized a Teflon-sheathed harness with high-temp silicone insulation and dual-layer EMI shielding. They provided precise CAD diagrams in 24 hours and samples in just 4 days. Their responsiveness and technical knowledge saved us countless hours in trial-and-error. The product passed all thermal cycling and vibration tests—exceptional partner!”
Markus Schneider
Munich, Germany, Senior Automotive R&D Engineer
Application Scenario: Bulk Production of Door Panel Wire Harness for Mid-Segment Cars
“We needed a supplier who could handle 10K+ units monthly, meet ISO standards, and provide on-time delivery. Shenzhen Sino-Conn delivered exactly what we needed—optimized pinout layout, durable nylon braiding, and clean routing solutions for our door panel modules. Their communication via video meetings helped us solve layout issues early. Thanks to their flexibility and zero-MOQ policy, we ramped up production without delay.”
Carlos Rivera
São Paulo, Brazil, Purchasing Manager
Application Scenario: Rapid Prototype Wire Harness for Battery Pack Interconnects
“As a fast-growing startup, we needed prototypes in less than a week—and Sino-Conn delivered in just 3 days. Their team provided detailed drawings, verified connector compatibility, and ensured we met both UL and ROHS compliance. The harnesses worked flawlessly during lab testing. We’re now working with them on production models. Outstanding speed, service, and precision.”
Emily Johnson
Detroit, USA, Project Engineer
industry Application of automotive wire harness assembly
Automotive wire harness assemblies from Sino-Conn are widely used in various vehicle systems, including power distribution, infotainment, lighting, safety, and engine control. Designed to meet industry-specific standards, they are ideal for applications in electric vehicles, commercial trucks, agricultural machinery, and specialized transportation systems, ensuring reliable performance in demanding environments.
Solution 1: High-Current, Thermal-Resistant Wire Harness for EV Battery Modules
Application Scenario: Automotive battery packs in electric vehicles require robust internal wiring solutions to manage high current and high voltage while withstanding thermal cycling.
Equipment & Products: EV battery modules, battery management systems (BMS), thermal sensors, and relay control units.
Industry-Specific Needs:
Need for high-current carrying capacity with minimal voltage drop
Operation under elevated temperatures (up to 150°C) and vibrations
Space-saving routing inside densely packed battery compartments
Flame-retardant, halogen-free materials for safety compliance
Our Solution:
Sino-Conn provides EV battery harnesses designed with XLPE or silicone-insulated high-purity copper wires, reinforced with flame-retardant braided jackets.
Uses customized terminal crimping with ultrasonic welding for superior conductivity and vibration resistance
Multi-point EMI shielding reduces interference with BMS and CAN communication
Compact wire bundle layouts and multi-core integration optimize space
Certified to UL, ISO, and ROHS standards, with traceable lot production
Solution 2：Oil-Resistant & Vibration-Proof Harnesses for Heavy-Duty Trucks
Application Scenario: Diesel engine compartments expose wiring to extreme oil contamination, heat cycles, and constant vibration.
Equipment & Products: Engine control units (ECUs), sensors, fuel injectors.
Industry Pain Points:
- Oil degradation causes traditional PVC jackets to crack within 6 months.
- Vibration fatigue leads to intermittent electrical failures.
- High maintenance costs from frequent replacements.Our Solution:
- Silicone rubber sheathing + aramid fiber reinforcement for oil resistance (IP6K9K rated) and flexible durability.
- Anti-abrasion corrugated conduits at stress points to prevent wear.
- Molded connectors with vibration-damping clips, reducing failure rates by 85%.
solution 3: Precision Wire Harnesses for Autonomous Driving Sensor Networks
Application Scenario: Autonomous vehicles rely on complex networks of sensors such as LiDAR, radar, ultrasonic sensors, and HD cameras. These systems require high-speed data transmission and EMI-resistant connectivity in harsh environments.
Equipment & Products: LiDAR modules, 77GHz radar units, vehicle-mounted cameras, ultrasonic detectors, central AI processors.
Industry-Specific Needs:
High-frequency data transmission with minimal signal loss
EMI protection in mixed signal environments
Flexibility for 3D cable routing around vehicle frame and exterior panels
Compatibility with automotive-grade waterproof connectors
Our Solution:
Sino-Conn provides ultra-flexible multi-core shielded harnesses specifically designed for autonomous driving systems.
Cable assemblies feature aluminum foil + braid dual-layer EMI shielding
Engineered for compatibility with FAKRA, HSD, and TE MATEnet connectors
Flexible routing harnesses designed to follow body curves without stress
All components meet IP67 or higher waterproof ratings for outdoor use
Fully validated with signal integrity testing up to 10 Gbps
solution 4: High-Current Harness Assemblies for EV Battery Packs
Application Scenario: Electric vehicles (EVs) rely on high-power battery packs that must be safely and efficiently connected to inverters, BMS (Battery Management Systems), and power distribution units. These connections must withstand high current, high temperature, and mechanical vibration.
Equipment & Products: Lithium-ion battery modules, BMS units, inverters, fuse boxes, cooling system controllers.
Industry-Specific Needs:
High-current transmission with minimal resistance
Flame-retardant and heat-resistant cable insulation
Secure locking connectors for vibration-prone environments
Custom cable routing through compact battery enclosures
Our Solution:
Shenzhen Sino-conn delivers custom heavy-duty wire harnesses built for new energy vehicles.
Pure copper cables with tin-plated lugs for optimal conductivity
Flame-retardant, halogen-free insulation materials (UL 94V-0 rated)
TE AMP, Yazaki, and Delphi-compatible power connectors
Overmolded terminals for vibration and thermal stability
Custom lengths and cross-sections tailored to each battery system
solution 5: Smart Chassis Systems Wiring Solution
Application Scenario:
As the automotive industry advances toward autonomous and intelligent driving, smart chassis systems become crucial. These systems require highly reliable wire harnesses to support real-time sensor input, actuator control, and adaptive suspension feedback.
Equipment and Products:
ADAS chassis control units, electric steering actuators, ride height sensors, electronic dampers, and power distribution modules.
Industry-Specific Demands:
- Exposure to dynamic vibrations and road impact stresses
- Tight space routing in complex chassis structures
- High EMI shielding requirements due to nearby motor drives and converters
- Long-term reliability in wet, dirty, or salt-exposed environments
Our Solution:
- Use of multi-layer EMI shielding materials, including conductive fabric and aluminum foil
- Harness routing optimization using 3D CAD simulation to fit constrained layouts
- Ruggedized overmolded connectors for waterproofing and mechanical stability
- Integrated strain relief and reinforced jacketing for high vibration resistance
- Salt-spray and dust ingress testing to ensure real-world reliability
solution 6: New Energy Vehicle (NEV) High-Voltage Systems Wiring
Application Scenario:
With the rapid growth of electric vehicles (EVs) and plug-in hybrids, the demand for specialized high-voltage wire harness assemblies has surged. These systems operate at voltages up to 800V and require robust insulation, heat resistance, and safety design.
Equipment and Products:
Battery packs, inverters, DC-DC converters, electric drive units, onboard chargers, and thermal management systems.
Industry-Specific Demands:
- High insulation ratings (up to 1000V) for safety compliance
- Superior heat resistance due to battery and inverter proximity
- Flame retardant and halogen-free materials
- Color-coded and labeled for safety and servicing
- Resistance to chemicals like battery acid or thermal paste
Our Solution:
- Use of XLPE or silicone-insulated high-voltage cables tested to UL 758 / ISO 6722-1
- Double-layer shielding for EMI suppression between power and signal lines
- Integration of safety locking connectors with IP67 sealing
- Flame-retardant, RoHS/REACH compliant jackets
- Custom marking, heat-shrink labels, and color-coded tubing for easy maintenance
- Electrical performance tested up to 1000V DC with partial discharge monitoring
Ask Us About Free Samples
Hey, don’t hesitate to try & feel the FREE SAMPLES before making up your decision
--- A reliable manufacturer with competitive price and Quality Assurance
Price and delivery
Flexible Pricing: Based on connector brand (original or equivalent), cable material, and customization level.
Industry-Based Pricing: Higher for medical, military, and end-users; more competitive for OEM factories, assemblers, and traders.
Regional Price Variations: U.S. and Western Europe have higher pricing; Asia and Eastern Europe are more cost-effective.
No MOQ: Orders start from 1 piece, fully supporting small batch or prototype needs.
Customization Scope: Length, pinout, connector type, materials, and special designs are fully customizable.
Rapid Quotation & Drawing: 30 minutes for technical drawings and price offers, ensuring fast response.
Fast Lead Time: Samples in 3 days; standard bulk production within 2-4 weeks; urgent orders supported.
Certified Quality: UL, ISO, ROHS, REACH, PFAS, COC, COO certifications with 100% full inspection (in-process + final).
Quality Assurance
At Sino-Conn, quality assurance is at the core of our cable assemblies manufacturing process, ensuring every product meets strict international standards and customer specifications.
Comprehensive Inspection: Every assembly undergoes 100% inspection at multiple stages—process inspection, final inspection, and pre-shipment inspection—ensuring flawless product quality.
Certifications: All products are fully certified with UL, ISO, ROHS, REACH, PFAS, COC, and COO, meeting global regulatory and environmental standards.
Detailed Specifications: Each product is manufactured according to precise technical parameters including dimensions, voltage, current, EMI shielding, impedance, flexibility, and resistance to heat, fire, oil, UV, and corrosion.
Accurate Engineering Drawings: We provide CAD to PDF drawings within 30 minutes to 3 days for customer confirmation, guaranteeing accuracy before production.
Material & Connector Authenticity: Both original and equivalent connectors are available, carefully selected to ensure compatibility and performance consistency.
Professional Team: Our engineers and sales team deeply understand product design, materials, production processes, and international market requirements, allowing us to deliver customized solutions with stable and repeatable quality.
Flexible Production Control: From small samples to full-scale production, we maintain consistent quality regardless of order size.
With Sino-Conn’s strict quality assurance system, customers receive highly reliable cable assemblies that perform consistently in demanding applications.
Frequently Asked Questions
Here you’ll find answers to the most frequently asked questions about our customized automotive wire harness assembly services. From product certifications and customization options to order processing and after-sales support, this section covers everything you need to know. If you have a specific inquiry that isn’t listed, feel free to contact our team—we’re available 7 days a week to assist you.
Can you customize the wire harness according to my drawing or sample?
Yes, we support full customization. Just send us your drawing (PDF/CAD) or physical sample. Our engineering team can replicate or optimize it and provide a complete solution within 1–3 days.
What is an automotive wire harness assembly?
An automotive wire harness is a bundled set of cables, connectors, and terminals designed to transmit power and signals within vehicles. It organizes wiring efficiently, ensuring reliability, safety, and ease of installation.
What are lead times for samples and bulk orders?
Samples: 3 days (expedited) or 2 weeks (standard). Bulk: 2 weeks (urgent) or 3-4 weeks (regular), MOQ 1 piece.
What certifications do you have?
Certifications include UL, RoHS, REACH, ISO 13485 (medical), IEC 61754 (industrial). PFAS/COC/COO docs available upon request.
Are connectors original or compatible alternatives?
Both: Original brands (TE/Molex) have longer leads/higher cost; compatibles offer same performance at 30% lower cost with faster delivery.
Can your harnesses resist high temperatures and oils?
Yes. We offer heat-resistant (up to 150°C) and oil-resistant jackets such as XLPE, Teflon, or PVC.
Can your harnesses operate in high-temperature environments?
Yes. With Teflon, silicone, or cross-linked insulation, our harnesses can operate up to 125°C–200°C depending on application.
Are your wire harnesses flame-retardant and halogen-free?
Yes. We offer flame-retardant and halogen-free options that meet automotive safety standards.
What sheath materials do you commonly use?
We offer PVC, LSZH, PE, Teflon (FEP), nylon braid, and armored jackets — each suited for flexibility, flame resistance, temperature, or outdoor performance.
Do you offer waterproof harness options?
Yes. We support IP67/IP68-grade waterproof connectors and overmolding for outdoor or wet areas.
- Our team will answer your inquiries within 12 hours.
- Your information will be kept strictly confidential.
Drop us a line now, and you will get the free sample soon.
We would love to hear about your project and discuss how we can help. To schedule a meeting with our team, simply fill out the form in this section.
- (+86)13924649075
- info@sino-conn.com
- Southeast Industry and Trade Building, #1021 Houhai Avenue, Shekou, Nanshan District, Shenzhen, China
