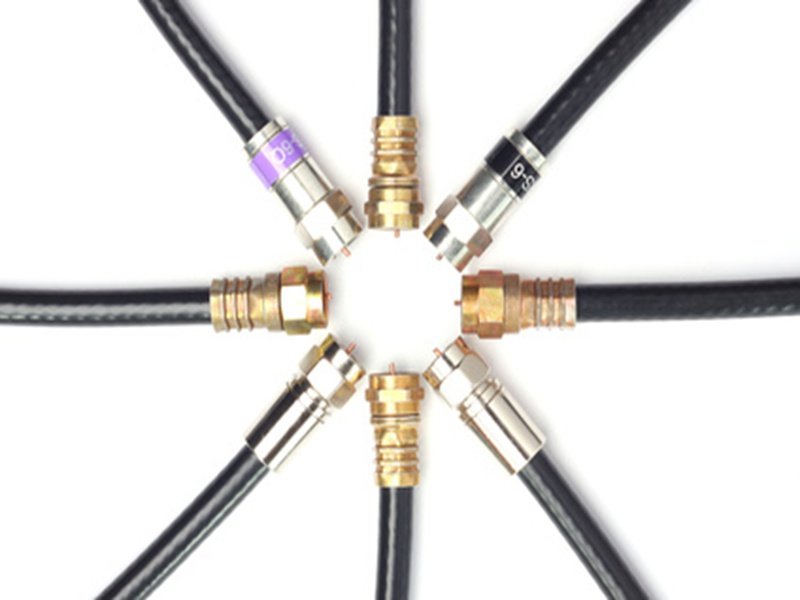

Why RF Cable Assembly Matters in Modern Communication Systems

In a world where 5G, IoT, satellite networks, and high-speed wireless connections define the pace of innovation, the invisible lifeline that keeps it all running is often overlooked: the humble RF cable assembly. Whether you’re streaming a video call, guiding an aircraft, or operating a radar, your system relies on precise and reliable radio frequency transmission. Without high-quality RF cable assemblies, modern communication systems would lose signal integrity, efficiency, and in many cases, safety.

An RF cable assembly is a specialized coaxial cable system designed to transmit high-frequency signals with minimal loss and interference. It is crucial in communication systems such as wireless networks, satellite links, radar, aerospace, and 5G infrastructure. By combining advanced materials, shielding, and custom connectors, RF cable assemblies ensure reliable performance, signal clarity, and adaptability across different industries and harsh environments.

Think about it: when a signal must travel long distances at gigahertz speed, a poorly designed cable could mean dropped connections, distorted measurements, or even mission failure. At Sino-conn, our customers often tell us that switching to the right RF assembly not only solved their technical issues but also reduced downtime and costs. In this article, let’s explore what makes RF cable assemblies so important — and why choosing the right one could redefine how your systems perform.

What is an RF Cable Assembly and How Does It Work?

An RF cable assembly is a ready-made cable solution that combines coaxial cable with RF connectors to transmit radio frequency signals. It works by guiding electromagnetic waves through a central conductor, insulating dielectric, protective shielding, and outer jacket, while minimizing interference and loss.

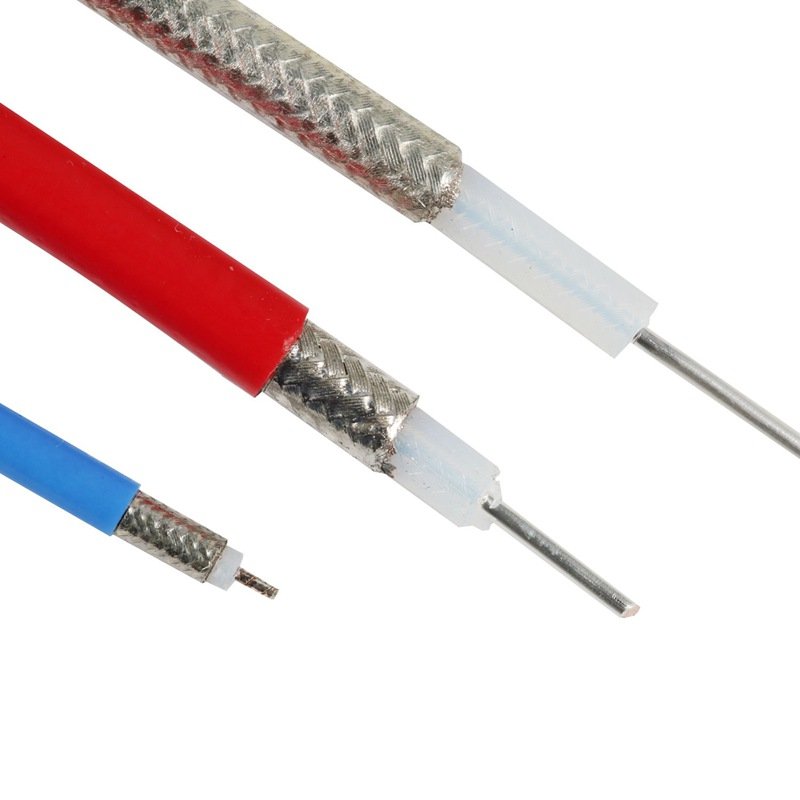

RF cable assemblies may look simple on the outside, but their engineering is critical. They are built on coaxial cable design, consisting of:

• Conductor: Typically copper, sometimes plated with silver or gold to improve conductivity.
• Dielectric layer: Materials like PTFE or polyethylene that insulate and maintain impedance.
• Shielding: Braided copper or foil that blocks electromagnetic interference.
• Jacket: Protective outer covering made of PVC, polyurethane, or FEP for durability.

This layered structure ensures that high-frequency signals, often in the MHz to GHz range, travel with minimal attenuation. Unlike standard electrical cables, RF assemblies maintain consistent impedance (commonly 50 or 75 ohms), preventing signal reflections that could degrade performance.

A critical factor is matching connectors. Assemblies are terminated with SMA, N-type, BNC, or other connectors that ensure compatibility and secure fit. Poor-quality connectors often result in increased VSWR (Voltage Standing Wave Ratio), which directly impacts signal efficiency.

RF assemblies also differ in flexibility. For example:

• Semi-rigid cables are excellent for high-frequency precision but can’t be easily bent.

• Flexible assemblies are used where movement is required, such as in robotics or testing.
• Low-loss cables are designed for long-distance runs where signal degradation is unacceptable.

At Sino-conn, we help clients choose based on their specific use case: whether it’s minimizing loss in a satellite system, ensuring reliability in a 5G tower, or customizing pinouts for OEM integration.

What is a radio frequency cable?

A radio frequency cable is a type of coaxial cable designed to transmit RF signals, typically from MHz to GHz, used in radios, antennas, and communication systems.

What is an RF cable assembly?

An RF cable assembly is a complete, pre-terminated RF cable with connectors, shielding, and insulation optimized to deliver reliable signal transmission in communication systems.

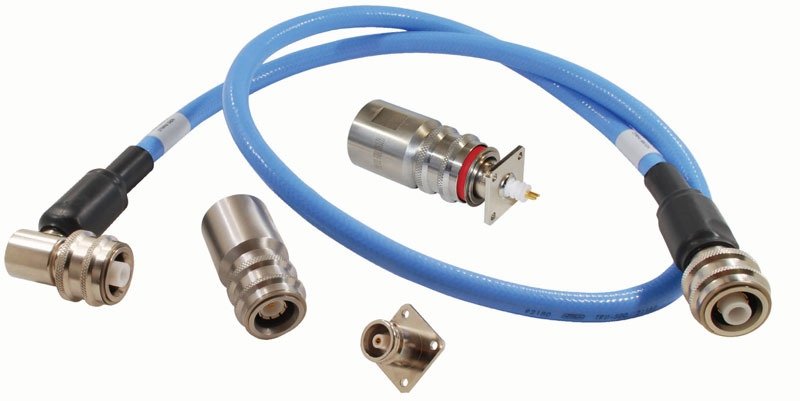

Which Communication Systems Rely Most on RF Cable Assemblies?

RF cable assemblies are widely used in wireless networks, aerospace and satellite systems, radar and defense, and test and measurement equipment where high-frequency transmission is essential.

From your smartphone to a fighter jet, RF assemblies are everywhere:

1. Wireless Networks & 5G Every base station and IoT device needs low-loss RF connections to deliver high data throughput and low latency.
2. Satellite Communication Satellites orbiting Earth depend on RF assemblies that can survive radiation, temperature extremes, and still deliver precise signals.
3. Radar & Defense Military-grade assemblies must resist vibration, extreme weather, and EMI while maintaining clarity for radar imaging and communication.
4. Test & Measurement Equipment Engineers use RF assemblies daily in labs to ensure accurate measurements. A poor cable can make million-dollar equipment unreliable.

Sino-conn has worked with clients across all these sectors, delivering not just cables but also engineering expertise to customize solutions.

Why Are RF Cable Assemblies Critical for Signal Integrity?

RF cable assemblies are critical for signal integrity because they reduce insertion loss, block electromagnetic interference (EMI), and ensure proper impedance matching. This combination guarantees that high-frequency signals remain clear, reliable, and consistent, even in demanding communication systems such as 5G networks, radar, aerospace, and satellite communications.

When communication systems operate at megahertz (MHz) or gigahertz (GHz) frequencies, even the smallest disturbance can distort the signal. Signal integrity refers to the ability of the signal to travel from one point to another without losing its strength, shape, or timing. RF cable assemblies protect this integrity in three key ways:

Let’s take a closer look at each factor in detail:

1. Reducing Insertion Loss
   • Every meter of cable introduces some attenuation. A poorly designed RF assembly may lose up to 5–10 dB over relatively short distances, which can cripple system performance.
   • Low-loss RF cables, such as those using PTFE dielectric and silver-plated copper conductors, typically achieve less than 1 dB loss per meter at 10 GHz. This is why they are essential for 5G towers and satellite ground stations.
2. Shielding Against EMI (Electromagnetic Interference)
   • Modern environments are saturated with RF signals — think of airports, military bases, or even crowded urban centers. Without proper shielding, interference can leak into cables, causing data errors or total signal failure.
   • RF assemblies use double or triple shielding (braid + foil) to block unwanted signals. In defense applications, assemblies may even use EMI-hardened designs with 90–100% shielding effectiveness.
3. Impedance Control & Matching
   • Impedance mismatches create reflections, which cause standing waves (VSWR problems). Even a 10% mismatch can reduce signal power by 20% or more.
   • Quality RF assemblies are manufactured to strict tolerances (50Ω ± 1–2 ohms), ensuring stable performance across frequencies.
4. Case Study Example
   • A European aerospace client of Sino-conn experienced radar data dropouts due to EMI. After switching to Sino-conn’s triple-shielded semi-flexible RF assemblies, test failures dropped by 35% and mission reliability improved significantly.

Key Takeaway:

If your system relies on high-frequency accuracy — from medical imaging to satellite tracking — RF cable assemblies are not optional; they are the backbone of signal reliability and system safety.

How Do Materials and Design Affect Performance?

The choice of conductor, dielectric, shielding, and cable type (flexible, semi-rigid, low-loss) directly impacts RF assembly performance, durability, and frequency handling.

Here, material science meets engineering:

• Copper vs Silver-plated copper: Silver reduces resistance, ideal for GHz frequencies.
• PTFE dielectric: Low dielectric constant, excellent stability.
• Shielding layers: Double or triple shields drastically reduce EMI.
• Jacket types: Polyurethane for flexibility, FEP for chemical resistance.

What kind of cable is used for radio frequency?

Coaxial cables are the most common for radio frequency transmission, offering low loss, shielding, and impedance control for signals up to GHz range.

What is the frequency range of coaxial cable?

Standard coaxial cables typically operate from kHz up to 50 GHz, depending on design, dielectric, and connector type.

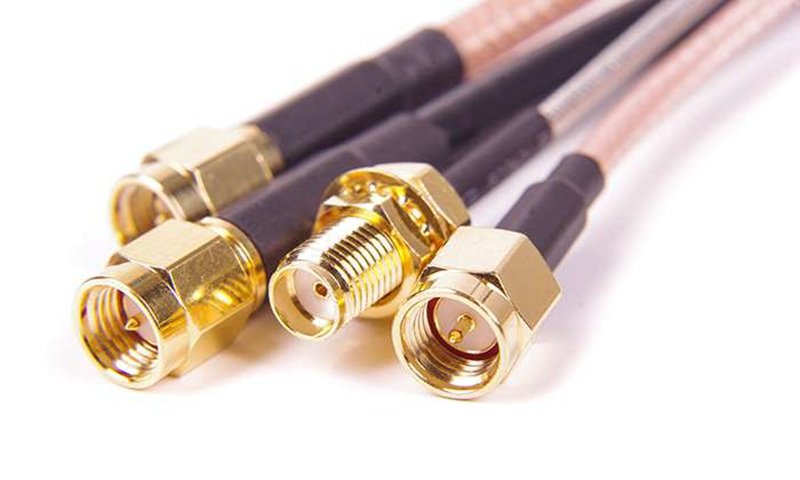

Are All RF Cable Assemblies the Same

No, RF cable assemblies vary by connector type, flexibility, shielding, certifications, and customization level, with each designed for specific performance and cost needs.

Customers often ask: “Aren’t all RF cables the same?” The answer is no. An SMA-terminated lab test cable is vastly different from a ruggedized military one.

Key differences include:

• OEM vs Custom assemblies
• Original vs alternative connectors (price vs availability trade-offs)
• Certifications like UL, RoHS, ISO, REACH — often required for global markets

Sino-conn offers NO MOQ (minimum order quantity), making us flexible for both trade distributors and R&D engineers alike.

How to Choose the Right RF Cable Assembly for Your Needs

Choosing the right RF cable assembly involves evaluating impedance, frequency range, shielding, flexibility, connector type, cost, and lead time. Each factor affects performance and reliability, so the best assembly is one tailored to your exact application, whether for 5G, aerospace, radar, or OEM manufacturing.

Selecting the right RF assembly is not a one-size-fits-all process. The wrong choice can mean excessive cost, delayed projects, or poor performance. Here’s a detailed guide

The following table provides a quick comparison of recommended assemblies for different industries and applications:

1. Define the Electrical Requirements
   • Impedance: Most systems use 50Ω; video/broadcast systems often use 75Ω.
   • Frequency range: Standard coaxial cables work well up to 6 GHz, but specialized designs can handle 18 GHz, 40 GHz, or even 50 GHz.
   • Power handling: High-power radar systems require cables that can dissipate heat without breakdown.
2. Select Shielding & Loss Characteristics
   • For short connections in controlled environments, single shielding may suffice.
   • For long runs, harsh environments, or sensitive systems, double or triple shielding is essential.
   • Choose low-loss cables if insertion loss (measured in dB per meter) is a concern.

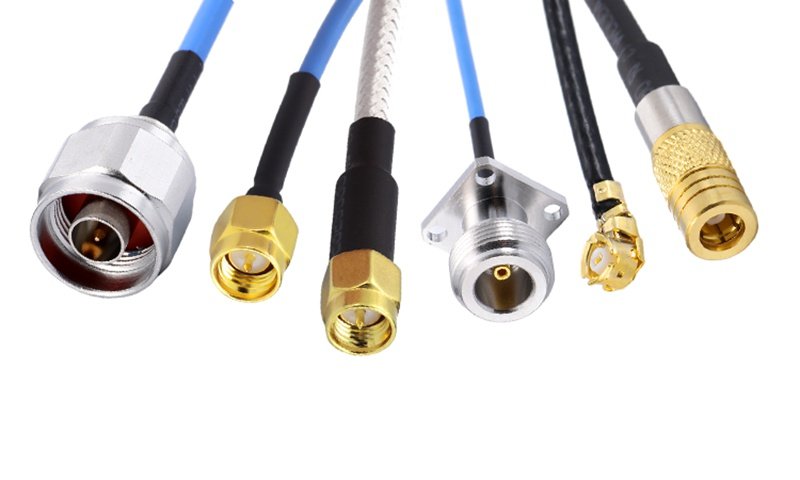

3. Match the Connector Type
   • Common options: SMA, N-type, BNC, TNC, MCX, 2.92mm (K connector).
   • Mismatched connectors can add 1–2 dB of unnecessary loss and reduce reliability.
   • At Sino-conn, customers can choose original brand connectors for top-tier performance or alternative equivalents for cost-sensitive projects.
4. Evaluate Mechanical Requirements
   • Semi-rigid: Best for stable, high-frequency lab setups or aerospace.
   • Semi-flexible: Good balance between precision and limited flexibility.
   • Flexible: For robotic arms, test benches, or systems requiring frequent movement.
5. Consider Cost, Lead Time, and MOQ
   • Sino-conn offers no MOQ (1 piece minimum), which supports engineers during R&D.
   • Typical lead times: 3 days for samples, 2–3 weeks for bulk orders. Urgent cases can be accelerated.
   • Pricing depends on whether the assembly uses premium connectors (higher cost, longer lead time) or compatible alternatives (faster delivery, lower cost).
6. Use a Supplier That Offers Engineering Support
   • Sino-conn provides 3D CAD drawings within 30 minutes so clients can confirm designs before production.
   • This minimizes risk, reduces project delays, and guarantees that what you order is exactly what you need.

Decision Table Example:

This comparison shows that Sino-conn can provide both cost-optimized and high-performance solutions tailored to specific industry needs

Key Takeaway:

The right RF cable assembly is the one designed for your system, not a generic option. By considering performance + environment + budget, and working with Sino-conn’s engineers, you can ensure your communication systems operate with maximum reliability.

Conclusion:

In today’s communication-driven world, signal clarity is non-negotiable. RF cable assemblies ensure reliability from smartphones to satellites. At Sino-conn, we don’t just supply cables — we deliver engineering solutions, speed, and flexibility.

If you’re looking for a custom RF cable assembly that fits your exact design, performance, and certification needs, contact Sino-conn today for a free consultation and quotation.
