In a world where device displays are sharper, faster, and more power-efficient than ever, the invisible heroes are often overlooked — cables. Among them, the LVDS cable 30-pin plays a vital but hidden role in keeping images crisp, data stable, and devices responsive. If you’ve ever opened up a laptop, repaired an industrial display, or upgraded a machine vision camera, you’ve probably seen this compact yet powerful connector quietly doing its job.
LVDS 30-pin cables are primarily used in laptops, industrial monitors, medical imaging displays, embedded systems, and certain cameras to transmit high-speed, low-noise video and control signals while supplying power through a single compact connector. They’re valued for reliability, low EMI, and customization flexibility.
And here’s the thing: not all 30-pin LVDS cables are created equal. Compatibility depends on pinout standards, shielding, length, and connector type — get it wrong, and you risk flickering screens or total signal loss. At Sino-conn, we’ve seen clients struggle with OEM lead times, mismatched pin configurations, and inconsistent quality. We’ve also seen the relief when they find a partner who delivers custom cables in as little as 3 days, no MOQ, and full engineering support.
Stick with me — because I’m going to break down exactly which devices use these cables, why some are moving away from them, and how you can make sure you’re buying (or specifying) the right one every single time. Along the way, I’ll share some insider tips from real engineering projects that might just save you weeks of headaches.
What devices typically use 30-pin LVDS connections
They’re found in laptops, all-in-one PCs, industrial touchscreens, medical monitors, embedded computing systems, and some high-resolution cameras — essentially, any device needing a compact, high-speed display interface.
The LVDS cable 30-pin isn’t just another wire — it’s the data artery that feeds high-quality images from a device’s main control board to its display. Its popularity comes from its compact size, ability to integrate video and power lines, and strong resistance to electrical interference. Here’s how it appears across industries:
| Device Type | Typical Use | Key Technical Specs | Why LVDS Works Best |
|---|---|---|---|
| Laptops & AIO PCs | Motherboard to LCD/LED display | Single/Dual-channel LVDS, 3.3V logic, short harness (<30 cm) | Compact connector, integrates power + video, cost-effective for volume |
| Industrial Touchscreens | Factory HMI, production line monitoring | Shielded twisted pairs, 100 Ω impedance, ruggedized connectors, cable length up to 50 cm | Excellent EMI resistance, stable in high-noise environments |
| Medical Imaging Displays | Ultrasound, patient monitoring, endoscopy | Tight impedance tolerance, halogen-free insulation, flame-retardant jacket | Delivers noise-free imaging, meets strict medical safety regulations |
| Embedded Systems & Kiosks | POS terminals, ATMs, vending machines | Slim harness, combined data + power lines, flexible routing | Saves space, simplifies wiring, reduces installation time |
| Machine Vision Cameras | Robotics, automated inspection systems | Low-latency data lines, precision shielding, high-flex cable design | Supports real-time image transfer with minimal delay |
From Sino-conn’s perspective:
When we look at order history, over 60% of our LVDS 30-pin shipments go to industrial, medical, and embedded applications — not consumer laptops — because these industries value stability over adopting the newest interface.
Which device categories are phasing out 30-pin LVDS?
Modern laptops, tablets, and high-end monitors are shifting to eDP (Embedded DisplayPort) and MIPI interfaces, replacing LVDS for higher bandwidth and thinner designs.
While LVDS remains strong in certain industries, it’s facing planned obsolescence in consumer tech. Since around 2013, major laptop brands like Dell and HP began migrating mid-to-high-end models to eDP, which offers higher resolutions (4K+), lower power consumption at high refresh rates, and simpler cable routing.
Tablets and smartphones, on the other hand, skipped LVDS entirely, moving from proprietary ribbon cables to MIPI DSI for ultra-slim displays. Automotive infotainment is also transitioning to GVIF and automotive-specific Ethernet.
That said, LVDS isn’t “dying” — it’s consolidating into niche markets where long-term availability and stability are more important than bleeding-edge bandwidth. Clients in defense, rail, and factory automation value that a 30-pin LVDS cable can be custom-manufactured and supported for decades without changing form factors.
How do different devices handle 30-pin LVDS pinouts?
Pinouts vary by manufacturer and model — even with 30 pins, signal assignments (JEIDA vs VESA) differ, making correct mapping crucial.
One of the biggest misconceptions among buyers is that “30-pin LVDS is universal.” The reality? It’s not.
Even when connectors look identical, internal wiring can differ significantly, and using the wrong pin mapping can cause anything from washed-out colors to permanent panel damage.
1. JEIDA vs VESA Standards
- VESA Mapping: Common in older laptops; maps the least significant bit differently, slightly altering color rendering.
- JEIDA Mapping: Popular in industrial displays; offers consistent 8-bit or 10-bit color depth for medical imaging. The difference is subtle visually, but in precision imaging, it’s mission-critical.
2. Manufacturer-Specific Custom Pinouts
OEMs in sectors like defense, medical, or automotive often reassign pins for:
- Brightness control voltage lines
- Panel power sequencing (delays to prevent backlight surge damage)
- Status or fault indicator lines These modifications make generic cables incompatible without rewiring.

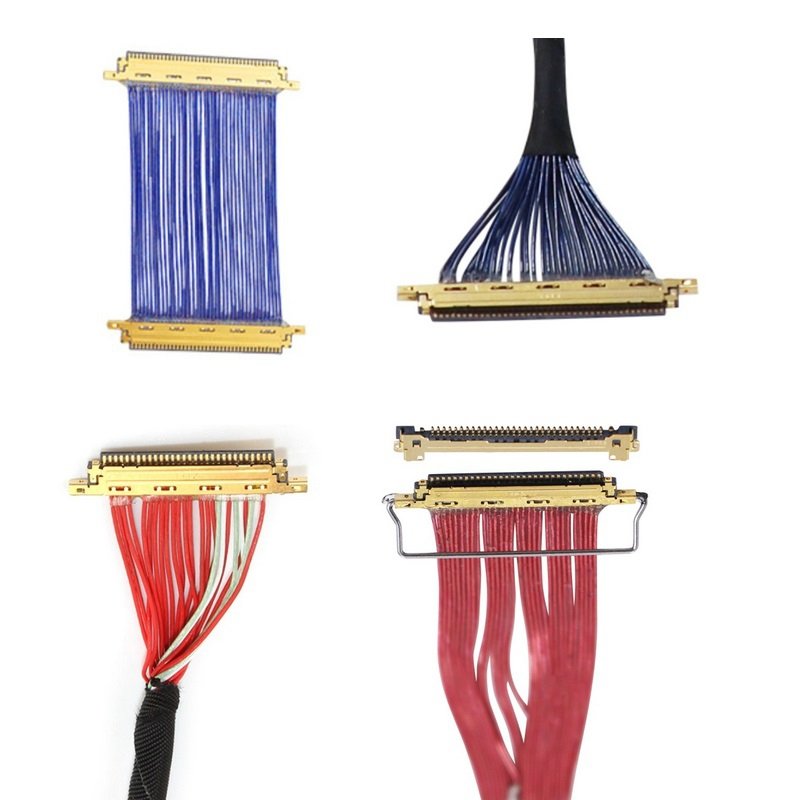

3. Connector Type Variations
Even within “30-pin,” the actual connector series can differ:
- I-PEX 20453 (common in laptops)
- Hirose DF14 (seen in industrial and medical gear)
- JAE FI series (high-vibration resistance) Choosing the wrong connector type can make the cable physically unusable.
4. Cable Build Differences by Application
- Laptop Use: Usually unshielded, shorter length, cost-driven.
- Industrial Use: Shielded, impedance-controlled, often with drain wire.
- Medical Use: Halogen-free, low smoke, flame retardant, with extra shielding.
5. Sino-conn’s Prevention Process
To avoid costly mismatches, we:
- Request exact LCD panel model numbers from customers.
- Cross-reference with manufacturer datasheets to confirm standard.
- Deliver CAD drawings within 30 minutes for urgent requests.
- Offer pinout reconfiguration at no extra MOQ — ideal for prototypes or replacements.
Do all displays accept standard LVDS 30-pin cables?
No — even panels with a 30-pin connector may require unique cable specs, shielding, or length to match the system design.

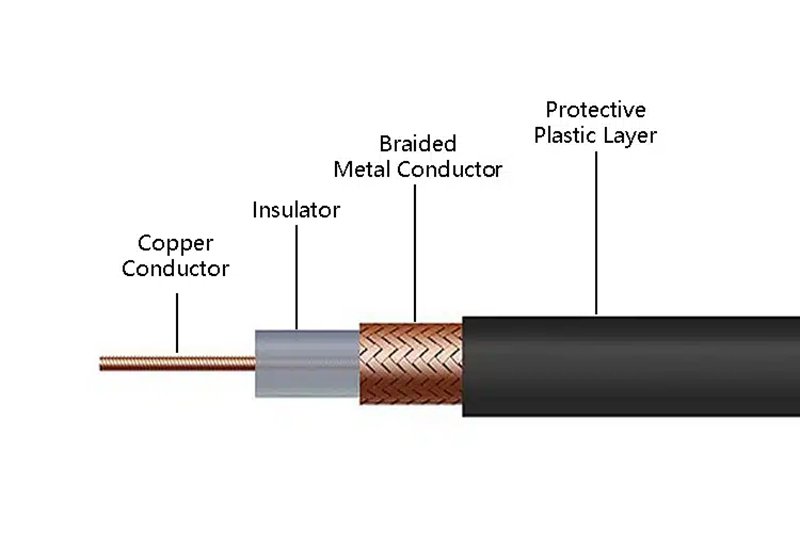

Physical connector size is just one part of the equation. Signal integrity depends on cable impedance (typically 100 Ω), shielding method, and twist pitch of differential pairs. For example, a laptop LVDS cable might be unshielded for cost reasons, while an industrial LVDS cable could have aluminum foil + braided shielding for EMI suppression.
Length also matters — beyond ~50 cm, LVDS signal degradation can cause flicker unless impedance and shielding are optimized. That’s why we recommend factory-matched cables over generic replacements for any mission-critical application.
| Parameter | Typical Value | Industrial Version | Medical Version |
|---|---|---|---|
| Impedance | 100 Ω ± 10% | 100 Ω ± 5% for better signal stability | 100 Ω ± 5% with tighter QC to meet imaging accuracy requirements |
| Shielding | None or basic foil | Aluminum foil + braided copper shield for high EMI environments | Double-layer foil + braid, medical-grade shielding materials |
| Cable Length | < 30 cm | Up to 50 cm with low-loss design | Up to 50 cm with additional anti-microbial outer jacket |
| Insulation | Standard PVC | Halogen-free, oil-resistant PVC or TPE | Halogen-free, low smoke, flame-retardant medical-grade compound |
| Jacket Color | Black or gray | Black, gray, or custom color | White or light gray for medical compliance |
| Operating Temp. | -10 °C to +70 °C | -20 °C to +85 °C | 0 °C to +70 °C with sterilization compatibility |
| Compliance | RoHS | RoHS, UL, REACH | RoHS, UL, ISO 13485, REACH |
Why choose LVDS 30-pin over other interfaces?
It offers a proven, cost-effective, and EMI-resistant solution for medium-resolution displays where stability and longevity matter more than ultra-high bandwidth.
The beauty of LVDS is its balance:
- Speeds up to ~1 Gbps per channel
- Low EMI emissions
- Durability in high-vibration environments
- Backward compatibility with legacy systems
While eDP and MIPI dominate in thin consumer devices, LVDS still excels in industrial, medical, and aerospace contexts where parts availability and predictable performance beat cutting-edge specs.
How to confirm if a device needs a 30-pin LVDS connection?
Check the device’s display specification, pin count, and signaling type — or send the panel model to your supplier for verification.
When in doubt, here’s the fast track:
- Locate the LCD panel model on the back label.
- Search the manufacturer’s datasheet — look for “LVDS 30-pin” in the interface section.
- Confirm whether it’s single-channel or dual-channel LVDS.
- Verify voltage (3.3 V or 5 V logic) and pinout standard.
Sino-conn offers a free verification service where you send us your panel model and we confirm compatibility within 30 minutes — including a custom drawing if needed.
Final Word — Let’s Build Your LVDS Solution
Whether you’re sourcing replacements for a discontinued laptop model, designing an industrial HMI, or prototyping a medical imaging system, getting the right LVDS 30-pin cable is about more than just buying something that “fits.” It’s about ensuring perfect signal integrity, long-term availability, and cost-effective customization.
At Sino-conn, we deliver:
- No MOQ — from 1 piece to 10,000+
- Custom designs in as little as 3 days
- Full certification (UL, ISO, RoHS, REACH, etc.)
- 100% inspection at three stages of production
Send your LVDS cable specs or panel model to Sino-conn today and get a tailored quotation — engineered for your device, your timeline, and your budget.
