In today’s world of ultra-compact electronics, space is king. From smartphones that fit in your pocket to medical devices guiding life-saving procedures, the demand for lightweight yet highly reliable connections has never been greater. This is where flex cables—also known as FPC (Flexible Printed Circuit) or FFC (Flat Flexible Cable)—step into the spotlight. Unlike traditional wiring harnesses that are bulky, rigid, and prone to wear, flex cables offer thin, bendable, and robust electrical connections designed for modern applications.
A flex cable is used to connect electronic components in tight or moving spaces where traditional wiring is impractical. Commonly found in smartphones, laptops, wearables, automotive systems, and medical devices, flex cables save space, reduce weight, and increase reliability. They are designed to bend, fold, or twist without breaking, making them essential in today’s high-performance and compact electronic devices.
But here’s the fascinating part: flex cables don’t just solve space problems. They open doors to entirely new product designs—wearables that wrap around your wrist, foldable laptops, even cars with curved digital dashboards. Imagine your smartwatch seamlessly flexing with every movement or an industrial robot arm bending thousands of times daily without losing electrical performance. That’s the real magic of flex cables.
And just like every good story, the deeper you look, the more layers you’ll uncover. Let’s explore what flex cables are, how they’re used today, and why Sino-conn has become a trusted partner for businesses looking to innovate with these versatile connectors.
What is a Flex Cable and How Does It Work?
A flex cable is a thin, flexible electrical connector made of copper conductors laminated onto a flexible base material such as polyimide or polyester. It works by transmitting signals or power while being able to bend, fold, or move repeatedly without breaking, unlike rigid PCBs or traditional wires.
Flex cables are engineered for environments where space, weight, and durability matter most. Built from layers of copper foil laminated between insulating materials like polyimide (PI), these cables can be manufactured as single-sided, double-sided, or multilayer structures. Some even combine rigid PCB sections with flexible parts (rigid-flex), allowing designers to fold a board into 3D space while maintaining signal integrity.
Typical Flex Cable Construction Parameters
| Component | Material Options | Typical Thickness | Temperature Range | Notes |
|---|---|---|---|---|
| Base Film | Polyimide (PI), Polyester (PET) | 12–50 μm | -40°C to +150°C (PI up to +200°C) | Provides flexibility and insulation |
| Conductor | Rolled Annealed Copper (RA), Electro-Deposited Copper (ED) | 12–70 μm (1/3 oz – 2 oz) | – | Main electrical path, thickness affects current capacity |
| Adhesive Layer | Epoxy, Acrylic | 15–25 μm | Matches base film limits | Bonds copper to base film |
| Coverlay (Protective Film) | Polyimide (PI) with adhesive | 20–50 μm | -40°C to +150°C | Protects circuit from wear, moisture, and shorting |
| Stiffener (Optional) | FR4, Stainless Steel, Polyimide | 0.1–1.0 mm | – | Added for connector area reinforcement |
Compared with bulky harnesses, flex cables eliminate dozens of solder joints and connectors, reducing failure rates and improving reliability. For instance, Apple’s iPhone uses multiple flex cables to connect the screen, cameras, and sensors to the motherboard—components that must survive thousands of folds and micro-movements without losing function.
Engineers value flex cables for their ability to integrate complex routing in small spaces, enabling lighter devices and smarter designs. When designed correctly, they support high-speed signals like MIPI or LVDS, ensuring that modern displays and cameras can transmit data seamlessly.
Which Industries Commonly Use Flex Cables Today?
Flex cables are everywhere, but the industries that depend on them most are those pushing the boundaries of miniaturization, flexibility, and high-performance electronics.
Consumer Electronics – Smartphones, Tablets, and Wearables

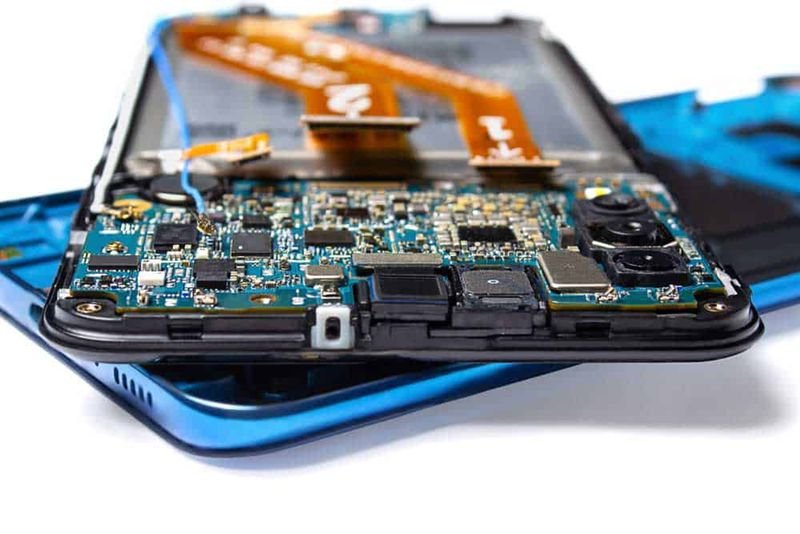

In smartphones, multiple flex cables connect the display, battery, fingerprint sensor, and cameras to the motherboard. Without flex cables, the sleek ultra-thin profile of devices like iPhones or Samsung Galaxy models would not be possible. In wearables, flex cables must be even more compact and withstand thousands of daily movements on the wrist.
Automotive Electronics – Smart and Safer Vehicles

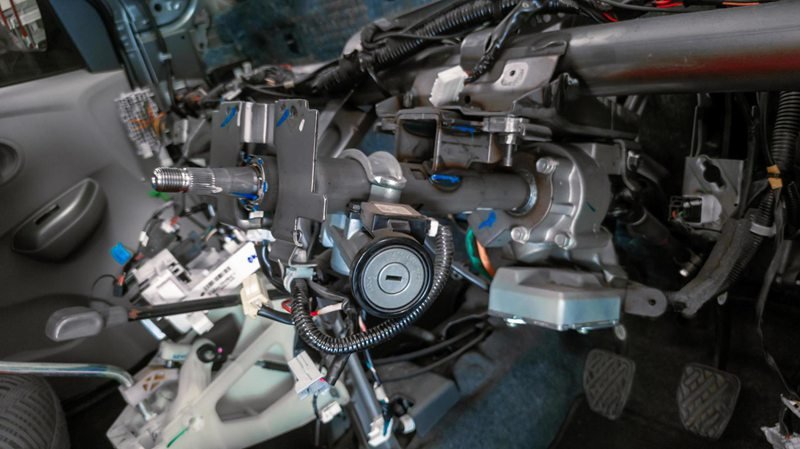

Cars today are computers on wheels. Flex cables are vital for infotainment systems, advanced driver assistance systems (ADAS), cameras, and digital dashboards. They provide vibration resistance, heat endurance, and reliability in harsh environments. With the growth of electric vehicles, demand for EMI-shielded flex cables has increased, ensuring stable signal transmission in high-power systems.
Medical Devices – Lightweight and Reliable Connections
Medical electronics must be small, lightweight, and absolutely reliable. Endoscopes, hearing aids, and implantable devices rely on flex cables that can bend thousands of times without breaking. In surgical robotics, flex cables are used in moving arms where precision and reliability are critical.
Industrial Automation & Robotics – Built for Movement

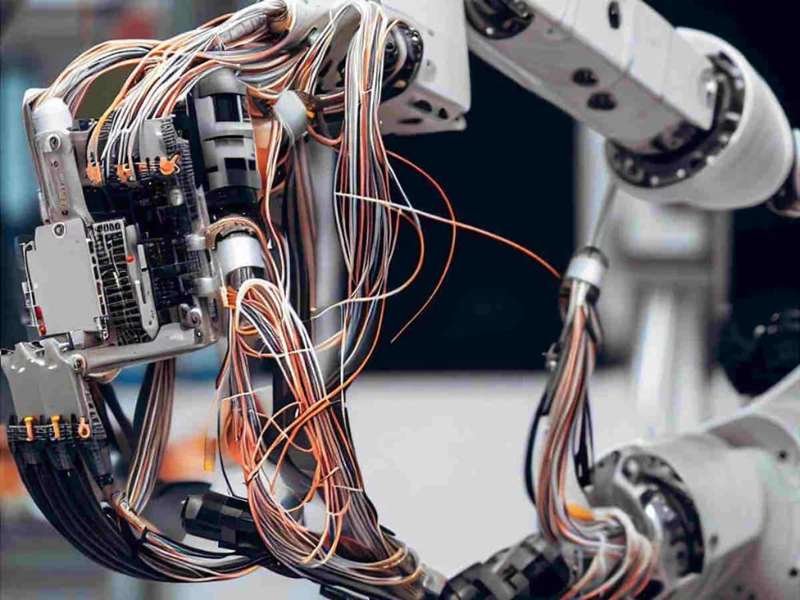

In factories, robotic arms and automated systems bend, twist, and rotate millions of times. Standard wiring would fail quickly, but flex cables are engineered to survive millions of bend cycles, making them ideal for automation, drones, and robotics.
Summary for Buyers: If you’re in consumer electronics, automotive, medical, or industrial robotics, flex cables are no longer optional—they’re essential. Sino-conn provides certified, application-specific flex cables designed to withstand the exact stresses of your industry.
| Industry | Key Requirements | Examples of Applications |
|---|---|---|
| Consumer Electronics | Ultra-thin design, high signal integrity, durability under frequent use | Smartphones, tablets, wearables |
| Automotive Electronics | High temperature resistance, vibration endurance, EMI shielding, long lifespan | Dashboards, ADAS cameras, infotainment systems |
| Medical Devices | Miniaturization, lightweight, biocompatibility, consistent reliability under bending | Endoscopes, hearing aids, surgical robotics |
| Industrial Automation | Millions of bend cycles, mechanical durability, resistance to oils and chemicals | Robotic arms, drones, automated assembly lines |
| Aerospace & Defense | Extreme temperature tolerance, radiation resistance, lightweight but robust | Avionics, satellites, radar systems |
Why Are Flex Cables Essential in Modern Devices?
Flex cables are essential because they save space, reduce device weight, improve reliability, and support high-speed data transmission in compact electronics.
The importance of flex cables lies in their ability to solve multiple design challenges at once:
- Space-saving: They fold and curve around tight corners, allowing more compact designs.
- Weight reduction: A flex cable weighs significantly less than bulky wire harnesses.

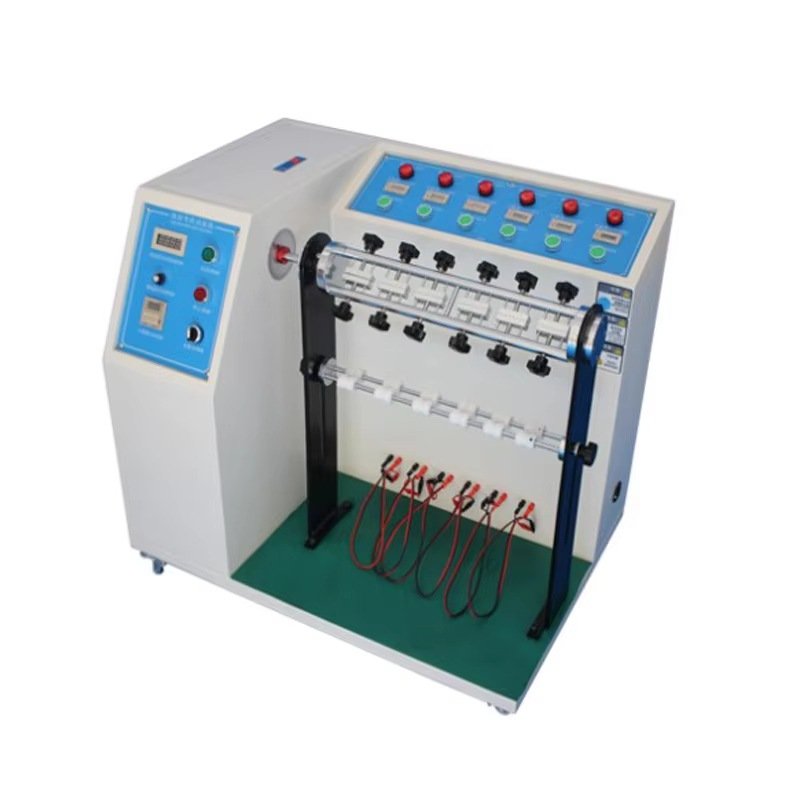

- Durability: Flex cables can survive thousands to millions of bends, ideal for foldable devices and moving parts.
- High-speed compatibility: Designed for stable impedance, they enable fast data connections for modern displays and sensors.
Without flex cables, foldable phones, slim laptops, and wearable health monitors would simply not exist.
How Do Flex Cable Designs Vary by Application?
Flex cable designs vary from single-sided circuits for simple connections to multilayer and rigid-flex configurations for complex, space-constrained devices requiring high-speed data transfer.
- Single-Sided FPC: Low-cost, simple routing.
- Double-Sided FPC: Allows interconnections via plated through-holes.
- Multilayer FPC: Handles complex designs and high-speed signals.
- FFC: Flat flexible cables ideal for displays.
- Rigid-Flex: Combines rigid and flexible sections, used in aerospace and advanced electronics.
What are the different types of flex cables? They can be broadly classified into FPC, FFC, and rigid-flex. Each has its advantages depending on whether you need affordability, density, or structural strength.
Are Flex Cables Cost-Effective and Customizable?
Yes—flex cables are not only cost-effective but also highly customizable, making them one of the most practical solutions for modern product design.
Cost Factors
The price of a flex cable depends on:
- Copper thickness & conductor size – affects current capacity and cost.
- Base material – PI (polyimide) costs more than PET but offers better heat resistance.
- Connector choice – genuine branded connectors (e.g., Molex, Hirose) are more expensive than alternatives, but Sino-conn offers both options.
- Production volume – bulk orders bring costs down significantly.
| Specification | Impact on Price | Notes |
|---|---|---|
| Copper thickness | Higher = more expensive | Needed for high-current cables |
| Base material (PI vs PET) | PI > PET | PI = better durability |
| Connector brand | Genuine > Alternative | OEMs may prefer originals |
| Volume | Large batch = lower cost | MOQ starts from 1 pcs at Sino-conn |
Customization Options at Sino-conn
Sino-conn understands that every customer has unique requirements. We offer:
- Flexible pinouts and layouts – custom-designed according to your schematic.
- Connector choices – genuine or alternative, based on budget and availability.
- Length and shape adjustments – fully tailored to your device geometry.
- Shielding & impedance control – for EMI-sensitive automotive and medical applications.
- Special materials – flame-retardant, oil-resistant, UV-resistant for outdoor or industrial use.
Lead Times and Flexibility
- Samples: Standard in 2 weeks, expedited in 2–3 days.
- Mass production: 3–4 weeks standard, 2 weeks for urgent orders.
- MOQ: No minimum order—Sino-conn supports prototypes, small batches, and full-scale mass production.
Summary for Buyers: Flex cables are not only affordable but also scalable. Whether you need a single prototype in 3 days or a high-volume batch with strict compliance certifications (UL, ISO, RoHS, REACH), Sino-conn delivers both flexibility and reliability.
Conclusion
Flex cables are no longer just a convenience—they are a necessity in modern electronics. From foldable devices to medical innovations, their flexibility, reliability, and adaptability unlock design possibilities that traditional wiring could never achieve.
At Sino-conn, we specialize in custom flex cable assemblies designed around your unique needs—whether it’s faster lead times, cost optimization, or advanced engineering support.
Ready to explore what flex cables can do for your product? Contact Sino-conn today to request a quote or custom design consultation.
