What Is a Pigtail Connector: Types, Uses & Guide

In today’s hyper-connected world, the quality of your cable assemblies often determines the reliability of your entire system. From 5G antennas to medical devices, from automotive wiring to aerospace equipment, the humble pigtail connector has quietly become the unsung hero that ensures signals travel with accuracy and consistency. Yet for many buyers, engineers, and procurement specialists, the question remains: What exactly is a pigtail connector, and why does it matter so much in modern design?

A pigtail connector is a short, pre-terminated length of cable with one end connected to a connector and the other end left open or spliced into another assembly. It allows easy integration of connectors into systems where direct termination is difficult. Pigtails are widely used in RF, fiber optic, electrical, and automotive applications, providing flexibility, reliable performance, and simplified installation in custom cable assemblies.

Think of it this way: if a full cable assembly is a highway, then a pigtail is the carefully engineered on-ramp that lets data, power, or signals flow into the main road without disruptions. In one memorable project, a European telecom company managed to extend the lifespan of thousands of base station units simply by upgrading to shielded coaxial pigtails, saving millions in infrastructure replacement. Stories like these prove that pigtails are more than accessories—they are strategic enablers of performance and cost efficiency. As we dive deeper, we’ll uncover the types of pigtail connectors, their unique benefits, industry applications, installation practices, and sourcing strategies so you can make informed decisions for your business.

What Is a Pigtail Connector and How Does It Work?

A pigtail connector is a short length of cable with a connector pre-installed on one end and open conductors, fibers, or wires on the other. It works as a bridge between a connector interface and a larger cable harness, device, or system. By simplifying splicing, providing flexibility in tight spaces, and maintaining signal integrity, pigtail connectors are widely used in RF, fiber optic, electrical, and automotive systems where direct connector termination is difficult.

At its simplest, a pigtail connector is a connectorized stub cable: one end comes pre-terminated with a specific connector (RF, fiber, or electrical), and the other end is left unterminated (bare wires, optical fibers, or stripped conductors). This design makes it easy to splice, solder, crimp, or fuse into a system where installing a connector directly on the main cable would be impractical, expensive, or unreliable.

Think of it as a transition interface: it allows engineers to connect fragile or high-performance connectors to systems without subjecting the main cable to mechanical stress or bending limitations.

Key Functions of Pigtail Connectors（Why Should You Use Pigtail Connectors?）

1. Space-Saving Design In telecommunications racks or inside automotive dashboards, space is tight. Large connectors can’t always be directly terminated on heavy or stiff cables. A short pigtail allows you to fit the connector exactly where needed without redesigning the entire harness.

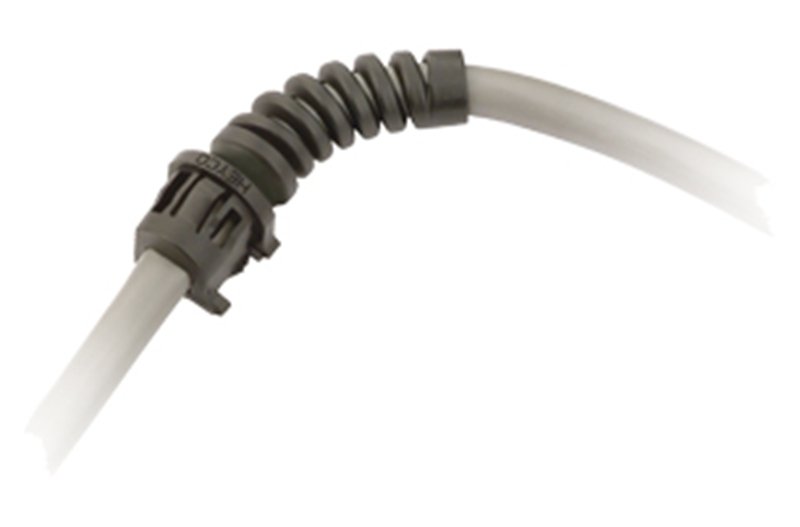

2. Mechanical Stress Relief Long or heavy cables are prone to bending, pulling, or twisting, which can damage terminations. Pigtails isolate the connector from these stresses by acting as a flexible transition point.
3. Improved Signal Integrity Shielded coaxial or twisted-pair pigtails are designed with controlled impedance, which helps prevent EMI (Electromagnetic Interference) or VSWR (Voltage Standing Wave Ratio) mismatches. This is critical in 5G antennas, IoT devices, and satellite systems.
4. Customization & Rapid Prototyping Because pigtails can be manufactured in any length, jacket material, or termination style, they’re ideal for R&D projects and small OEM batches. For instance, an engineer designing a new router may request a batch of 50 custom U.FL to SMA pigtails for testing before scaling production.
5. Lower Cost in the Long Term Instead of scrapping entire harnesses when connectors fail, companies can replace only the pigtails. This modular approach reduces downtime and replacement costs.
6. Compliance & Safety Pre-terminated pigtails are tested and certified (UL, RoHS, REACH, ISO). This guarantees safety and simplifies audits for industries like medical devices and aerospace.

Case Example: An automotive OEM faced frequent connector failures in its engine harnesses due to vibration. By switching to sealed waterproof pigtails, failure rates dropped by 40%, saving millions annually in warranty claims.

How They Work in Different Applications

RF & Coaxial Pigtails

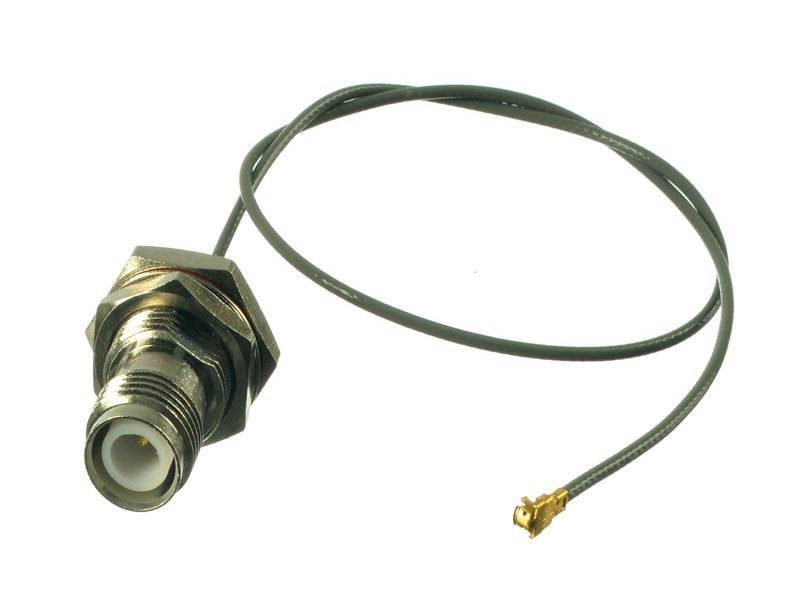

• Example: An SMA connector is attached to a short RG316 cable, while the other end has bare shield and conductor.
• The bare end is soldered to a PCB or larger harness, creating a flexible interface between an antenna and system board.
• Function: Maintains 50Ω impedance and reduces strain on PCB-mounted connectors.

Fiber Optic Pigtails

• Example: An LC/APC connector pre-terminated on one end of a 0.9 mm fiber cable, with the other end cleaved and ready for fusion splicing.
• The bare fiber is spliced into a fiber distribution frame.
• Function: Provides low-loss, low-reflection connections in telecom and data center environments.

Electrical/Automotive Pigtails

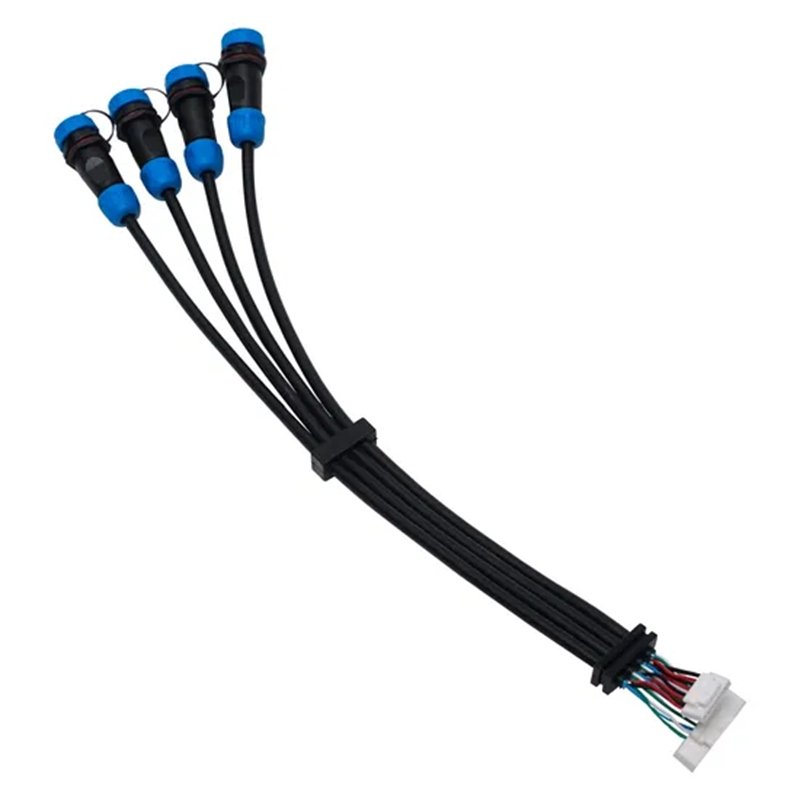

• Example: A sealed automotive housing with 2–6 pins connected to short insulated wires.
• The wires are then soldered or crimped into a larger vehicle wiring harness.
• Function: Provides vibration resistance, environmental sealing, and modular replacement capability.

Why Not Terminate the Main Cable Directly?

Many engineers ask: Why not just attach the connector to the main cable? Here’s why pigtails are preferred in professional assemblies:

• Main cable is too stiff or large → Difficult to terminate directly.
• Connector is fragile or miniature → Easier to pre-terminate on a short flexible stub.
• System requires frequent mating/unmating → Pigtails absorb stress instead of the main cable.
• Industry standards (fiber optics, telecom) mandate fusion splicing instead of direct connectorization for performance reasons.

Comparison: Pigtail vs Patch Cord vs Full Assembly

Which Pigtail Types Exist?

The three main categories of pigtail connectors are RF/coaxial pigtails, fiber optic pigtails, and electrical/automotive pigtails. Each serves unique functions: RF pigtails ensure impedance control in wireless systems, fiber optic pigtails provide low-loss fusion splicing for high-speed networks, and electrical pigtails deliver sealed, reliable power and signal connections in vehicles, industrial systems, and consumer electronics. Their designs vary by connector family, cable type, shielding, and environmental rating, making correct selection essential.

1. RF / Coaxial Pigtails

These are the most familiar type for anyone working in telecommunications, IoT, or wireless electronics.

• Common Connectors: SMA, RP-SMA, MMCX, U.FL/IPEX, N-type, BNC
• Typical Cable Types: RG178, RG316, RG174, semi-rigid coax, micro-coax (1.13 mm, 1.37 mm)
• Applications:
  • Connecting antennas to PCBs in Wi-Fi routers, IoT gateways, and 5G modules
  • Linking GPS/GNSS modules in automotive navigation systems
  • Military and aerospace RF assemblies requiring stable impedance

Spec Snapshot: SMA-to-U.FL Pigtail

Tip: For high-volume consumer products like Wi-Fi dongles, U.FL pigtails are often selected for their miniature size and low cost. For outdoor telecom gear, SMA pigtails with weatherproof gaskets are preferred.

2. Fiber Optic Pigtails

Used in telecom, data centers, FTTH (Fiber-to-the-Home), and medical imaging, fiber optic pigtails enable fusion splicing—the gold standard for optical connectivity.

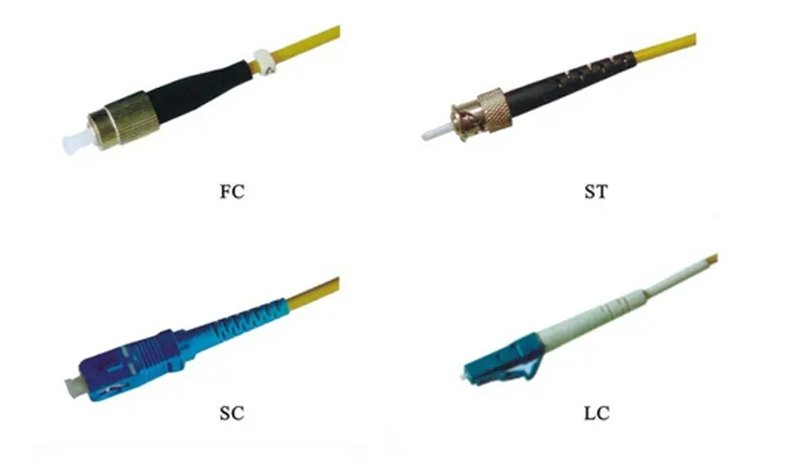

• Common Connector Types: SC, LC, FC, ST

• Polish Options: UPC (Ultra Physical Contact, flat) or APC (Angled Physical Contact, 8° angle to reduce back reflection)
• Applications:
  • FTTH drop cables spliced into optical distribution frames
  • Data center patch panels and racks
  • Endoscopic imaging systems in healthcare

Spec Snapshot: LC/APC Single-Mode Fiber Pigtail

Industry Note: UPC polish is common in enterprise networks, while APC is used in telecom backbones where reflection control is mission-critical.

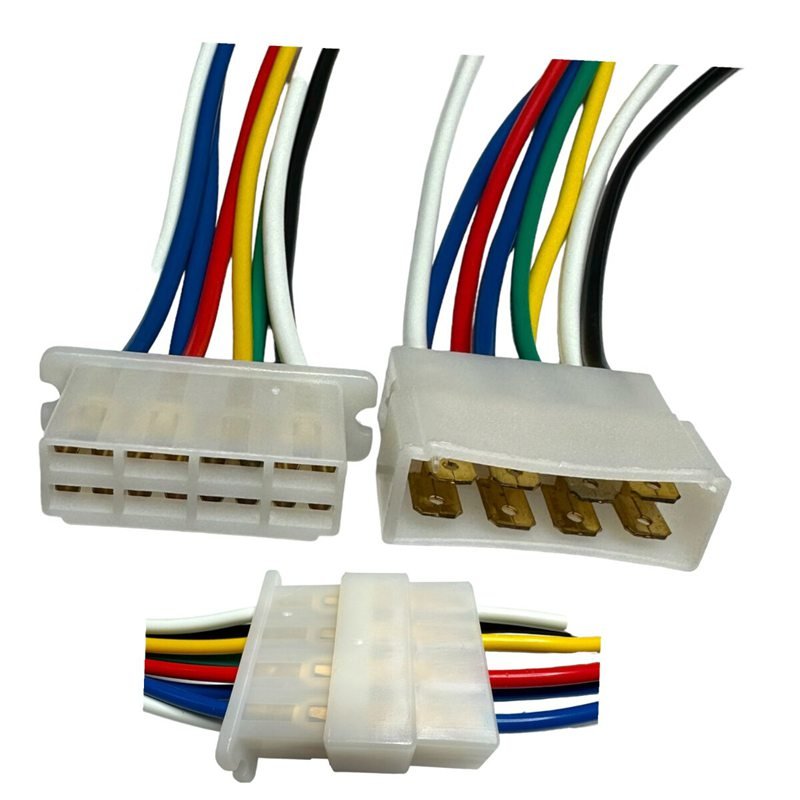

3. Electrical / Automotive Pigtails

These are critical in automotive wiring, industrial machinery, consumer appliances, and robotics.

• Connector Styles: Delphi, Yazaki, Molex, TE Connectivity, Deutsch sealed housings
• Applications:
  • Automotive ECU (Engine Control Unit) harnesses
  • Headlamp and airbag connectors
  • Industrial robotics and automation systems
  • Consumer electronics power and signal wiring

Spec Snapshot: 2-Pin Automotive Sealed Pigtail

Hybrid and Specialized Pigtails

Not all pigtails fit neatly into one category. Specialized industries require hybrids:

• RF + Fiber Pigtails: Used in advanced telecom (RF-over-Fiber systems).
• Power + Signal Pigtails: Automotive harnesses combining CAN bus lines with power wires.
• High-Temperature Pigtails: Aerospace-grade cables rated to +200 °C.

Where Are Pigtail Connectors Used?

Pigtail connectors are used in telecom networks, data centers, automotive wiring, consumer electronics, industrial machinery, aerospace, defense, and medical devices. They bridge connectors with systems where direct termination is difficult, making them essential for RF, fiber optic, and electrical applications. Pigtails ensure reliable performance in high-density, high-vibration, and high-precision environments where flexibility and signal integrity matter.

Pigtail connectors are one of the most widely deployed yet overlooked components in modern connectivity. Their versatility means they show up in nearly every major industry:

1. Telecommunications and Networking

• Fiber optic pigtails are spliced into optical distribution frames in FTTH (Fiber-to-the-Home) deployments.
• RF coaxial pigtails (SMA, MMCX, U.FL) link wireless modules to antennas in routers, repeaters, and IoT gateways.
• Impact: A Tier-1 telecom carrier can save weeks in rollout time by using pre-terminated pigtails instead of direct field terminations.

2. Automotive and Transportation

• Electrical pigtails connect sensors, lighting, and ECU modules inside vehicles.
• Automotive-grade pigtails withstand high temperatures, vibration, oil, and salt.
• Applications: Headlamp harnesses, airbag deployment systems, EV battery modules.
• Case Study: An EV manufacturer improved serviceability by designing wiring looms with modular pigtail sections, reducing assembly line repair time by 30%.

3. Consumer Electronics and IoT Devices

• RF micro-pigtails (U.FL, IPEX) link Wi-Fi, GPS, or 5G modules inside smartphones, drones, and smart home devices.
• Small-scale electrical pigtails connect batteries, displays, and sensors in wearables.
• Benefit: Allows rapid PCB-to-antenna integration without redesigning full boards.

4. Medical Equipment

• Fiber optic pigtails transmit imaging signals in endoscopes and diagnostic equipment.
• Electrical pigtails connect patient monitoring systems where safety and compliance (RoHS, REACH) are non-negotiable.
• Why critical? Medical devices demand zero-failure performance; pre-tested pigtails reduce field risk dramatically.

5. Aerospace and Defense

• High-frequency RF pigtails link radar systems, avionics, and satellite modules.
• Sealed electrical pigtails are used in harsh environments (altitude, temperature swings, EMI).
• Certifications required: UL, ISO9001, AS9100, MIL-STD compliance.
• Example: A defense integrator required SMA pigtails with VSWR ≤ 1.2 up to 6 GHz to meet radar precision needs.

6. Industrial Automation

• Heavy-duty electrical pigtails connect sensors, motors, and control units in manufacturing lines.
• Coaxial pigtails are used in machine vision systems for robotics.
• Challenge solved: Pigtails handle repeated flexing and oil exposure better than rigid harnesses.

How to Use Pigtail Connectors Properly

To use pigtail connectors properly, install them with the right tools, respect bend radius, and follow correct splicing or crimping methods for each type (RF, fiber, or electrical). Always test for continuity, impedance, or insertion loss after installation, and protect the connector with strain relief or sealing. Proper use ensures signal integrity, safety, and long service life in telecom, automotive, industrial, and medical applications.

Using pigtail connectors isn’t just about “plug and play.” Proper installation, testing, and handling are key to unlocking their full performance and avoiding costly downtime.

General Best Practices for All Pigtail Types

• Respect bend radius: Never bend cables tighter than 10× diameter (coax) or 30 mm radius (fiber).

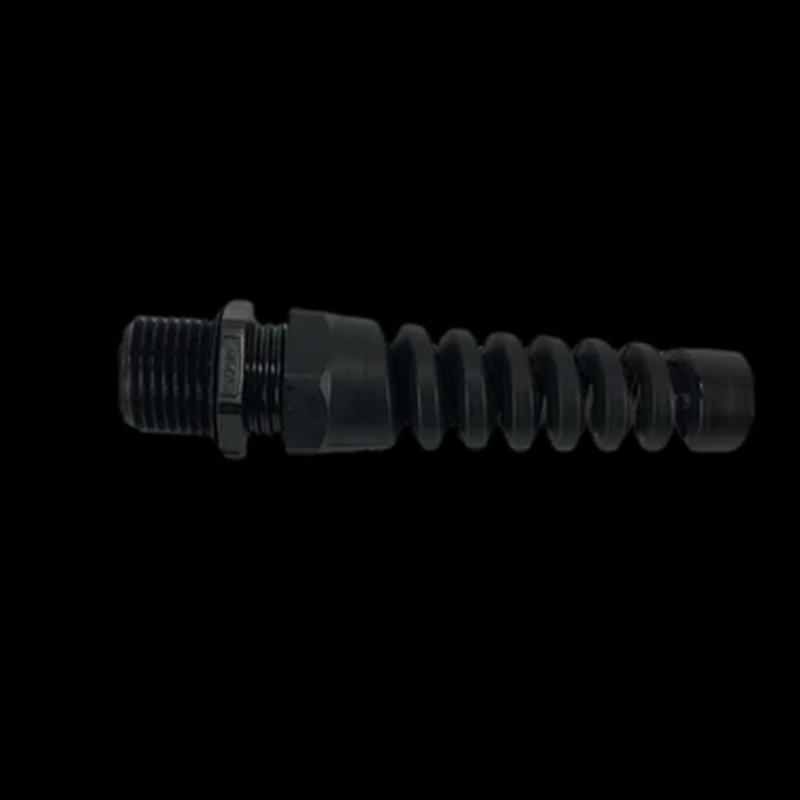

• Strain relief: Use cable ties, clamps, or adhesive mounts to reduce stress on the connector.

• Cleanliness: Keep contact points free of dust, oil, or oxidation before mating.
• Polarity & pinout: Double-check wiring diagrams before splicing or soldering.
• Torque accuracy: Over-tightening RF connectors can damage threads; under-tightening causes high VSWR.

Installing RF / Coaxial Pigtails

RF pigtails are common in wireless systems, routers, antennas, and IoT devices.

Steps to Proper Use:

1. Mount the connector properly – Secure SMA or N connectors with the recommended torque (e.g., 0.6 Nm for SMA).
2. Route carefully – Avoid sharp bends near the connector; maintain impedance stability.
3. Shield continuity – Ensure braid/shield is fully terminated to minimize EMI leakage.
4. Test with VSWR meter or network analyzer – Confirm performance is within spec (e.g., VSWR ≤ 1.3:1).

Example: In a 5G IoT gateway, engineers verified every SMA-to-U.FL pigtail with a sweep test up to 6 GHz to ensure no mismatch losses occurred.

Installing Fiber Optic Pigtails

Fiber optic pigtails are used in telecom racks, data centers, and medical imaging.

Steps to Proper Use:

1. Fusion splice the bare fiber – Use a fusion splicer for low-loss joins (<0.2 dB).
2. Protect the splice – Use heat-shrink protection sleeves and place in splice trays.
3. Clean ferrules – Before mating connectors (LC, SC), clean with lint-free wipes and alcohol.
4. Test with OTDR or power meter – Ensure insertion loss ≤0.3 dB and return loss ≥60 dB (APC polish).

Example: A telecom operator spliced 1,000 LC/APC pigtails in a metropolitan FTTH project. By pre-cleaning ferrules and logging OTDR results, they reduced service call-backs by 40%.

Installing Electrical / Automotive Pigtails

Electrical pigtails are widely used in vehicles, robotics, and consumer devices.

Steps to Proper Use:

1. Match wire gauge – Use connectors rated for the wire AWG (e.g., 18 AWG for lighting circuits).
2. Crimp with proper tools – Avoid pliers; use calibrated crimpers for strong joints.
3. Seal with heat-shrink – Especially for automotive harnesses exposed to vibration, oil, or water.
4. Check polarity & circuit diagrams – Prevent reversed wiring in critical systems.
5. Test for continuity and load – Use a multimeter and, if necessary, load test under real current.

Example: An EV manufacturer installed waterproof IP68 pigtails in its battery packs. Correct crimping and sealing extended service life to 10,000+ mating cycles with zero leakage.

Testing and Certification

• Continuity tests for electrical pigtails ensure no opens/shorts.
• Impedance/VSWR testing validates RF performance.
• Optical insertion loss testing for fiber (≤0.3 dB typical).

Troubleshooting Common Issues

• Weak RF signal? → Check torque and impedance match; replace cheap adapters.
• High optical loss? → Dirty ferrules or micro-bends in fiber.
• Intermittent power? → Poor crimping, broken strands, or unsealed joints..

Environmental Protection

• Use IP67/IP68 sealed pigtails in outdoor or automotive applications.

• Choose jackets rated for flame resistance, oil, UV, or halogen-free per environment.
• Apply protective conduits for under-hood or industrial robotics use.

Documentation & Maintenance

• Label each pigtail at both ends for future servicing.
• Keep a wiring diagram or splice chart for technicians.
• Replace pigtails proactively in high-vibration or high-cycle flex environments.

How to Choose and Source the Right Pigtail

To choose the right pigtail connector, evaluate key specifications like impedance, voltage, shielding, connector type, jacket materials, and compliance certifications. Decide between OEM-original and compatible substitutes based on budget and lead times. Finally, work with a custom cable manufacturer who provides drawings, prototypes, testing, and certifications to ensure the pigtail fits your exact application.

Key Specs to Consider

When evaluating pigtails, focus on performance-critical parameters:

OEM vs Substitute Trade-Offs

• OEM Original Parts (Amphenol, Molex, TE, etc.) Pros: Guaranteed compatibility, brand recognition. Cons: Long lead times, higher prices, less flexible for custom specs.

• Compatible Substitutes Pros: Cost-effective, flexible lead times, often same or better performance. Cons: Must ensure supplier quality/testing is rigorous.

Tip: Many professional buyers choose hybrid strategies: OEM connectors for mission-critical products (aerospace, defense) and substitutes for commercial or consumer electronics where cost and availability matter more.

Working With Custom Manufacturers

A strong manufacturer isn’t just a supplier—they’re a partner in design and compliance.

When sourcing pigtails, ensure your manufacturer provides:

• CAD→PDF drawings before production (within 30 minutes to 3 days).
• Rapid sampling (2–3 days urgent, 2 weeks regular).
• Low or no MOQ (1 pcs start).
• Full testing: continuity, impedance, VSWR, insertion loss.
• Certifications: UL, ISO, RoHS, REACH, PFAS, COC, COO.
• End-to-end QC: in-process, final, pre-shipment inspection.

Case Example: A European medical equipment OEM required fiber optic pigtails with ultra-low insertion loss (<0.2 dB). By working with a custom factory, they secured compliant prototypes in 10 days, scaling to 5,000 pcs monthly within a certified supply chain.

Why Source From Sino-conn?

Sino-conn provides OEM/ODM pigtail connectors with full customization, no MOQ, fast sampling, and international certifications. With 18+ years of cable assembly expertise, we deliver reliable RF, fiber, and electrical pigtails tailored to your exact specs—backed by professional drawings, 100% QC, and competitive pricing for global customers.

Choosing Sino-conn means choosing reliability, speed, and flexibility. Unlike resellers or generic online platforms, we specialize in end-to-end cable assembly manufacturing, from raw material R&D to final inspection.

• 18+ Years of Expertise – Trusted by global OEMs, integrators, and distributors.
• No MOQ – From 1 pcs urgent prototype to mass production.
• Fast Lead Times – 2–3 days for urgent samples, 2 weeks bulk orders.
• Customization Options – Length, pinout, shielding, jacket, connector family.
• Compliance Guaranteed – UL, ISO9001/14001, RoHS, REACH, PFAS, COC, COO.
• Competitive Pricing – Solutions for trade buyers, OEM factories, and end-users.
• Global Support – Video calls, quick drawings, multilingual sales engineers.

Frequently Asked Questions

Q1: What is the difference between a pigtail connector and a wire nut?

A pigtail connector is a pre-terminated cable with a connector on one end and open wires on the other, designed to integrate with devices or harnesses. A wire nut, by contrast, is a simple twist-on cap used to join multiple bare wires together. Pigtails are used for specialized, precise connections; wire nuts are for basic household wiring.

Q2: What are the main advantages of pigtail connectors?

Pigtails reduce cable strain, simplify splicing, and ensure secure, high-performance connections. They are also compliant with international standards (UL, RoHS, ISO) and are widely used in environments where safety and signal reliability are critical, such as telecom, automotive, and medical devices.

Q3: What types of pigtail connectors exist?

The three main types are:

• RF/Coaxial pigtails (e.g., SMA, U.FL) for wireless and IoT devices.
• Fiber optic pigtails (e.g., LC, SC, FC) for telecom and data centers.
• Electrical/Automotive pigtails (multi-pin, sealed) for vehicles, robotics, and industrial systems.

What are the common colors of pigtail connectors or leads?

A: In electrical applications, colors follow convention: black for live/hot, white for neutral, and green for ground. In fiber optics, pigtail jackets may be yellow (single-mode), orange or aqua (multimode). For automotive harnesses, colors vary by manufacturer but are always documented in wiring diagrams.

Are pigtail connectors reusable?

A: It depends on the type. Twist-on and lever-style connectors can sometimes be reused if undamaged. Fiber optic pigtails and crimped automotive pigtails are designed for permanent use and should not be reused to ensure reliability.

How do I know which pigtail connector is right for my application?

A: Check your system’s requirements: impedance for RF, polish type for fiber, voltage/current ratings for electrical. Also consider the environment (temperature, oil, UV, vibration) and compliance standards (UL, REACH, RoHS). When in doubt, request guidance from your supplier.

Can pigtail connectors be customized?

A: Yes. Manufacturers like Szoneier offer full customization including cable length, jacket material, shielding, pinout, connector brand (OEM or compatible), and labeling. This ensures the connector matches your exact design or system requirements.

How are pigtail connectors tested before delivery?

A: Quality suppliers perform 100% inspections: electrical continuity tests, RF impedance/VSWR checks, optical insertion and return loss tests, and environmental stress tests (temperature, vibration, sealing). Certifications like UL, ISO, RoHS, and REACH confirm compliance.

What industries commonly use pigtail connectors?

A: They are widely used in:

• Telecommunications – fiber splicing, RF antenna links.
• Automotive – ECU wiring, lighting systems, EV batteries.
• Aerospace & Defense – radar, avionics, satellites.
• Medical – imaging equipment, patient monitors.
• Industrial Automation – robotics, machine vision, control panels.

What is the typical lead time to order pigtail connectors?

A: Standard sampling usually takes 1–2 weeks, with urgent prototypes available in 2–3 days. Bulk orders typically ship in 3–4 weeks. At Szoneier, there’s no MOQ requirement—you can start from 1 pcs for testing and scale to full production.

Conclusion

At the end of the day, pigtail connectors are not just “short cables”—they are the backbone of modern connectivity. They determine whether your RF link stays stable, your fiber network delivers speed, or your automotive harness survives under-hood conditions. Choosing the right pigtail is both a technical and business decision, balancing performance, compliance, and cost.

**Ready to design or source your pigtail connectors?**Contact Sino-conn today for a free consultation, CAD drawings, and a tailored quotation.
