In today’s fast-moving digital world, the size of the connector can make or break the design of your device. From cameras to smartphones, USB has been the backbone of charging and data transfer for decades. Yet when it comes to Mini-B and Micro-B connectors, confusion often arises: which one is which, what are they used for, and why did Micro-B replace Mini-B? These aren’t just technical details—they affect compatibility, performance, and even cost in your projects.
Mini-B connectors were widely used in early digital cameras, MP3 players, and GPS units, while Micro-B became the default for smartphones, tablets, and portable hard drives. The main difference lies in size, durability, and adoption: Micro-B is smaller, more robust, and supported higher-speed USB 2.0 and later 3.0 standards, while Mini-B has largely been phased out.
Imagine this: you’ve just received a batch of legacy medical devices with Mini-B ports, but your supplier only has Micro-B cables in stock. Will they work together? What options do you have? This article will not only break down the specs, but also give you practical answers to help avoid costly mistakes—and show you why Sino-conn is the partner you can trust for tailored cable assembly solutions.

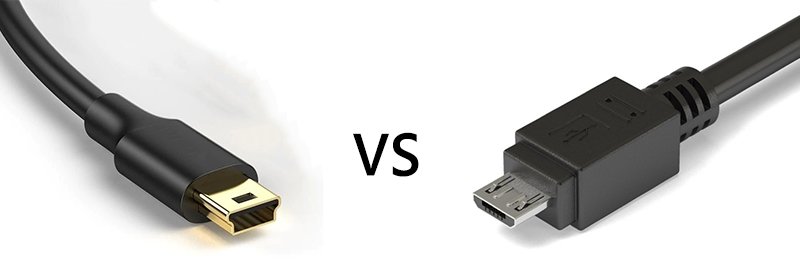

What are Mini-B and Micro-B USB connectors?

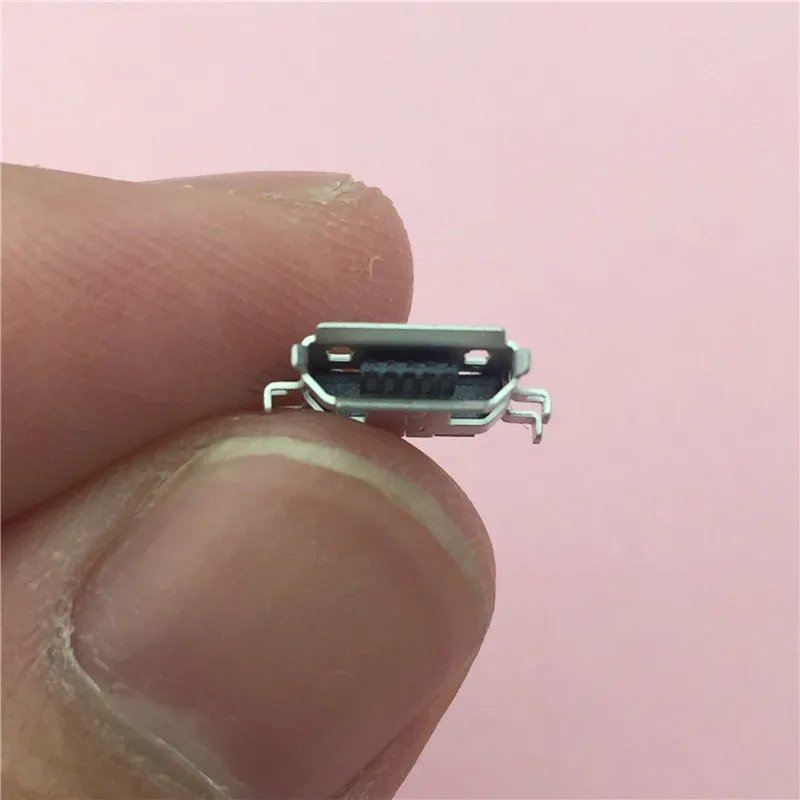

Mini-B and Micro-B are both small USB connector types designed for compact devices. Mini-B appeared first in cameras and MP3 players, while Micro-B evolved later to support thinner devices and higher durability, especially in smartphones and portable storage.
Mini-B, introduced with USB 2.0, features a 5-pin connector that quickly gained popularity in consumer electronics during the early 2000s. Devices like Canon digital cameras or Garmin GPS units relied heavily on Mini-B. However, as electronics got slimmer, Mini-B’s relatively bulkier design became a limitation.
Micro-B answered this need. Slightly smaller and flatter, it provided better insertion longevity (rated for up to 10,000 plug cycles compared to Mini-B’s ~5,000) and was officially adopted as the universal charging standard by organizations such as the USB Implementers Forum (USB-IF).
Both connectors allowed for dual-functionality: charging and data transfer, which reduced the number of cables consumers had to carry. Still, the physical incompatibility between Mini-B and Micro-B caused headaches for users, highlighting the importance of knowing which one you need.
Which materials and designs are used in Mini-B and Micro-B?
Mini-B and Micro-B connectors typically use copper alloy or phosphor bronze contacts with gold or nickel plating, housed in a nickel-plated steel shell, and insulated with high-temperature plastics like PBT or LCP. Cable jackets are made from PVC, TPE, or TPU for flexibility and durability.

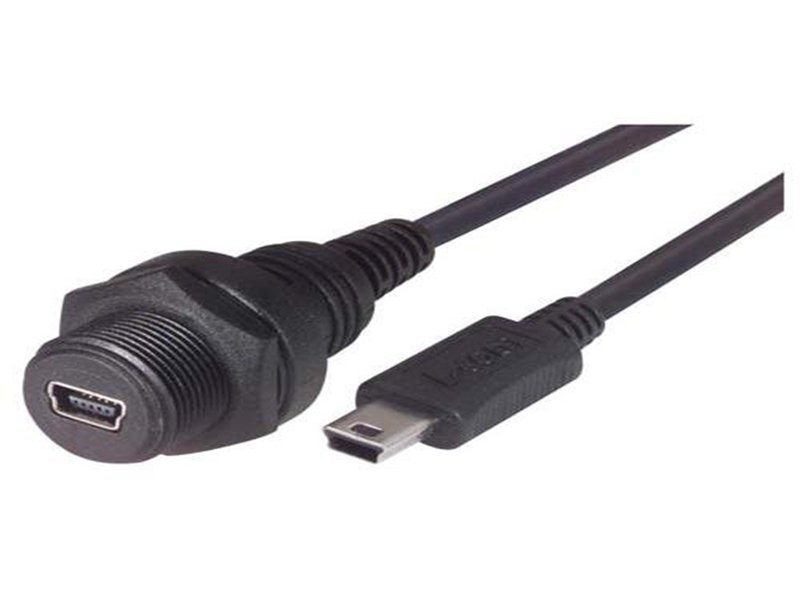

Materials matter for performance and cost. Gold plating, for instance, resists oxidation better than nickel, making it the premium choice for high-reliability applications like medical devices. In industrial environments, connectors often feature over-molded strain relief or even IP67/IP68-rated waterproofing, ensuring protection against dust and moisture.
Different styles include:
- Straight and right-angle connectors for design flexibility
- Reinforced types with screw-locks for vibration-heavy industries like automotive

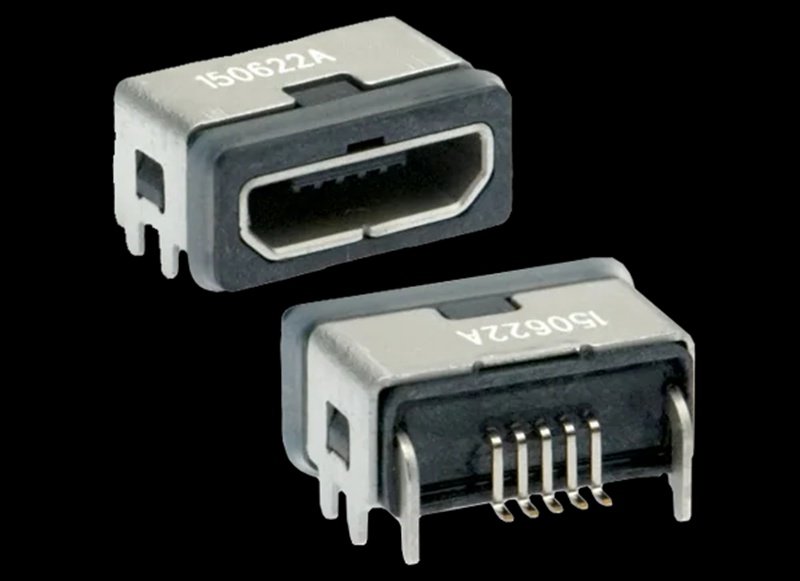

- Waterproof Micro-B for outdoor IoT devices or rugged handhelds
Here’s a quick comparison:
| Feature | Mini-B | Micro-B |
|---|---|---|
| Standard Pins | 5-pin | 5-pin (USB 2.0) / 10-pin (USB 3.0) |
| Durability Cycles | ~5,000 | ~10,000 |
| Size | Larger | Smaller, thinner |
| Common Use | Cameras, MP3, GPS | Smartphones, HDDs, tablets |
| Waterproof Options | Rare | Available (IP67/68) |

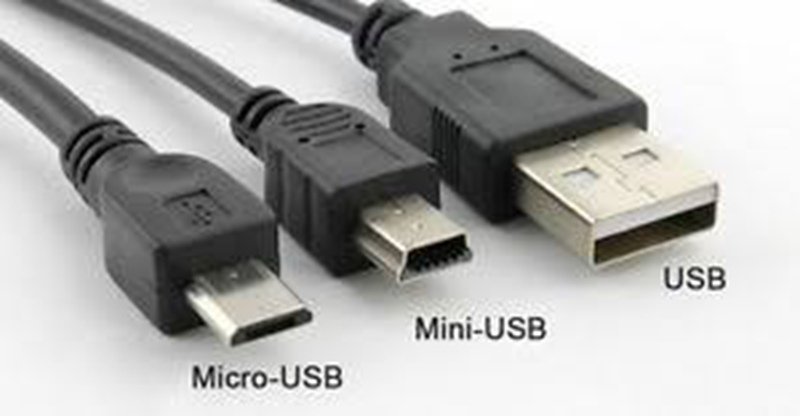

How do Mini-B and Micro-B differ in size, pin layout, and performance?
The main differences between Mini-B and Micro-B lie in size, pin configuration, durability, and data speed. Micro-B is smaller, features more advanced pin layouts, and supports higher durability and faster transfer rates compared to Mini-B.
When engineers or buyers evaluate USB connectors, these four aspects are critical:
Physical Size
- Mini-B: Around 7.5 mm wide, slightly thicker, which limited its adoption in slim devices.
- Micro-B: ~6.85 mm wide, thinner profile, designed specifically for compact mobile electronics.
- Impact: For space-constrained designs (phones, IoT modules, medical handhelds), Micro-B became the default.
Pin Layout
- Mini-B: Always 5-pin (USB 2.0).
- Micro-B: Comes in 5-pin (USB 2.0) and 10-pin (USB 3.0). The 10-pin version supports much faster transfer speeds and extra power channels.
- Impact: Micro-B enabled the launch of USB 3.0 portable hard drives, something Mini-B could never achieve.
Durability / Insertion Cycles
- Mini-B: Typically rated for ~5,000 cycles.
- Micro-B: Rated for ~10,000 cycles (double Mini-B).
- Impact: Daily charging and data usage in smartphones required this upgrade, reducing warranty claims for OEMs.
Performance / Data Speeds
- Mini-B: Limited to USB 2.0 (max 480 Mbps).
- Micro-B: Supports USB 2.0 (480 Mbps) and USB 3.0 (up to 5 Gbps).
- Impact: Critical for faster backups in portable drives and industrial data logging systems.
Quick Comparison Table
| Feature | Mini-B | Micro-B (USB 2.0) | Micro-B (USB 3.0) |
|---|---|---|---|
| Width | ~7.5 mm | ~6.85 mm | ~11.7 mm (dual shell) |
| Pin Count | 5 | 5 | 10 |
| Durability Cycles | ~5,000 | ~10,000 | ~10,000+ |
| Max Data Rate | 480 Mbps | 480 Mbps | 5 Gbps |
| Typical Applications | Cameras, GPS, MP3 | Smartphones, IoT | External HDDs, SSDs |
Buyer’s Tip: If your project needs legacy support (old cameras, GPS), you’ll still need Mini-B. But if you’re designing for data-heavy applications like industrial HDDs or medical imaging systems, Micro-B (especially USB 3.0) is the better choice.
Do Mini-B and Micro-B still matter in today’s devices?
Mini-B has been largely discontinued in mainstream consumer electronics, while Micro-B is still widely used in hard drives, embedded systems, and industrial devices, though USB-C is replacing it.
Mini-B ports are rare today outside of legacy devices. However, industries like medical and industrial still maintain equipment designed around Mini-B, meaning replacement cables are still needed.
Micro-B, while no longer the go-to for new smartphones, continues to dominate external storage devices such as Western Digital and Seagate drives. Many low-cost IoT devices also keep Micro-B for cost reasons, as USB-C components are still more expensive.
This creates an interesting dynamic: demand for Mini-B persists in aftermarket and repair markets, while Micro-B is a cost-saving choice in certain OEM designs.
Are Mini-B and Micro-B interchangeable, and which should you choose?
No, Mini-B and Micro-B are not interchangeable. They have different shapes and pin layouts, so choosing depends on your device’s port. Micro-B is recommended for modern devices, while Mini-B is only relevant for legacy equipment.
Compatibility is the biggest issue. A Mini-B cable cannot be plugged into a Micro-B port, and vice versa. Adapters exist but can create unreliable connections.
When choosing:
- Legacy support → Mini-B for older cameras, GPS units, or instruments
- Modern industrial use → Micro-B for HDDs, embedded controllers, or IoT modules
- Future-proofing → Consider transitioning to USB-C for new product designs
OEM engineers often weigh cost, availability, and lifecycle. Micro-B is cheaper and still widely available, but long-term strategies point toward USB-C adoption.
Who manufactures reliable Mini-B and Micro-B cable assemblies?
While several global brands make Mini-B and Micro-B connectors, Sino-conn is a trusted partner for custom cable assemblies thanks to its flexibility, certifications, and rapid delivery.
The market for USB connectors has two categories:
Global Connector Giants (Molex, Amphenol, TE Connectivity, Hirose)
- Strengths: Standardized parts, brand reputation, global distribution.
- Weaknesses: Higher cost, long lead times, limited flexibility for custom pinouts or non-standard lengths.
Custom Cable Assembly Specialists (like Sino-conn)
- Strengths: High flexibility, can adapt to unique project needs, provide small MOQ, and adjust quickly for urgent orders.
- Weaknesses: Brand recognition lower compared to giants, but service is much closer to project needs.
Comparison: Standard Brands vs Sino-conn
| Factor | Standard Brands | Sino-conn |
|---|---|---|
| Lead Time | 6–8 weeks typical | 2–3 days sample, 2 weeks bulk |
| MOQ | 500–1,000 pcs | No MOQ, start from 1 piece |
| Customization | Limited | Full customization (length, pin-out, materials) |
| Certifications | UL, RoHS | UL, RoHS, REACH, ISO, PFAS-free |
| Pricing Flexibility | Higher | Multiple solutions (original vs alternative connectors) |
Sino-conn Advantages in Detail
- Speed: For urgent projects, samples can be delivered in as fast as 2–3 days, bulk orders in 2 weeks.
- Engineering Support: CAD drawings available within 30 minutes–3 days, always confirmed with the client before production.
- Quality: 100% inspection at three stages (in-process, completion, pre-shipment).
- Certifications: UL, ISO, RoHS, REACH, PFAS, and others ensure compliance with international standards.
- Flexibility: Custom lengths, shielding, waterproofing, or special pin-outs can all be achieved without large-volume commitments.
Buyer’s Tip: If you are an OEM factory, Sino-conn provides competitive pricing and reliable delivery. If you are a trader, Sino-conn can supply both original and alternative parts, giving you flexibility on pricing and lead time.
Conclusion
Mini-B and Micro-B connectors may be small, but the differences have a big impact on device compatibility, durability, and long-term support. While Mini-B has mostly disappeared, Micro-B still plays an important role in external drives and embedded systems, even as USB-C takes the lead.
If you need custom Mini-B or Micro-B cable assemblies, Sino-conn is your trusted partner. With fast lead times, no MOQ, full certifications, and engineering expertise, we make sure you get the exact cable solution you need.
Contact Sino-conn today to request a quote, custom drawings, or samples—and let’s build the right USB solution for your project.
