Shielded vs Unshielded Cable: Differences and Uses Guide

Cables are the unsung heroes of modern electronics and networking. Whether you’re streaming 4K video, running a factory automation line, or powering up an electric vehicle, cables carry the signals and energy that make it all possible. Yet, not all cables are built the same. One of the most common decisions engineers, IT managers, and buyers face is: Should I choose shielded or unshielded cable?

Shielded cables include a protective layer—foil, braid, or both—that blocks electromagnetic interference (EMI), while unshielded cables lack this barrier but are cheaper, lighter, and more flexible. Shielded cables are ideal for high-speed, high-EMI environments, whereas unshielded cables are sufficient for everyday office or consumer applications.

This question goes beyond just “adding a shield or not.” It involves balancing cost, flexibility, compliance, and reliability. Choosing the wrong type can result in network downtime, distorted signals, or even product recalls.

Imagine this: you’re an automotive engineer designing an infotainment system. During testing, the audio keeps crackling every time the engine revs. After weeks of troubleshooting, you realize the unshielded cable was picking up interference from the ignition system. Switching to shielded cables solved the problem instantly. That’s why understanding when and where to use shielded vs unshielded cables can make or break your project.

What Is the Difference Between Shielded and Unshielded Cables?

Shielded cables have a conductive layer (foil or braid) that protects against EMI, ensuring cleaner signals in noisy environments. Unshielded cables lack this shielding, making them cheaper, lighter, and easier to install but more vulnerable to interference. Shielded cables are preferred in factories, automotive, and aerospace, while unshielded cables remain common in homes, offices, and low-noise consumer electronics.

When you strip away the marketing, the real question is: Do you need EMI protection, or is twisted-pair design enough? The answer defines whether you go for shielded or unshielded cabling.

Shielded Cables (STP, FTP, S/FTP, etc.)

Shielded cables include an extra conductive layer (aluminum foil, braided copper, or both) wrapped around individual wire pairs or the overall bundle. This shielding acts like armor:

• It absorbs and redirects EMI away from the conductors.
• It reduces crosstalk between neighboring pairs.
• It ensures signal integrity for high-speed data or sensitive applications.

Common variants include:

• FTP (Foil Twisted Pair): Each pair or the overall bundle is wrapped in foil.
• STP (Shielded Twisted Pair): Uses braided shielding for durability.
• S/FTP: Combines braid + foil for maximum protection.

Pros:

• Excellent EMI resistance.
• Required for 10GbE Ethernet, HDMI, USB 3.x, medical devices, aerospace, automotive infotainment.
• Greater reliability in harsh environments.

Cons:

• Thicker outer diameter.
• Less flexible.
• More expensive.
• Requires shielded connectors and proper grounding.

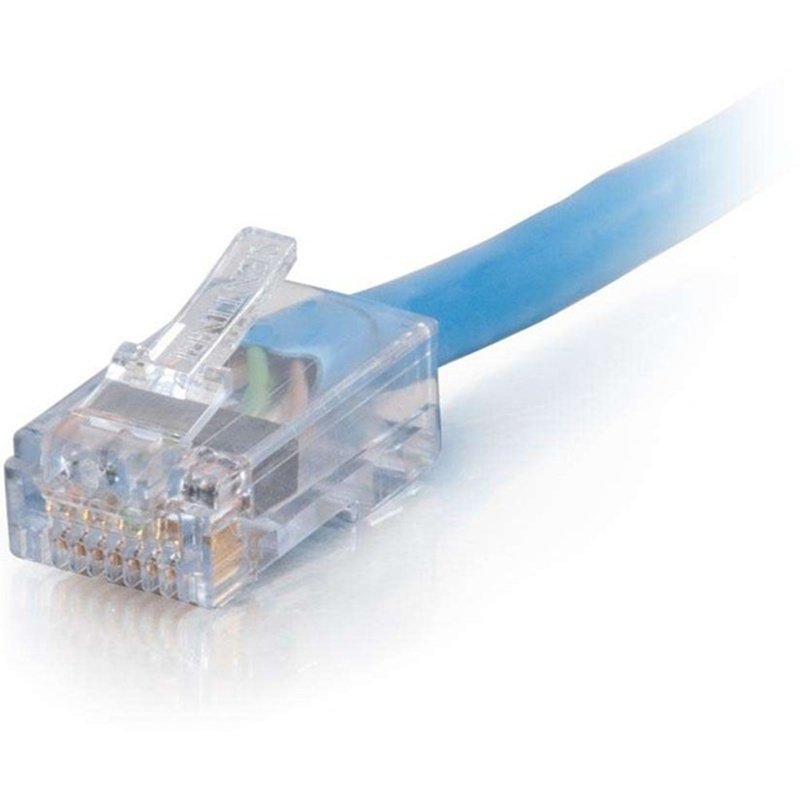

Unshielded Cables (UTP)

Unshielded cables rely only on twisted wire pairs to cancel interference. The twist pattern ensures that external noise affects both conductors equally, minimizing signal disruption.

Pros:

• Thinner, lighter, easier to bend.
• Lower cost → ideal for budget-sensitive projects.
• Easier to install → no need for shield termination or special connectors.

Cons:

• More vulnerable to EMI in industrial, automotive, or high-speed setups.
• Crosstalk may degrade signals at higher frequencies.
• Limited compliance in aerospace/medical industries.

Example: Office vs Factory

• In a corporate office LAN, Cat5e or Cat6 unshielded UTP cables work perfectly. EMI levels are low, data runs are short, and installation is easy.
• In a factory with motors, robotics, and VFDs, unshielded cables often fail EMC tests. Here, shielded Cat6a or Cat7 (S/FTP) ensures reliable 10GbE data transfer.

Comparison Guide: Shielded vs Unshielded Cable

Which Applications Actually Need Shielding?

Shielded cables are required in high-EMI environments like factories with heavy machinery, vehicles with ignition systems, aerospace avionics, and data centers running high-speed networks. They protect against interference, ensuring clean signals for Ethernet, USB, HDMI, and industrial control. Unshielded cables are sufficient in homes, offices, and low-noise consumer electronics. The decision depends on data rate, cable length, and environmental noise.

Electromagnetic interference (EMI) is everywhere, but not every application requires the extra cost and bulk of shielding. The key is to evaluate your operating environment, performance demands, and compliance standards.

How Do I Know If I Need Shielded Cable?

If your cables run alongside power lines, motors, fluorescent lighting, or RF equipment, shielding is almost always required.

Ask these practical questions:

1. Is my environment electrically noisy? (motors, fluorescent lights, radios, welding equipment)
2. Am I running high-speed signals? (>1GbE Ethernet, HDMI, USB 3.x, LVDS, CAN bus)
3. Are my cable runs long? (over 30–50m)
4. Am I in a regulated industry? (medical, aerospace, defense, automotive)

When to Use Unshielded Cable

Unshielded twisted pair (UTP) cables are often sufficient where:

• EMI is minimal (offices, homes, schools).
• Network speeds are ≤1GbE.
• Cable runs are relatively short (<30m).
• Flexibility and low cost matter more than robustness.

Example: A 100-meter Cat6 UTP cable works perfectly for a home or office LAN, delivering stable performance without the extra weight and cost of shielding.

High Data Rates and Long Cable Runs

The faster the data, the more vulnerable it is to interference.

• 10GbE Ethernet: Requires shielded Cat6a or Cat7 (S/FTP).
• HDMI 2.1 (8K video): Shielding ensures clear video over longer lengths.
• USB 3.x: Shielding prevents crosstalk and noise when transferring data at 5–10 Gbps.

Cable Performance vs Data Rate

Industry Use Cases for Shielded Cables

1. Automotive:
   • EMI from ignition, alternators, and infotainment systems.
   • Shielded cables ensure clear audio/video and stable CAN/FlexRay signals.
2. Industrial Factories:
   • Motors, variable frequency drives (VFDs), welding equipment = high EMI.
   • Shielded Ethernet ensures stable PLC (programmable logic controller) communication.
3. Aerospace:
   • Avionics, radar, and communication systems cannot tolerate interference.
   • Weight is a factor, but reliability outweighs cost.
4. Medical Equipment:
   • MRI machines, ultrasound, and patient monitors require noise-free signals.
   • Shielding ensures compliance with FDA/CE EMC standards.

How Does Shielding Work—and Which Types Are Available?

Cable shielding works by surrounding conductors with conductive layers (foil, braid, or both) to block electromagnetic interference (EMI) and radio frequency interference (RFI). Shielding types include foil shields (lightweight, inexpensive), braided shields (durable, flexible), and hybrid shields (foil + braid for maximum protection). The right choice depends on application, frequency, flexibility needs, and cost considerations.

Understanding Cable Shielding

At its core, shielding is like giving your cable a protective jacket of metal armor. Every electronic signal is vulnerable to EMI and RFI — invisible noise that can corrupt data. Shielding prevents noise from either:

1. Getting into the cable (external interference)
2. Leaking out of the cable (cross-talk or emissions)

Think of it like a conversation in a noisy café. Shielded cables are the “noise-canceling headphones” that make sure the conversation stays clear and private.

How Shielding Actually Works

• Electrostatic Shielding: A conductive layer (foil or braid) intercepts electric fields, redirecting them to ground instead of letting them disturb the inner conductors.
• Magnetic Shielding: Braided copper or steel provides resistance against low-frequency magnetic fields (from motors, transformers).
• Ground Path: Most shields include a drain wire (bare or tinned copper) to give interference a direct path to ground.

Key Principle: A shield only works if properly grounded. Poor termination makes even the best shield useless.

Types of Cable Shielding

Now let’s break down the most common shielding options available in networking, audio, automotive, aerospace, and industrial cables:

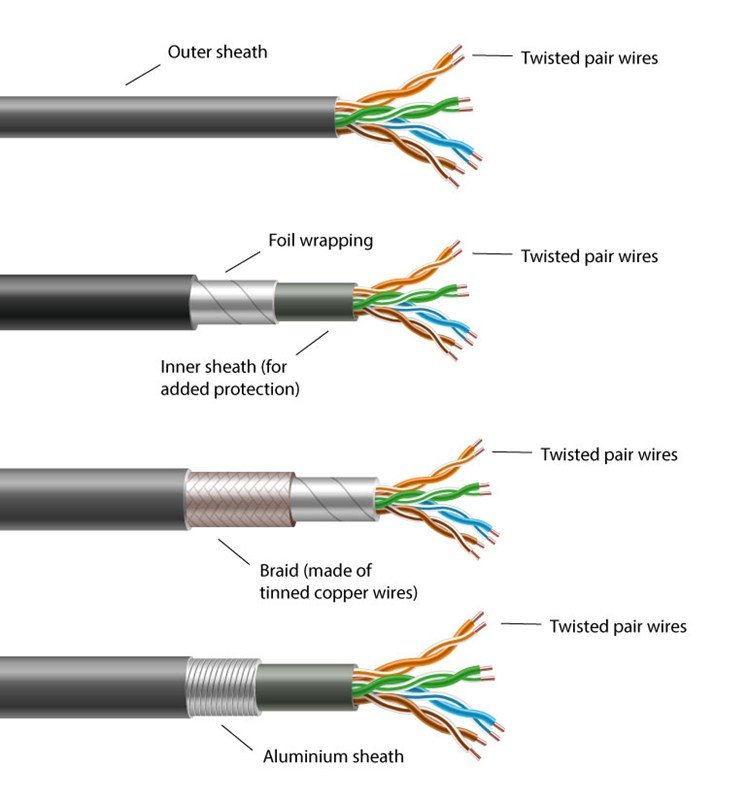

1) Foil Shielding (Aluminum/Mylar Tape)

• Structure: Thin layer of aluminum bonded to polyester (Mylar) film, wrapping 100% of the cable.
• Pros:
  • 100% coverage → excellent against high-frequency EMI/RFI
  • Lightweight and inexpensive
  • Good for Ethernet (FTP), HDMI, USB
• Cons:
  • Brittle, prone to cracking under flexing
  • Provides little protection against low-frequency interference
• Best For: Data cables (Cat6 FTP, USB, HDMI), consumer electronics

2) Braided Shielding (Copper or Tinned Copper Braid)

• Structure: Interwoven copper strands around the cable.
• Pros:
  • Durable, flexible, withstands frequent bending
  • Excellent low-frequency protection
  • Provides grounding and mechanical strength
• Cons:
  • Coverage <100% (typically 70–95%)
  • Heavier and more expensive than foil
• Best For: Audio cables, RF coax, automotive & aerospace cables, industrial Ethernet

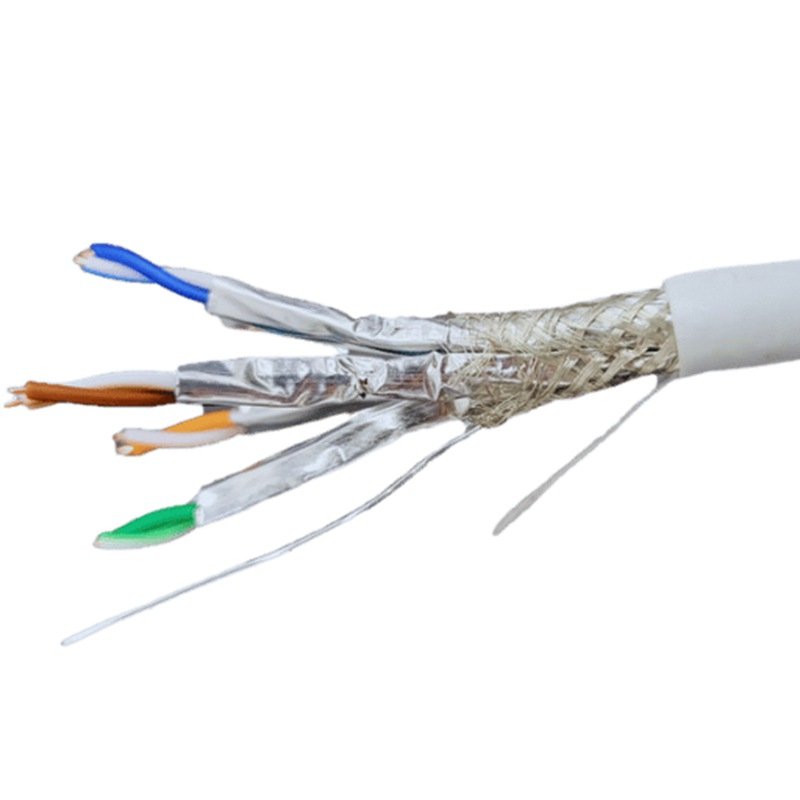

3) Combination Shielding (Foil + Braid)

• Structure: Foil wrap + braided copper over it.
• Pros:
  • Best of both worlds: 100% foil coverage + braid strength
  • Superior performance across full frequency range
  • Industry standard for mission-critical cables

• Cons:
  • Higher cost and bulkier diameter
• Best For: Aerospace, medical imaging, defense, broadcast AV, long-distance Ethernet (Cat7/Cat8)

4) Spiral (Serve) Shielding

• Structure: Copper strands wrapped helically around the conductors.
• Pros:
  • Flexible and lightweight
  • Easy to terminate
• Cons:
  • Gaps between windings → less effective for high-frequency EMI
  • Coverage typically 60–90%
• Best For: Guitar cables, audio equipment, microphones

5) Drain Wire

• Structure: Bare/tinned copper wire running alongside foil shield.
• Purpose: Provides continuous, easy-to-terminate ground connection.
• Note: Often paired with foil, especially in Ethernet and USB cables.

Performance Comparison of Shielding Types

Shielding Effectiveness vs. Characteristics

Shielded vs Unshielded: The Tradeoff

While shielding improves performance, it comes with trade-offs:

• Higher Cost: Shielding can add 20–50% to cable price.
• Larger Diameter: May affect routing in tight spaces.
• Stiffness: Braided and combo shields reduce flexibility.
• Grounding Complexity: Incorrect termination reduces effectiveness.

Which Shielding Type Should You Choose?

If your application is…

• Office/Home LAN: Foil FTP is usually enough.
• Recording Studio: Braided audio cable avoids hum & buzz.
• Automotive Infotainment: Foil + braid for stability under ignition noise.
• Medical Imaging (MRI, Ultrasound): Foil + braid required by EMC standards.
• Aerospace/Defense: Combo shielding with additional armor.
