What Is an IDC Cable Used For in Electronics?

In a world where electronic devices are shrinking and getting smarter, one might overlook the humble wiring that powers it all. Enter the IDC cable—short for Insulation Displacement Connector cable—a compact, efficient, and cost-effective solution that quietly keeps your devices seamlessly connected. From old-school floppy drives to cutting-edge automation panels, IDC cables have long been the silent workhorses of internal electronic wiring.

IDC cables are widely used in internal electronic connections to transmit multiple signals in parallel. They are commonly found in computers, printers, industrial controls, and development boards due to their fast, reliable, and solder-free assembly.

Why does this matter to you? Because the wiring solution you choose isn’t just about making things work—it’s about making them work better. Efficient cabling means faster prototyping, more compact assemblies, and reduced production errors. At Sino-conn, we’ve seen our clients go from prototype to mass production 30% faster just by switching to a customized IDC solution.

Let’s imagine a product engineer under deadline pressure. He’s developing a new wearable device, and his connectors keep failing during thermal testing. One call to Sino-conn later, he receives a custom IDC cable built for tight-space routing and high-temperature resistance—problem solved. That’s the kind of quiet revolution IDC cables bring.

So how do they really work? Why are they better than soldering? Which type do you need for your system? Let’s dive deeper.

What Is an IDC Cable and How Does It Work?

An IDC cable is a flat ribbon cable terminated with connectors that pierce through wire insulation to make contact without stripping or soldering. It simplifies mass production by offering fast, secure, and tool-less electrical connections between components.

IDC stands for Insulation Displacement Connector, a design that eliminates the need to strip wires or solder connections. Instead, the sharp blades inside the IDC connector pierce through the cable insulation to create an electrical contact with the copper wire inside. This approach not only speeds up the wiring process but also reduces the chance of human error during assembly.

An IDC cable is typically made up of two main components:

1. Ribbon Cable – A flat, flexible cable with multiple wires running in parallel.
2. IDC Connector – A plastic connector with metal teeth or blades that cut through insulation.

This design makes IDC cables especially effective in high-volume manufacturing environments, such as PC assembly lines or industrial equipment builds. They can be easily mass-terminated using simple jigs or presses, allowing for consistent, repeatable quality.

Moreover, IDC connections provide good signal integrity for short-distance parallel transmission, making them ideal for data and control signals in embedded systems. With no soldering required, they also reduce the risk of heat damage to sensitive electronic components.

Which Applications Commonly Use IDC Cables?

IDC cables are primarily used in internal device wiring, including computers, industrial control units, development kits, and testing equipment, where quick multi-wire connections are needed.

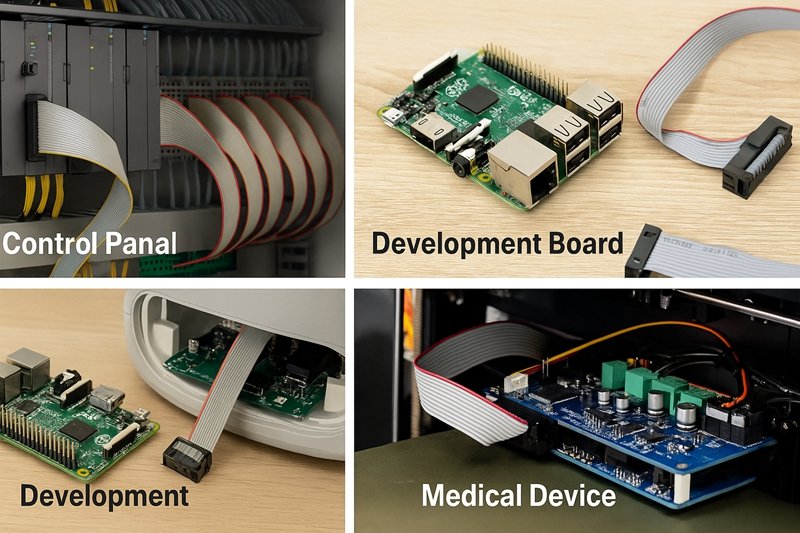

The strength of IDC (Insulation Displacement Connector) cables lies not only in their simplicity but also in their broad applicability across diverse sectors. Let’s break down where and why they are so widely used:

Computers & Consumer Electronics

IDC cables first gained prominence during the era of floppy drives and IDE hard disks. Those wide, gray ribbon cables you may recall from early PCs? Classic IDC. But their relevance didn’t end there. Today, IDC cables are still used in:

• LCD panel backlight wiring
• Signal routing between control boards and input panels
• Power line distribution within modular enclosures
• Button matrix connections for consumer appliances

Their flat structure and easy termination allow them to maintain their place in modern electronics, especially where boards are designed to be modular and easy to assemble.

Industrial Automation and Robotics

In industrial environments, time is money. Machine downtime or wiring complexity can heavily impact production. IDC cables simplify wiring between PLCs (programmable logic controllers), relay boards, sensors, and displays.

For example:

• Connecting 24-channel I/O blocks with 26-pin IDC to terminal adapters
• Compact wiring inside programmable robot controllers
• Signal extension from machine panels to cabinets

Here, the ability to quickly connect multiple signals in a standardized format is invaluable. IDC cables can even be used with screw terminal breakout boards, merging old and new tech.

Development Boards & Engineering Prototypes

No one loves flexibility more than engineers. In R&D environments, you need something that can be connected, disconnected, and reconfigured quickly—without damaging boards or wasting time.

IDC cables are used extensively with:

• GPIO expansions on Raspberry Pi or STM32 kits
• Logic analyzers with 10 or 20-pin headers
• EEPROM programmers and other embedded debug tools
• Breadboard-to-PCB module jumpers

Engineers often choose color-coded ribbon versions for easy signal identification and rework.

Medical & Lab Equipment

Medical devices often require multiple internal modules to communicate precisely and reliably. IDC cables ensure high-reliability, compact interconnections inside equipment like:

• Portable diagnostic machines
• Wearable monitoring devices
• Lab automation platforms

Shielded IDC cables are especially helpful in environments sensitive to EMI (electromagnetic interference).

Test & Measurement Equipment

Devices such as oscilloscopes, logic probes, and signal testers often use IDC connectors for modular test leads or swappable probe headers. Their format allows rapid connection and disconnection during validation or calibration.

IDC cables have evolved from legacy computing into modern prototyping, industrial control, and even healthcare. If your product needs internal wiring that’s fast, space-saving, and easy to install, there’s a high chance IDC cables are the right fit.

Do IDC Cables Solve Specific Wiring Problems?

Yes, IDC cables solve common wiring issues like connection errors, inconsistent soldering, space constraints, and long assembly time by providing standardized, solderless, and compact connections.

Let’s break this down. Traditional wiring methods like manual soldering introduce several problems:

• Human Error – Miswiring or cold solder joints can cause device failures.
• Time-Consuming – Every wire must be stripped and soldered, which isn’t scalable for production.
• Space Constraints – Bulky connectors and loose wiring take up space and cause airflow or thermal issues.

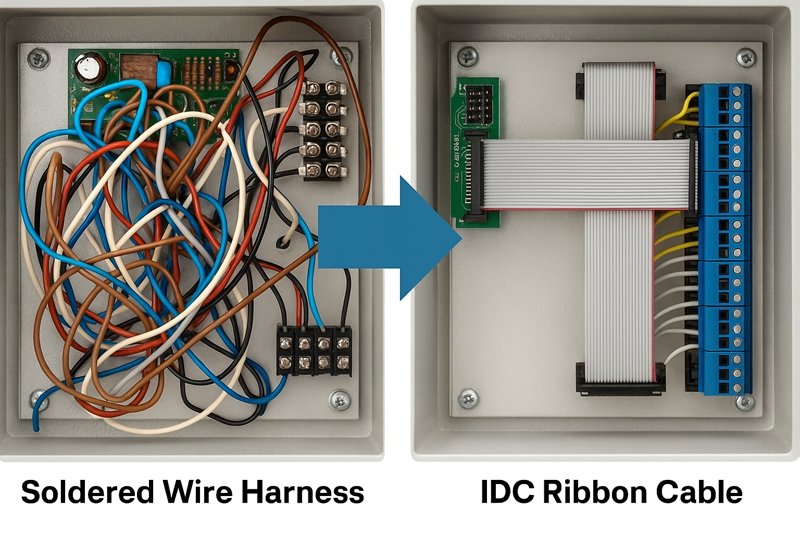

IDC cables address these head-on:

Beyond physical convenience, IDC cables also support design repeatability, allowing manufacturers to implement the same wiring standard across multiple product lines.

Take for example an OEM making POS terminals. The internal layout is dense, and signal integrity is crucial. By switching from individual wires to IDC cables, their failure rate during QA dropped by 45%, and they cut their assembly time per unit by 20%.

Are There Different IDC Cable Types and Configurations?

Yes, IDC cables come in multiple wire counts, connector formats, shielding options, and custom layouts to suit different applications and environments.

IDC cables are not one-size-fits-all. Here’s how they vary:

1. Wire Count and Pitch

Standard options include 6, 10, 14, 20, 26, 34, 40, and 50 conductors, typically on a 1.27mm (0.05″) pitch. This allows you to match the number of signal lines in your design.

2. Connector Options

• Dual-Head IDC – Both ends with IDC connectors, ideal for board-to-board
• IDC to Open-End – One end prepared for soldering or terminal blocks
• IDC to D-Sub/Pin Headers – Interface with legacy ports or breakout boards

3. Cable Types

• Standard Gray Ribbon – Economical and widely used
• Color-Coded Ribbon – Helps identify pin position during debug
• Shielded IDC Cables – EMI protection in noisy environments
• Flexible Ultra-Thin Versions – Ideal for confined spaces

4. Custom Layouts

At Sino-conn, we provide fully customized IDC cables, including:

• Non-standard lengths
• Custom pinouts
• Unique molding or connector styles

How to Choose the Right IDC Cable for Your Application?

To choose the right IDC cable, consider your signal count, connector compatibility, environment (temperature, EMI), mechanical space, and whether custom options are needed.

Choosing the correct IDC cable isn’t just about wire count or connector size—it’s about ensuring performance, safety, compatibility, and cost-efficiency over your product’s lifecycle. Here’s how to get it right:

1. Identify Your Electrical Requirements

• Signal type: Digital I/O? Analog? Mixed-signal? Low-speed or high-frequency?
• Voltage/current ratings: Ensure the wire gauge (typically 28 AWG to 24 AWG) matches your load.
• Signal integrity: For high-speed digital signals, consistent impedance matters. In such cases, tightly controlled pitch (e.g., 1.27mm) and shielding may be necessary.

2. Match the Right Connector and Pin Count

IDC cables come with a wide variety of connector configurations. You must match:

• Pin count (10, 20, 26, 34, etc.) to your device header
• Pitch spacing (commonly 2.54mm or 1.27mm)
• Connector type:
  • Straight or right-angle
  • With or without strain relief
  • Polarized or keyed to avoid reverse connection

OEM vs. Compatible Connectors:

Sino-conn supports both original and replacement connector options. While original parts from brands like TE or Molex are reliable, they’re often expensive and slow to ship. Our compatible options offer near-identical performance, faster lead times, and lower cost.

3. Evaluate Environmental Conditions

• Temperature tolerance: Use PTFE or high-grade PVC for high-heat applications.
• Flexibility needs: For bend-heavy environments (e.g., moving robotics), choose ultra-flexible or flat flex alternatives.
• EMI/EMC protection: Shielded IDC cables with ground traces can reduce signal noise.

4. Consider Customization

Off-the-shelf cables are fine—until they’re not.

At Sino-conn, over 65% of orders involve some customization:

• Cable length tailored to your enclosure design
• Special pinout mappings
• Hybrid connectors (IDC to D-Sub, JST, etc.)
• Unique cable colors for branding or debugging

Need a 9.5-inch 26-pin IDC cable with flipped pinout and EMI shielding? We can deliver in under 2 weeks—with a drawing for customer approval in 24–72 hours.

Choosing the right IDC cable means knowing your application and working with a supplier who can adapt to your specs. Sino-conn doesn’t just sell cables—we solve your interconnect problems with precision and speed.
