Electrical Performance Characteristics of USB Mini-B and Micro-B Interfaces
- andy
In the world of electronics, size, speed, and reliability are no longer luxuries—they’re survival requirements. Whether it’s the smartphone in your pocket or the external hard drive safeguarding terabytes of data, the way devices connect and communicate determines their usefulness. Among the unsung heroes of connectivity are the Mini-B and Micro-B USB interfaces. Though small in size, these connectors have powered an entire era of digital growth.
USB Mini-B and Micro-B interfaces differ in size, durability, and speed. Mini-B, larger and older, supports USB 2.0 up to 480 Mbps and about 5,000 insertion cycles. Micro-B, smaller and thinner, supports the same speed but lasts up to 10,000 cycles and includes USB 3.0 versions with 5 Gbps data rates. These connectors ensure compact design, reliable power delivery, and stable data transfer for consumer and industrial devices.
Think of the Mini-B as the workhorse of early digital cameras and MP3 players, while the Micro-B became the lifeline of smartphones and portable drives. Yet the story doesn’t end here. Understanding the electrical performance characteristics of these connectors is key to selecting the right solution for reliability, safety, and cost-effectiveness. In this article, we’ll explore voltage ratings, materials, durability, applications, and the bigger question—how legacy connectors like Mini-B and Micro-B continue to shape today’s electronics. Stick with us, and you’ll see why Sino-conn remains a trusted supplier in this evolving landscape.
Key Electrical Specifications of Mini-B vs Micro-B
Mini-B and Micro-B USB connectors share similar voltage ratings (5V) but differ in current capacity, data speeds, and longevity. Mini-B supports 480 Mbps transfer and ~5,000 cycles, while Micro-B supports the same speed with up to 10,000 cycles and an advanced USB 3.0 option offering 5 Gbps.

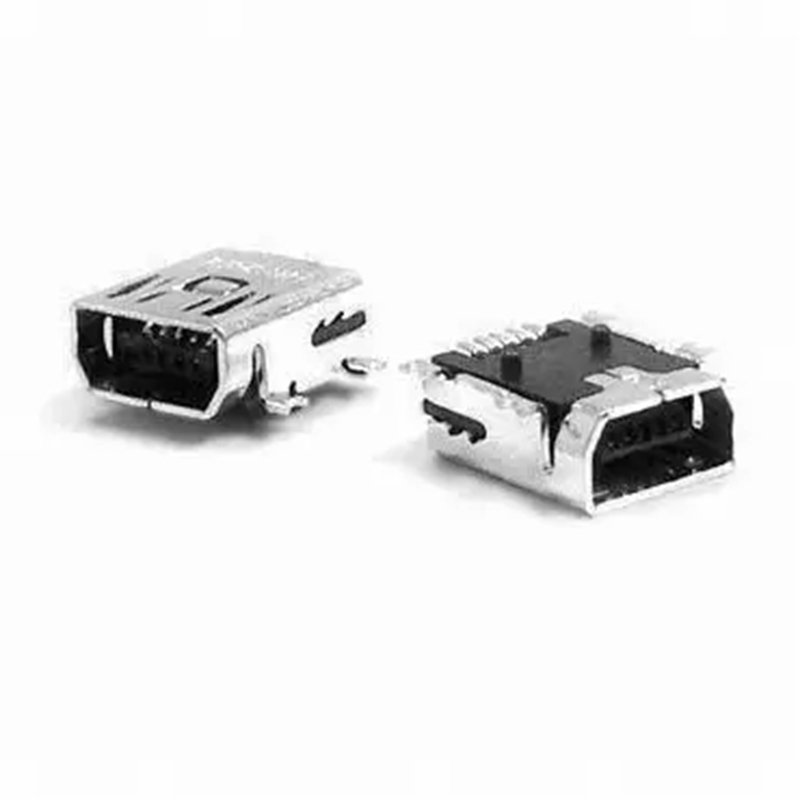

From an electrical perspective, the specifications of these connectors determine how safely and efficiently they move both power and data. Mini-B connectors were designed in the early 2000s with USB 2.0 standards in mind, giving consumers reliable 480 Mbps performance—sufficient for MP3 players and compact cameras. However, as devices became thinner and demanded higher durability, Micro-B was introduced.
- Voltage & Current: Both operate at a 5V standard, but Micro-B can handle higher currents (up to 2A), enabling faster charging.
- Data Transfer: While Mini-B tops at USB 2.0, Micro-B evolved to USB 3.0 with 5 Gbps capability—critical for external hard drives.
- Durability: Micro-B’s 10,000-cycle lifespan doubles that of Mini-B, reducing failure risk.
- Compatibility: Mini-B is now legacy, while Micro-B remains in use, though gradually replaced by USB-C.
For engineers and OEMs, these numbers aren’t trivial—they define whether a connector can meet compliance standards, support demanding applications, and withstand real-world usage without costly downtime.
Comparison of Electrical Specifications
| Parameter | USB Mini-B | USB Micro-B (USB 2.0) | USB Micro-B (USB 3.0) |
|---|---|---|---|
| Voltage Rating | 5V | 5V | 5V |
| Max Current | 500 mA | 2 A | 2 A |
| Data Rate | 480 Mbps | 480 Mbps | 5 Gbps |
| Contact Resistance | ≤ 30 mΩ | ≤ 30 mΩ | ≤ 30 mΩ |
| Impedance | 90 Ω ± 10% | 90 Ω ± 10% | 90 Ω ± 10% |
Material and Design Factors Affecting Performance
The electrical performance of Mini-B and Micro-B depends heavily on materials: copper alloy contacts with gold or tin plating for conductivity, durable plastics like PBT or LCP for insulation, and EMI shielding for signal integrity.
Electrical reliability doesn’t just come from design—it’s deeply rooted in the materials used:
- Contacts: Copper alloy ensures conductivity, with gold plating enhancing corrosion resistance.
- Housing: Thermoplastics such as LCP and PBT resist heat, wear, and mechanical stress.
- Shielding: Proper EMI shielding protects sensitive data signals from interference in industrial or automotive environments.
Sino-conn takes these details seriously. For example, clients often ask whether their cables can withstand oil, UV, or halogen-free environments. Our engineering team tailors materials accordingly, offering flame-retardant jackets, anti-corrosive plating, or flexible overmolds. By controlling each element of material science, the connectors perform consistently across thousands of cycles and in harsh environments.
Materials and Functions in Mini-B / Micro-B
| Component | Common Material | Function in Performance | Sino-conn Enhancement |
|---|---|---|---|
| Contact Pins | Copper alloy + gold/tin plating | Conductivity, corrosion resistance | Custom plating thickness options |
| Housing | LCP, PBT, Nylon | Heat & wear resistance | Automotive-grade polymers |
| Shielding Layer | Aluminum foil + braided copper | EMI protection | Multi-layer shielding |
| Insulation | PVC, TPU, Halogen-free | Electrical isolation | Flame-retardant halogen-free TPU |
| Strain Relief | Thermoplastic overmold | Mechanical flexibility | Custom overmold designs |
Reliability and Durability in Electrical Performance
Mini-B lasts about 5,000 insertion cycles, while Micro-B achieves 10,000. Performance reliability is further influenced by heat resistance, flexibility, and stress testing to ensure long-term safety.
USB Mini-B connectors are rated for around 5,000 insertion cycles, while Micro-B doubles that with up to 10,000. Reliability is further defined by heat resistance, flame safety, bending flexibility, and strict electrical testing. These factors ensure stable data transfer and charging performance across consumer, automotive, and industrial applications.
For many customers, reliability is the real deciding factor. A connector can meet electrical specs on paper, but if it fails after a few months of use, the cost of replacement, downtime, and customer dissatisfaction is far higher. Sino-conn invests heavily in durability testing to guarantee consistent performance.
1. Insertion and Withdrawal Cycles
- Mini-B: ~5,000 cycles before contact wear becomes a risk.
- Micro-B: ~10,000 cycles thanks to improved design and thinner contacts.
- USB-C: The successor, supports 20,000+ cycles, but Mini-B and Micro-B remain essential for legacy devices.
2. Thermal and Flame Resistance
- Mini-B and Micro-B housings use thermoplastics (LCP, PBT) tested to withstand high soldering temperatures (>260°C).
- Cables can be specified to meet UL94 V-0 flame rating, required in many automotive and industrial applications.
3. Flexibility and Mechanical Stress
- Bend radius testing simulates repeated cable bending. A standard Micro-B cable survives >5,000 bends at 180° without signal loss.
- Tensile tests ensure strain reliefs prevent cable detachment when pulled.
4. Environmental Reliability
- Vibration testing (common in automotive navigation systems) ensures stable data transfer.
- Humidity & corrosion tests check gold/tin plating durability under 85°C and 85% RH.
- Oil/UV resistance available for outdoor and industrial environments.
5. Testing and Quality Control at Sino-conn
Sino-conn enforces a 3-stage inspection process:
- In-process inspection (monitoring during assembly)
- End-of-line inspection (100% testing of electrical continuity, resistance, shielding)
- Pre-shipment final inspection (appearance, labeling, compliance with UL, RoHS, REACH)
This ensures every cable that leaves our factory not only passes specifications but is ready for years of dependable use.
Comparison Table – Durability Factors
| Factor | USB Mini-B | USB Micro-B | Sino-conn Standard Enhancement |
|---|---|---|---|
| Insertion Cycles | ~5,000 | ~10,000 | Custom testing up to 15,000 |
| Max Data Rate | 480 Mbps | 5 Gbps (USB 3.0) | EMI shielded stability |
| Heat Resistance | 85°C standard | 105°C options available | Up to 125°C automotive grade |
| Flame Resistance | Optional | UL94 V-0 available | Standard UL94 V-0 |
| Flexibility (bend life) | ~2,000 bends | ~5,000 bends | >8,000 bends with overmold |
| Environmental Protection | Limited | Optional (UV, Oil, etc) | Full custom material selection |
In real-world terms, a consumer might plug a smartphone into a Micro-B cable multiple times per day. Over a two-year device lifespan, that’s over 5,000 insertion cycles—exactly where Mini-B would start to degrade. With Sino-conn’s Micro-B assemblies, devices stay reliable, ensuring fewer failures, fewer warranty claims, and happier customers.
Application Scenarios Requiring High Electrical Performance
Mini-B is commonly found in older consumer electronics, while Micro-B supports smartphones, external drives, and industrial devices. Both remain essential in applications requiring compact, durable data and power connections.
Applications reveal why performance characteristics matter:

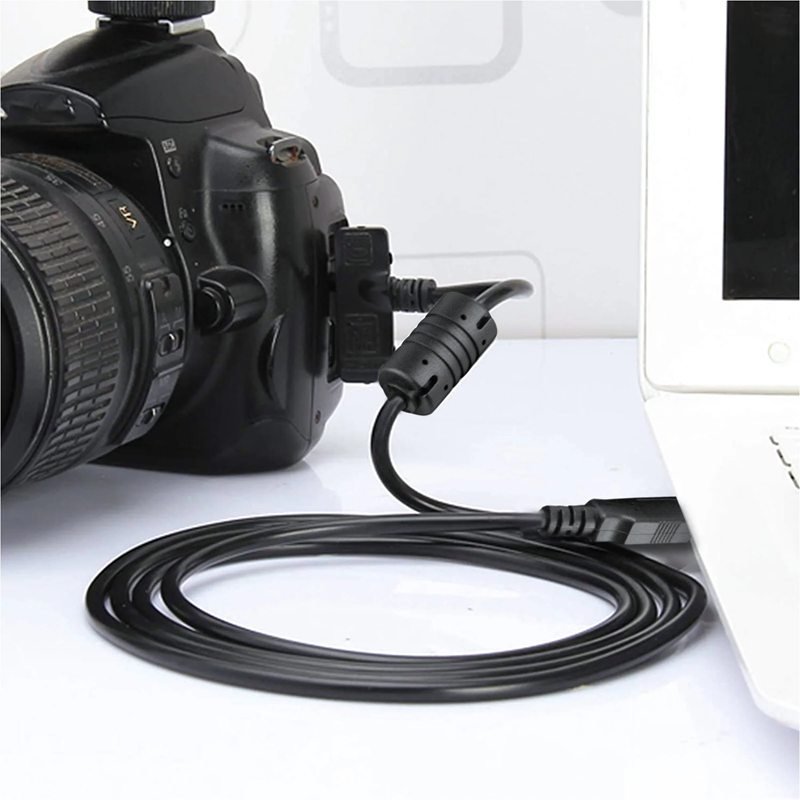

- Consumer Electronics: Mini-B powered digital cameras and MP3s; Micro-B became the standard for smartphones, tablets, and portable drives.

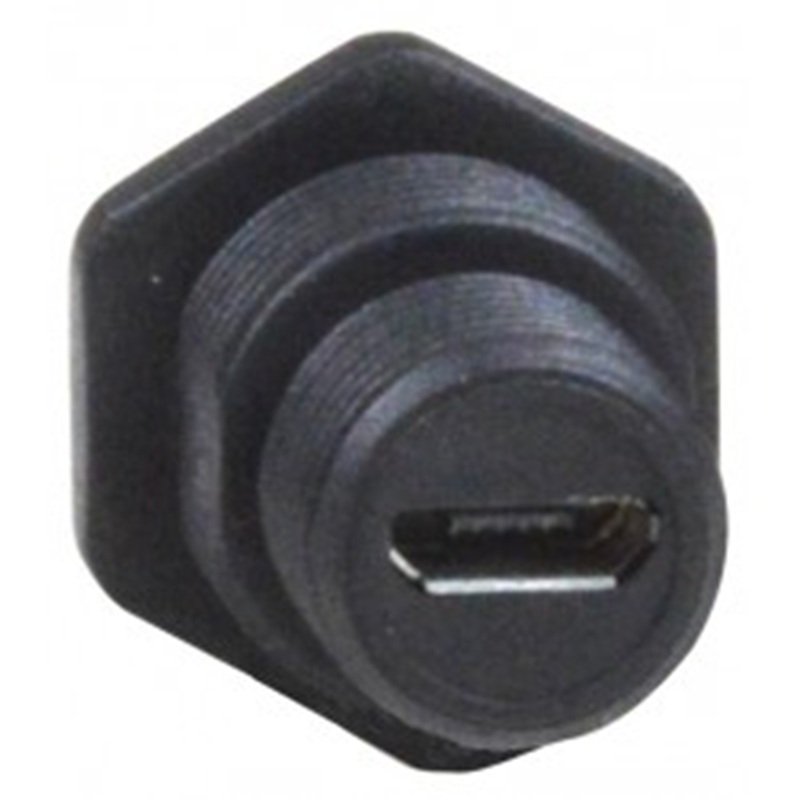

- Industrial & Automotive: Micro-B with reinforced housings supports diagnostic tools, navigation systems, and rugged devices.
- High-Speed Storage: USB 3.0 Micro-B enables 5 Gbps transfers, critical for portable SSDs.
Even as USB-C emerges, legacy connectors persist in massive installed bases. Engineers designing backward-compatible systems often request flexible manufacturing options from Sino-conn, including drawings, prototypes, and customized materials.
Conclusion: Ensuring Reliable Mini-B Micro-B Performance
Mini-B and Micro-B connectors may be small, but their electrical performance shapes the reliability of entire devices. From voltage ratings to durability cycles, and from EMI shielding to application-specific materials, these connectors represent decades of engineering evolution.
At Sino-conn, we specialize in delivering not just cables, but solutions tailored to customer needs—whether it’s adjusting pin-outs, providing drawings within 30 minutes, or offering flexible pricing between genuine and replacement parts. Our 100% inspection process ensures every connector meets its promise.
Ready to customize your Mini-B or Micro-B cable assembly? Contact Sino-conn today for samples, drawings, or bulk orders—and let us build the exact solution your project requires
