Car Wiring Harness Color Codes by Different Country: A Complete Guide

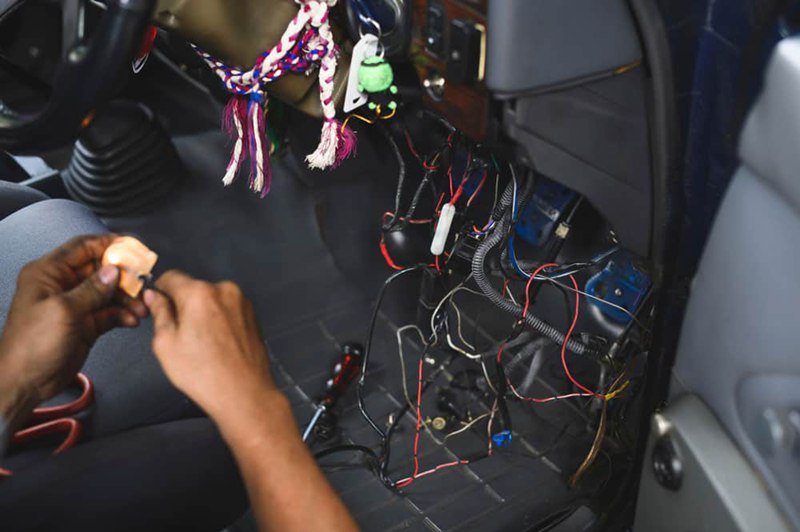

When you pop open a car hood, or cut into a wiring harness, what greets you is often a kaleidoscope of colored wires. To many, it looks chaotic, but to engineers, technicians, and quality control experts, those colors are a language—one that if misread, can lead to expensive mistakes, safety issues, or worse. In a world where cars cross borders, parts get shipped globally, and manufacturing spans continents, knowing which color means what in which country isn’t just trivia—it can save time, money, and lives.

Car wiring harness color codes differ significantly by country due to regional standards like SAE (USA), ISO/DIN (Europe), JIS (Japan), GB/T (China), and more. Each standard assigns specific colors for power, ground, signal, and high-voltage circuits. Proper identification ensures safety, simplifies troubleshooting, and ensures compatibility. Whether working for OEM, aftermarket, or custom builds, understanding international color codes is essential.

Let me tell you about Mike, an OEM electrical engineer, who once ordered a harness for a European car from a bending-edge supplier in Asia. The wire coding matched what the supplier called “universal,” but when installed, the turn signals and dashboard lights reversed—because the signal and ground wires had swapped color assignments between standards. That 2-day delay cost thousands in debug time. If you keep reading, you’ll avoid being Mike.

What Are Car Wiring Harness Color Codes?

Car wiring harness color codes are standardized color assignments applied to wires within a vehicle’s electrical system. Each color represents a specific function—power, ground, signal, lighting, or high-voltage circuits—so technicians, engineers, and manufacturers can instantly recognize each wire’s purpose. These color codes prevent miswiring, simplify maintenance, ensure global compatibility, and reduce safety risks like short circuits or fires. Correct color coding is essential for efficient production, regulatory compliance, and reliable vehicle performance.

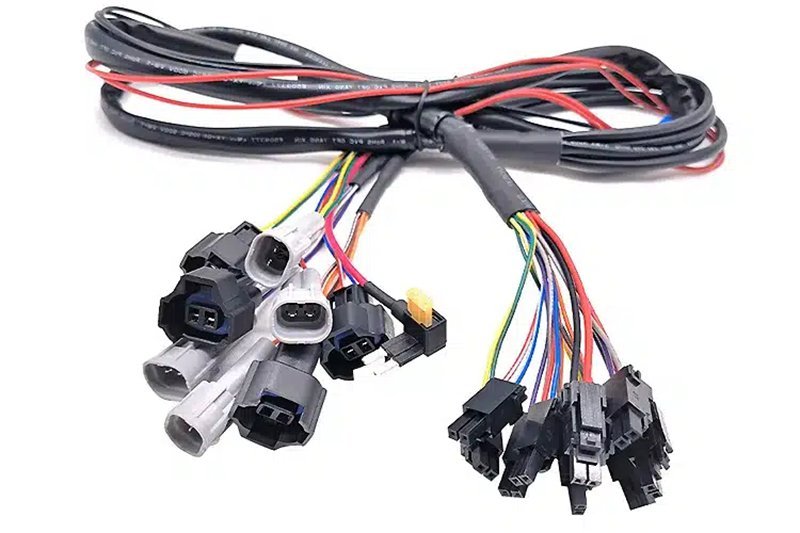

Car wiring harnesses form the central nervous system of any modern vehicle, carrying power and data to components ranging from headlights to ECUs (Electronic Control Units). Imagine hundreds of wires bundled together, weaving through tight spaces, feeding sensors, lights, infotainment, batteries, and advanced driver assistance systems (ADAS). Without color codes, deciphering or repairing this maze would be a nightmare.

1. Functional Clarity

Color coding instantly tells a technician or engineer the purpose of each wire:

• Red or Brown: Battery power or ignition lines
• Black or Green/Yellow: Ground or Earth
• Blue, White, or Gray: Signal or sensor wiring
• Orange: High-voltage lines in EV/hybrid vehicles

By following consistent color schemes, technicians avoid time-consuming wire tracing and reduce diagnostic errors.

2. Safety and Regulatory Compliance

Miswiring a high-voltage EV circuit could cause electric shock or fire. Many regions mandate specific colors for safety:

• The EU requires green/yellow for Earth/Ground.
• EV standards globally use bright orange for high-voltage cables.

Regulatory bodies like ISO, SAE, JIS, and local transportation authorities specify these codes to meet safety inspections and legal requirements.

3. Manufacturing Efficiency

In high-volume automotive plants, speed and accuracy matter. Standardized color codes mean:

• Workers need less training
• Automated harness testers can verify circuits faster
• Global suppliers can manufacture interchangeable parts

For custom harness orders at Sino-conn, providing clients with pre-production drawings (CAD/PDF) ensures zero confusion before mass production begins.

4. Cross-Border Vehicle Production

Modern cars often have parts sourced worldwide. A wiring harness built in Asia might end up in Europe or North America. Without agreed-upon color coding or clear documentation, international supply chains risk costly delays, mismatched parts, or warranty claims.

Which Countries Have Official Wiring Color Standards?

Many countries and regions maintain official automotive wiring color standards, including the USA (SAE, USCAR), EU/UK (ISO, DIN, VDE), Japan (JIS), China (GB/T), India (AIS), Australia/New Zealand (AS/NZS), Korea (KS), and South America (ABNT, IRAM). These standards assign colors for power, ground, lighting, sensors, and high-voltage circuits. Compliance ensures safety, maintenance efficiency, and cross-border manufacturing compatibility for both OEM and aftermarket harnesses.

Here’s a global wiring color code standards comparison covering more regions:

How Do Car Wiring Color Codes Differ by Voltage and Function?

Color coding in car wiring depends heavily on voltage level (standard 12V, 24V, high voltage in EVs) and function (power, ground, signal, accessory, lighting, sensors). For example, standard 12V power might always be red or brown depending on standard; ground is often black or green/yellow; high voltage (EV) uses orange in many standards. Identifying by function keeps wiring safe, reliable, and compliant.

Voltage Levels and Color Warnings

In traditional internal combustion engine (ICE) vehicles, most wiring is 12V (occasionally 24V for trucks). In hybrid/electric vehicles, you see high-voltage systems (hundreds of volts) where color pop-outs like bright orange or neon yellow/green are used for insulation to warn of danger. Standards often require thicker insulation, different materials, and color coding that can withstand higher stress (temperature, arcing).

Functional Categories

• Power wires: supply from battery, ignition, alternator. Usually bold colors (red, brown) that differ by region.
• Ground / Earth wires: black, green/yellow stripe etc. Very important to ensure chassis ground is obvious.
• Signal / sensor / data wires: may be blue, gray, white, etc. Sometimes paired with stripes or other markers. These wires often need shielding or twisted pairs to limit interference.
• Accessory / lighting / indicator wires: often follow color conventions (e.g. amber for indicator lights in many countries, white or clear for reverse lamps etc.).

Material / Insulation Considerations

Beyond just color, the insulation must meet specs: temperature resistance, fire rating, oil / UV / corrosion resistance, EMI shielding. A wire marked with a certain color but using subpar insulation can degrade, fail under vibration or heat, or fail environmental tests.

Practical Implications for Custom Harnesses

If a client in Germany orders a harness to use in USA standards but supplies the function list in their local color preferences, Sino-conn can custom map color vs function. We need your spec sheet (voltage, current, durability, environment, OEM or not). An exact pin-out + color mapping table speeds up the process and avoids reworks.

How to Read and Decode a Wiring Harness Diagram?

To read and decode a wiring harness diagram, start by studying the legend/key for color abbreviations, wire gauges, connector types, and pin numbers. Then trace circuits step by step, verify wire colors against OEM standards, and use tools like multimeters to confirm continuity or voltage. Pay attention to striped wires, grounding points, and component references. Finally, cross-check with service manuals or supplier drawings before installation or troubleshooting.

1. Understand the Legend and Symbols

Every wiring diagram comes with a legend that explains:

• Color codes (e.g., BK = Black, RD = Red, GY = Gray)
• Wire gauges (AWG or metric sizes like 0.5 mm²)
• Connector references (e.g., C101 = Main ECU Connector)
• Pin numbers (critical for multi-pin plugs)
• Component abbreviations (e.g., IGN = Ignition Switch, GND = Ground)

Without this decoding key, interpreting the diagram becomes guesswork.

2. Trace the Circuit Path

Start from a known point, such as the battery or fuse box, and follow the wire’s color-coded line through switches, relays, and connectors to its endpoint (e.g., a headlamp).

• Solid colors = main wires
• Striped wires = sub-circuits or accessory feeds
• Dashed lines = shielded or twisted pairs (common in data lines like CAN Bus)

3. Verify Colors and Functions

Cross-reference the wire’s color with country standards (SAE, ISO, JIS, GB/T) or OEM documentation. For instance:

4. Use Diagnostic Tools

• Multimeter: Check continuity, resistance, or live voltage.
• Test Lamp: For quick power/ground verification.
• Pin-out Testers: Ensure connectors match wiring diagrams.

These tools confirm that color = function before manufacturing or repair.

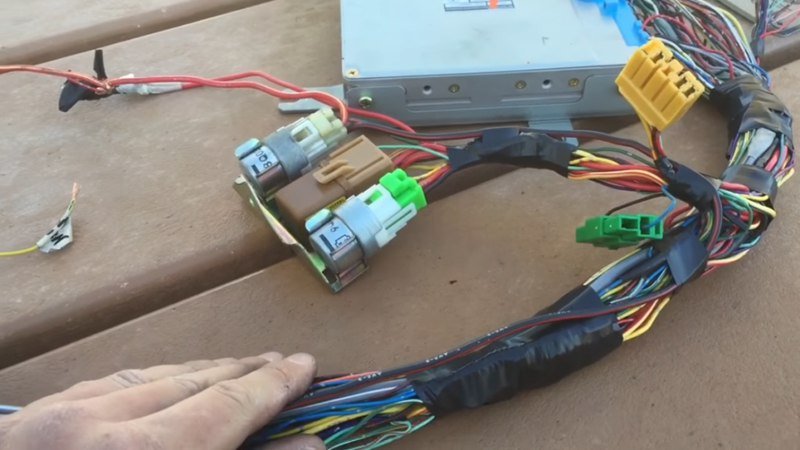

How to Identify Car Wiring Colors?

You can identify car wiring colors by examining wire insulation (solid color, stripes, markings), using OEM wiring diagrams which list color abbreviations and functions, verifying with multimeters (continuity / voltage), and inspecting connector pin numbers. In worn or ambiguous cases, checking both ends of wire, measuring voltage under load or referencing harness specification sheet helps. Always confirm color vs function rather than trusting color alone.

Visual Inspection

• Look for solid colors, but also stripes, bands, or tracer colors (e.g. a white stripe on red).
• Check insulation condition (temperature exposure, fading) which might alter color.
• Take note of labeling on wires — sometimes manufacturers print short codes (RD, BK, GN, etc.) on the insulation.

Using Wiring Diagrams / Spec Sheets

• OEM repair manuals are excellent: they show color codes, pin-out numbers, functions (for example “RD = ignition power; BK = ground”).
• In custom builds, your supplier (like Sino-conn) should ask for your color preferences, or provide you standard mappings.
• Confirm your vehicle model / year / trim: sometimes changes happen year to year.

Testing with Tools

• Multimeter: check for voltage vs ground; measure continuity so you can trace the same wire through the harness.
• Test lamp / inductive tester: check live circuits.
• Use portable light source, magnification: sometimes even stripes are very faint.

Confirm Both Ends and Under Load

• Wires may be swapped or mislabeled at connectors. Best practice: check wire color and function at both ends (e.g. connector side + component side).
• Under load (engine on / ignition on) colors may reveal voltage or grounding differences that are helpful for correctly identifying.

Example / Checklist for Clients

Are There Safety and Compliance Regulations for Wiring Harnesses?

Yes—automotive wiring harnesses must abide by safety and compliance standards like UL, ISO, RoHS, REACH, PFAS, COC, COO etc. Regulations cover insulation material (flammability, halogen content, oil/UV resistance), EMI shielding, conductor material, voltage/current ratings, and durability (temperature, bend radius, corrosion). Meeting these ensures safety, legal compliance, reliability, and customer trust—especially in high-volume, regulated markets.

1. Key Certifications and What They Cover
   • UL (Underwriters Laboratories): safety for materials, flame resistance, electrical insulation.
   • ISO standards (e.g. ISO 6722 for automotive wiring): cover wire size, temperature rating, mechanical strength, insulation integrity.
   • RoHS / REACH: limit harmful substances such as lead, cadmium, certain phthalates; PFAS concerns are growing.
   • PFAS, Halogen-free, No Fluorine, Non-Halogen, etc.: many customers demand non-halogen insulation so in case of fire, less toxic smoke.
2. Environmental & Mechanical Durability Requirements Wiring harnesses are exposed to vibration, heat, oil, UV, moisture, salts etc. Material selection and color stability under these conditions is crucial. The insulation must not degrade, discolor beyond recognition, or lose its insulating property.
3. Electrical & EMC (Electromagnetic Compatibility) Requirements Wiring must not introduce EMI into sensitive circuits (sensors, ECU, radio). Shielding, twisted pairs, ground-shielding etc may be required. Color coding sometimes includes wrappers or labels to mark shielded cables.
4. Legal / Automotive Regulatory Compliance In many markets, wires used in vehicles must pass regulatory tests (e.g. crash, EMC, fire, temperature cycling). Mis-wired or miscolored harnesses can fail inspections or recall. For instance, EU has stricter rules for materials and emissions; USA has safety recall regulations.

Frequently Asked Questions

1. Do wiring harness color codes vary between countries?

Absolutely. The USA (SAE), Europe (ISO/DIN), Japan (JIS), China (GB/T), and India (AIS) each have unique standards. Using the wrong color code when sourcing or replacing harnesses can cause safety risks or compliance failures in cross-border projects.

2. What color is used for high-voltage EV wiring?

Globally, bright orange insulation is standard for high-voltage EV or hybrid circuits above 60V. This is mandated or recommended by ISO, SAE, and many regional EV safety regulations to protect technicians and first responders from accidental electric shock.

3. How can I identify the wires in my automotive wiring harness?

The easiest way to identify wires is to check the color codes printed on the wire insulation or refer to the vehicle’s wiring diagram. If colors are faded or missing, use a multimeter to measure voltage, continuity, or resistance to confirm each wire’s function before connecting or modifying circuits.

4. Can I rearrange or modify existing wiring using the color code?

Yes. Following the correct wiring harness color code is highly recommended when modifying circuits because it:

• Makes future maintenance faster and safer
• Simplifies troubleshooting by ensuring technicians know each wire’s function
• Keeps future upgrades or repairs consistent and error-free

5. Are there differences between GM, Ford, and other automaker wiring color codes?

Yes. Each automaker uses its own internal color coding system. While black is often used for ground, other colors differ by brand and even by model year. Always check the OEM wiring diagram for your specific vehicle to avoid connection mistakes.

6. How can I confirm wiring colors when documentation is missing?

When diagrams or labels are unavailable, technicians use:

• Multimeters to check voltage and ground circuits
• Pin-out mapping on connectors
• Visual inspection for stripes or printed codes
• Supplier-provided CAD/PDF drawings before installation

At Sino-conn, we deliver pre-production drawings so customers can verify color mapping before manufacturing.

7. How can I order custom wiring harnesses with the correct color codes?

Provide your supplier with:

• Regional or OEM color code requirements
• Voltage/current specifications
• Connector types, lengths, and shielding needs At Sino-conn, we offer no MOQ, urgent 2–3 day sampling, and compliance with UL, ISO, RoHS, and REACH standards to ensure accuracy and fast delivery.

Conclusion

Understanding car wiring harness color codes by country is not just academic—it has real, tangible impacts on safety, costs, lead times, maintenance, reliability, and compatibility. As you plan your wiring harness needs—whether for OEM production, aftermarket modification, custom prototypes, or EV/hybrid vehicles—getting the color coding, insulation materials, compliance certifications, and pin-out correct up front will save you days, dollars, and headaches down the road.
