Which Materials Are Best for Durable Cable Harness Assemblies

Choosing the right materials for cable harness assemblies is far more than a technical decision—it directly impacts performance, reliability, cost, and even safety. Whether you’re an engineer in automotive design, an OEM factory buyer, or a distributor comparing specifications, the type of conductor, insulation, shielding, and connectors you select determines how well your product will function under real-world conditions. Materials are the backbone of cable harness assemblies: they control how long cables last, how well they resist heat or chemicals, and how efficiently they carry signals.

The best materials for cable harness assemblies depend on the application. Copper conductors deliver excellent conductivity, while aluminum offers lighter weight. PVC insulation is cost-effective, XLPE provides heat resistance, and Teflon ensures high performance in extreme environments. Shielding options like copper braid or aluminum foil prevent EMI, while metal connectors enhance durability. The right material mix ensures safety, reliability, and compliance across industries.

At Sino-conn, we’ve seen how material choice transforms projects. One aerospace customer once switched from PVC to Teflon jackets and cut maintenance downtime by 40%. Another automotive OEM discovered that using XLPE instead of PVC doubled the lifespan of their engine harness. Stories like these remind us: the right material doesn’t just save money—it builds trust with every end user. Curious to know which material suits your industry best? Let’s dive deeper.

What Are the Main Materials in Cable Harness Assemblies?

Cable harness assemblies are built from a combination of carefully selected materials—conductors, insulation, shielding, and connectors—that each play a vital role in determining durability, flexibility, and performance. For engineers, buyers, and OEM factories, understanding these materials is the first step in making the right sourcing decision.

• Conductors (Copper vs. Aluminum): Copper remains the gold standard because it delivers up to 40% better conductivity than aluminum. It resists breakage under bending stress and is highly compatible with most connector types. However, it is heavier and more expensive. Aluminum, on the other hand, is 30–50% lighter, making it ideal for aerospace where every kilogram matters. With the right anti-oxidation treatment, aluminum can provide excellent long-term performance.
• Insulation (PVC, XLPE, Teflon):
  • PVC is the most common choice in consumer electronics, home appliances, and lower-cost OEM projects. It is flexible, affordable, and easy to process. Its downside is limited heat resistance (typically up to 105°C).
  • XLPE withstands up to 150°C, resists oils and chemicals, and provides higher dielectric strength, making it the go-to choice for automotive harnesses.
  • Teflon (PTFE) can handle extreme conditions up to 200–250°C, along with chemical, flame, and moisture resistance. This makes it indispensable in aerospace, defense, and medical sectors where failure is not an option.
• Shielding (Copper Braid, Aluminum Foil, Hybrid): EMI is a major concern in modern electronics. Copper braid offers 90–95% coverage and flexibility, ideal for high-frequency environments. Aluminum foil is lighter and cheaper, suitable for lower-frequency protection. A hybrid (foil + braid) is often used in medical equipment or high-end industrial machines.

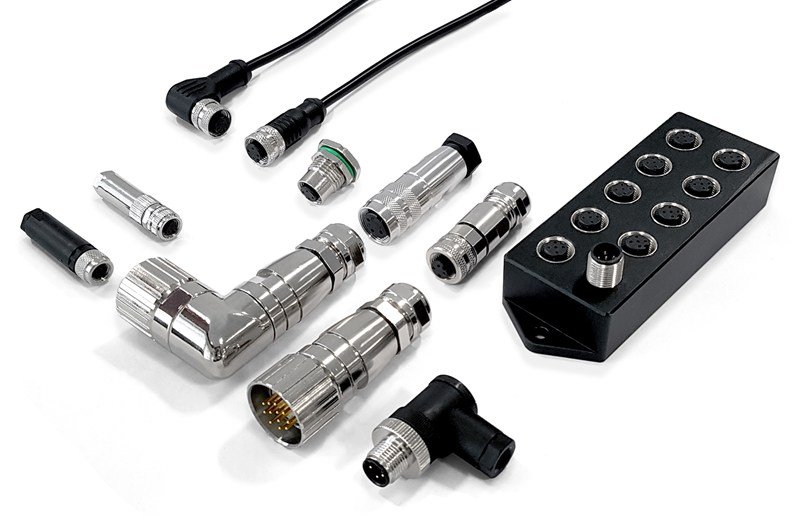

• Connectors (Plastic vs. Metal, Genuine vs. Alternative): Plastic connectors are cost-effective and good for indoor applications. Metal connectors add EMI resistance and ruggedness for outdoor or industrial use. Sino-conn provides both genuine brand connectors (like Molex, TE, JST) and cost-effective equivalents. This flexibility lets customers balance cost, delivery speed, and performance.

Quick Comparison Table:

For buyers and engineers, this breakdown means better trade-off decisions—whether that’s cutting cost with PVC and aluminum, or investing in XLPE and Teflon for long-term reliability.

Which Materials Offer the Best Performance in Different Applications?

The best materials vary by industry: XLPE and Teflon excel in automotive and aerospace due to heat resistance; aluminum conductors reduce aircraft weight; PVC works well in consumer electronics; copper with heavy shielding suits industrial automation.

Every industry places unique demands on its electrical systems. That’s why material choice cannot follow a one-size-fits-all rule.

Automotive:

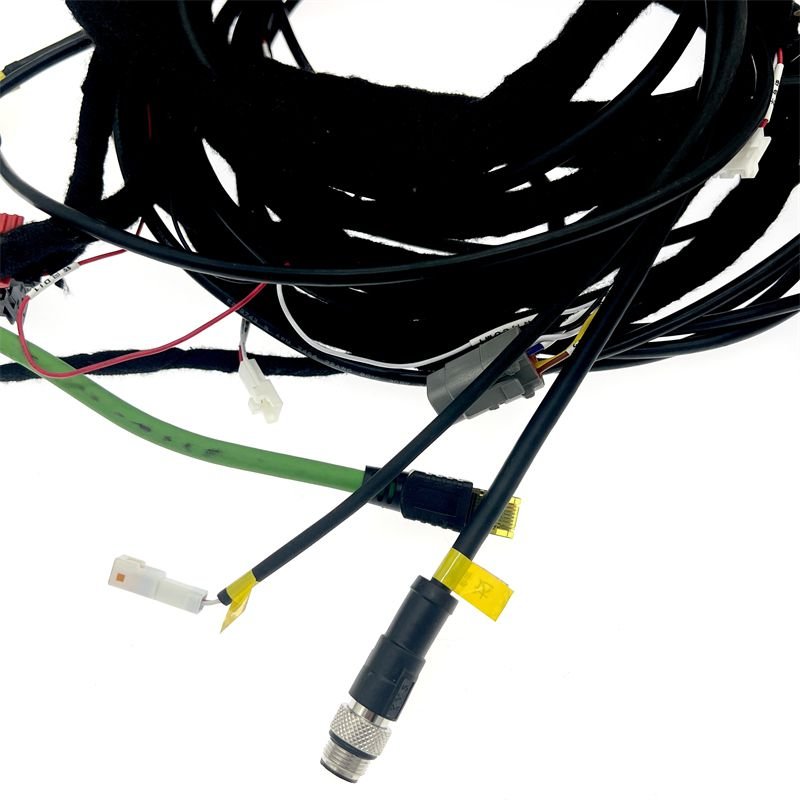

Engine compartments face high heat and vibration. Here, XLPE insulation and copper conductors dominate because they endure extreme conditions without failure. For cost-sensitive models, PVC is used in interior harnesses.

Aerospace:

Weight reduction is critical. Aluminum conductors and Teflon insulation are often chosen. The trade-off? Higher material costs but lower fuel consumption. Many European aerospace companies prefer outsourcing production to China due to the specialized materials required.

Industrial Automation:

Oil-resistant jackets and strong EMI shielding are crucial. Copper with aluminum foil shielding is often used to maintain signal integrity in noisy factory environments.

Consumer Electronics:

Here, cost and flexibility matter most. PVC insulation with copper conductors is standard. Shielding may be lighter or even omitted for non-critical low-voltage applications.

Application-Specific Material Preferences

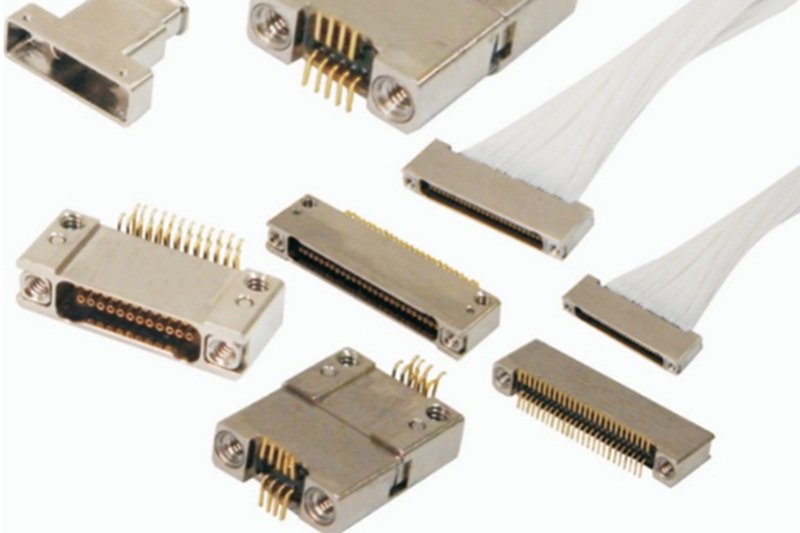

Where are flat cable assemblies permitted to be installed?

Flat cable assemblies are often permitted in computer systems, control panels, and under-carpet wiring, where space is limited, and airflow is important.

How Do Material Choices Affect Safety and Compliance

Safety and compliance are not just checkboxes—they’re gatekeepers to market entry. OEM buyers, engineers, and distributors know that even if a harness performs well technically, it cannot be sold in key markets without meeting industry standards. This is why material choice directly ties into safety certifications and compliance.

• Fire Safety & Flame Retardancy: Many industries demand flame-retardant jackets. For example, in automotive interiors, halogen-free PVC or XLPE is required to reduce toxic smoke in case of fire. In aerospace, Teflon is preferred for its non-flammable properties. Choosing the wrong insulation material can mean instant rejection in UL fire testing.
• Electromagnetic Compatibility (EMC): Medical and aerospace devices require strict EMI control. A poorly shielded harness may cause interference with navigation systems or hospital monitoring equipment. Copper braid is often specified for these industries, while aluminum foil alone is insufficient.
• Environmental Compliance (RoHS, REACH, PFAS): Europe enforces strict bans on hazardous materials. PVC that contains lead stabilizers, or insulation with halogen additives, may fail RoHS or REACH compliance. Customers in Germany or Scandinavia, for example, often require halogen-free and low-smoke materials.
• Certifications (UL, ISO, COC, COO):
  • UL: Verifies electrical safety and flame resistance.
  • ISO 9001: Ensures manufacturing quality processes.
  • RoHS & REACH: Confirm environmental friendliness.
  • COC & COO: Certificates of conformity and origin, often required by import customs.

At Sino-conn, 100% of harnesses are tested and inspected three times—during process, after completion, and before shipment. We also provide CAD drawings for customer approval before production begins. This not only ensures compliance but builds confidence with engineers and OEM buyers.

Compliance Checklist for Buyers:

Bottom Line:

Material choice can either open doors or close markets. Customers often pay more for compliance-ready materials not just because of legal requirements, but also because failure could cost millions in recalls. Sino-conn’s full certification support ensures smooth entry into North America, Europe, and Asia.

Are Premium Materials Worth the Higher Cost

Premium materials like Teflon and XLPE cost more upfront but save money long-term by reducing downtime, replacements, and safety risks. They’re often the best choice for aerospace, automotive, and mission-critical systems.

The debate between cost and performance is universal. While PVC is cheaper, it may degrade faster under stress. Premium options such as Teflon or XLPE can extend product life two- to threefold.

Here’s a side-by-side comparison showing how different materials impact both upfront and long-term costs.

Cost vs. Performance Trade-Off

This data proves why many aerospace and automotive customers choose XLPE or Teflon despite the higher initial price—they deliver the lowest total cost of ownership

How to Choose the Right Material for Your Project

Choosing the right material requires evaluating your application’s environment, compliance needs, cost limits, and customization options. Partnering with an experienced manufacturer like Sino-conn ensures reliable, tailored solutions.

When selecting materials, start with key questions:

• What temperatures will the harness face?
• Is EMI shielding necessary?
• Does the product need to meet RoHS or REACH?
• What’s the budget and lead time?

Sino-conn helps clients by providing CAD drawings within 30 minutes to 3 days, ensuring all designs are reviewed before production. No MOQ policy allows even 1-piece orders. Our ability to ship urgent samples in 2–3 days and bulk orders in 2 weeks makes us competitive.

What are the different types of wire harnesses?

Types include standard, waterproof, high-temperature, shielded, and custom harnesses. Each is designed for specific environments.

What does a cable assembler do?

Cable assemblers cut, strip, crimp, solder, and test cables, then bundle them into harnesses. Their role ensures quality and reliability before delivery.

Conclusion

The best material for a cable harness assembly depends on your application, compliance requirements, and budget. From copper conductors to Teflon insulation, every choice impacts performance. Sino-conn has the expertise, certifications, and flexibility to design and deliver custom harnesses that meet even the toughest demands.

Ready to choose the right material for your project? Contact Sino-conn today for a custom consultation, quick samples, and tailored pricing.
