What Battery Cable Types Mean for Optimal Vehicle Performance

When you think about upgrading your vehicle’s performance, you might picture a turbocharger, high-performance tires, or a better suspension system. But here’s a less obvious truth: the humble battery cable can make or break your vehicle’s reliability. A poorly chosen or worn-out battery cable can cause hard starts, reduced electrical power, and even damage to sensitive electronics. On the flip side, the right cable type ensures maximum current delivery, minimal voltage drop, and long-term durability — whether you’re driving a daily commuter, a heavy-duty truck, or a high-performance marine vessel.

Battery cable types impact vehicle performance by influencing electrical conductivity, starting power, and system reliability. The right cable type — matched for gauge, material, and insulation — ensures low resistance, minimal voltage drop, and long-term durability under specific operating conditions.

Most drivers underestimate how critical battery cables are until they face a no-start situation on a cold morning or notice dimming headlights under load. Just like arteries in the human body, battery cables deliver the lifeblood of your vehicle’s electrical system. And, as we’ll explore in the next sections, choosing the right type isn’t just about “a wire that fits” — it’s about matching performance, environment, and durability for optimal results.

So let’s dive in — and by the end of this article, you’ll know exactly what to look for, what to avoid, and why Sino-conn’s approach to custom battery cables can solve problems before they even start.

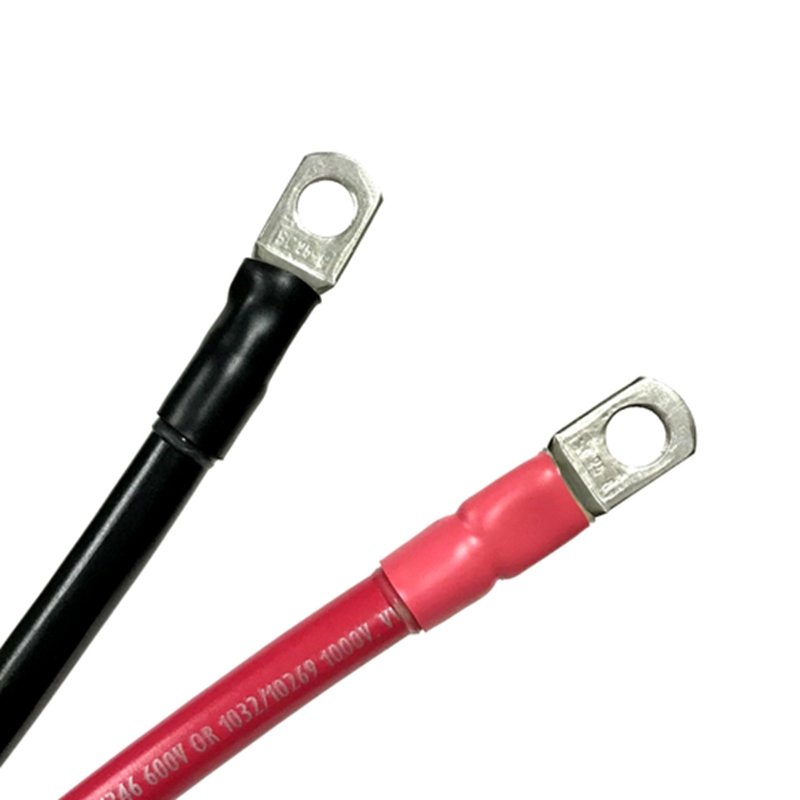

What Is a Battery Cable and How Does It Work?

A battery cable is a thick, insulated conductor connecting the vehicle’s battery to its starter, alternator, and electrical system, enabling high-current power transfer for starting and running the vehicle.

Think of a battery cable as the electrical highway in your vehicle. Every time you turn the key or push the start button, the starter motor demands a surge of current — often hundreds of amps — in just a few seconds. If the cable is undersized, corroded, or poorly insulated, that surge weakens, causing slow cranking or complete failure.

A typical system has two main cables:

Good battery cables are made from low-resistance conductors (often copper or tinned copper) and insulated with heat- and oil-resistant materials. The choice of conductor and insulation affects conductivity, flexibility, and corrosion resistance.

In short, without healthy battery cables, your vehicle’s electrical system simply can’t operate reliably.

Which Battery Cable Materials Offer the Best Performance?

Pure copper delivers the best electrical conductivity for most vehicles, tinned copper adds superior corrosion resistance for marine and harsh environments, and copper-clad aluminum offers a lightweight, budget-friendly option but with reduced conductivity.

The choice of battery cable material is one of the biggest determinants of how efficiently your vehicle transfers power from the battery to the starter and other systems.

1. Pure Copper (OFC)

• Conductivity: ~100% IACS (International Annealed Copper Standard)
• Advantages: Maximum current flow, high flexibility, long service life.
• Limitations: Susceptible to corrosion if exposed to moisture without protection.
• Best Use Case: Automotive OEM builds, high-performance or heavy-duty applications.

2. Tinned Copper

• Conductivity: ~98% of pure copper, virtually negligible loss.
• Advantages: Superior corrosion resistance thanks to a thin tin coating; ideal for humid, salty, or chemical-exposed environments.
• Limitations: Slightly higher cost than pure copper.
• Best Use Case: Marine vessels, mining equipment, coastal industrial vehicles.

3. Copper-Clad Aluminum (CCA)

• Conductivity: ~60% of pure copper.
• Advantages: Lightweight, cheaper, adequate for low to moderate amp draw.
• Limitations: Higher resistance, more voltage drop, reduced flexibility under cold conditions.
• Best Use Case: Light-duty, cost-sensitive projects where weight savings matter more than maximum performance.

Real-World Example:

A European OEM client approached Sino-conn for cables in a coastal delivery truck fleet. We recommended tinned copper with EPDM insulation, which increased cable lifespan by 2.5× compared to their previous pure copper PVC-insulated cables.

Pro Insight:

When in doubt, choose pure copper for performance, tinned copper for longevity in harsh climates, and avoid CCA for critical starting systems.

How Do Battery Cable Types Affect Vehicle Starting Power?

Cable gauge, material, and length directly determine how much current reaches your starter motor with minimal voltage drop, which is critical for reliable starts.

Vehicle starting power depends heavily on delivering a short burst of high current — often between 150A and 600A depending on the vehicle type — from the battery to the starter motor.

1. Cable Gauge (AWG)

• Lower AWG = thicker cable = higher current capacity.
• Example ratings for short runs (≤1.5m):
  • 0 AWG: ~350–400A capacity — suitable for heavy trucks, large diesel engines.
  • 2 AWG: ~250A — ideal for mid-size cars, SUVs.
  • 4 AWG: ~150A — sufficient for compact vehicles.

2. Material Impact

• Pure copper cables have lower resistance, so voltage drop is minimized, which is especially important in cold weather.
• Tinned copper performs equally well in amps delivery but lasts longer in corrosive environments.

3. Cable Length

• Every extra foot increases resistance — for long runs (e.g., rear-mounted batteries), you may need to increase gauge size by 1–2 levels to maintain performance.

4. Environmental Considerations

Cold temperatures increase oil viscosity and starter resistance, requiring higher cranking amps. A cable that works fine in summer might fail in -20°C unless properly sized.

Real-World Example:

Sino-conn replaced a fleet’s 4 AWG CCA cables with 2 AWG pure copper in northern Canada. The result? Cold start success rates improved from 78% to 99% in winter, with zero starter motor failures in the following 12 months.

Pro Insight:

If your vehicle struggles to start in cold weather, upgrading cable gauge and switching to pure or tinned copper is one of the most cost-effective solutions available.

Are All Battery Cables Suitable for All Vehicle Types?

No. Automotive, marine, and industrial battery cables have different designs to handle unique environmental and performance demands.

• Automotive — Needs flexibility for routing, heat resistance, and high cranking amps.

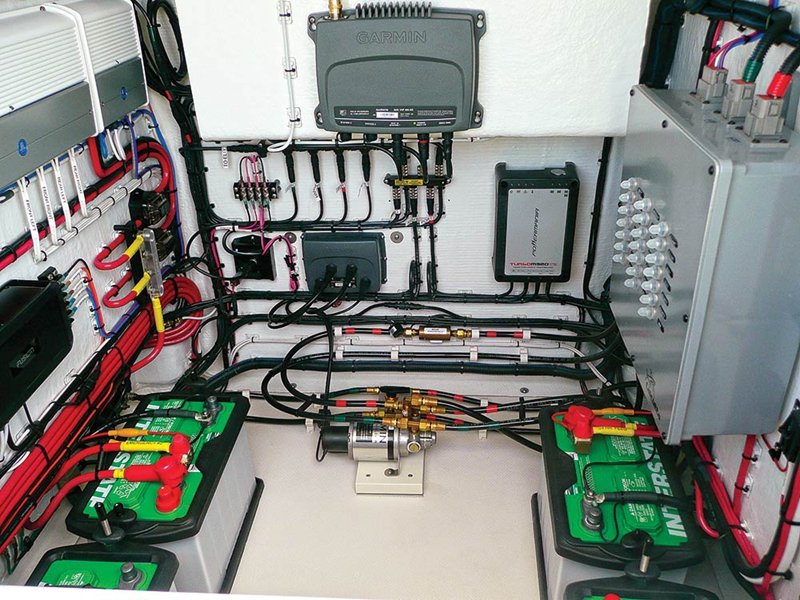

• Marine — Must resist saltwater corrosion and meet marine safety standards (e.g., UL 1426).
• Industrial/Heavy Equipment — Often uses ultra-flexible welding cable types for frequent movement and extreme vibration.

Sino-conn frequently helps clients avoid costly mistakes by matching cable specs to both the environment and the equipment. For instance, an OEM truck manufacturer in a cold region required EPDM-insulated, tinned copper cables to survive both road salt and -30°C winters.

How to Select and Maintain the Right Battery Cable

Choose the correct gauge, material, insulation, and connectors for the application, and inspect regularly for corrosion or wear to maintain performance.

Selection checklist:

• Match AWG to amp draw and cable length.
• Choose material based on conductivity and environment.
• Ensure insulation resists heat, oil, and UV.
• Select connectors that fit your battery and component terminals securely.

Maintenance tips:

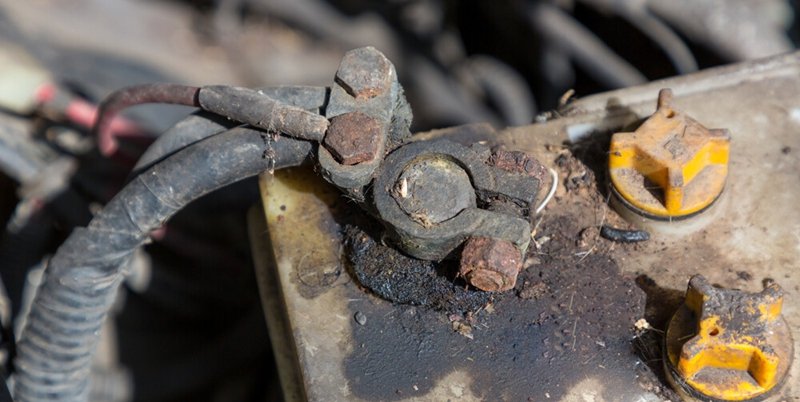

• Check for corrosion at least twice a year.
• Replace if insulation cracks or conductor strands are exposed.
• Clean terminals with baking soda solution to prevent oxidation.

Sino-conn offers free consultation to help clients balance performance and cost while ensuring all cables meet certifications like UL, ISO, RoHS, and REACH.

Do Quality and Manufacturer Standards Impact Performance?

Yes. Certified, high-quality cables ensure consistent performance, safety compliance, and longer service life.

Manufacturers following strict quality protocols — such as 100% inspection, process checks, and end-of-line testing — reduce the risk of defects that can cause electrical failure.

Why Sino-conn stands out:

• 100% inspection at three stages: in-process, post-production, pre-shipment.
• Rapid prototyping — CAD to PDF drawings within 30 minutes.
• Flexible MOQ — From 1 piece to full production runs.
• Global compliance — UL, ISO, RoHS, REACH certifications.

Final Word — Let Sino-conn Power Your Next Project

Whether you’re an engineer designing a next-generation EV, an OEM looking for a reliable partner, or a marine equipment supplier needing corrosion-proof cables, Sino-conn delivers custom battery cable solutions with speed, precision, and uncompromising quality.

Contact Sino-conn today to request a quote or discuss your custom design — and experience the performance difference that the right battery cable can make.
