When you turn on your car, every function—whether headlights, dashboard displays, or advanced driver-assist systems—relies on one invisible backbone: the automotive wire harness. Often described as the “nervous system” of modern vehicles, wire harnesses connect and power nearly every electrical component. Without them, today’s vehicles simply wouldn’t run.
Automotive wire harnesses are essential in cars because they transmit power and signals between the vehicle’s electrical components, ensuring reliability, safety, and efficiency. They simplify wiring layouts, reduce weight, improve performance, and withstand harsh environments. From engine control to infotainment, wire harnesses make modern driving possible while supporting advanced automotive electronics and electric vehicle systems.
Think about it—without this hidden yet critical component, your vehicle would be nothing more than a shell of mechanical parts. In fact, one global market report shows that automotive wire harness demand exceeds $50 billion annually, proving just how indispensable they are. Imagine a world where every wire had to be installed separately—cars would be heavier, more fragile, and far more expensive to maintain. Now, let’s dive deeper into what makes wire harnesses so vital.
What Are Automotive Wire Harnesses and Their Main Functions?
An automotive wire harness is a bundled assembly of cables, connectors, and protective coverings designed to transmit power and signals in cars. Its main functions are connecting electrical components, reducing wiring complexity, and improving reliability and safety across the vehicle.
At its core, an automotive wire harness is a carefully engineered assembly that organizes hundreds of individual wires into a single manageable structure. Instead of chaotic wiring running across a vehicle, harnesses simplify installation and repair.
- Power transmission: delivering current from the battery to engines, lights, and accessories.
- Signal communication: ensuring accurate data transfer between sensors, control units, and driver displays.
- System integration: supporting everything from basic lighting to advanced driver-assistance systems (ADAS).
The benefits extend beyond function. Harnesses minimize wiring errors, protect against moisture, vibration, and heat, and make manufacturing more efficient. As vehicles become smarter, the role of wire harnesses only grows.
Which Materials Are Commonly Used in Automotive Wire Harnesses?
Automotive wire harness materials are the foundation of both performance and safety. A single weak material choice can lead to premature failure, signal interference, or even safety risks. That’s why manufacturers like Sino-conn carefully select and test every component.
In short: The most common materials are copper or tinned copper conductors for electrical performance, PVC or XLPE for insulation, protective sheaths such as TPE or silicone for durability, and robust connectors like copper alloy or stainless steel for long-lasting connections.
- Conductors:
- Copper: Known for excellent conductivity and flexibility, making it the most widely used conductor.
- Tinned Copper: Copper coated with tin to resist corrosion, especially valuable in humid or high-salt environments (e.g., coastal or winter road conditions).
- Aluminum (limited use): Lighter and cheaper, but lower conductivity and requires special connectors.
- Insulation:
- PVC (Polyvinyl Chloride): Affordable, flame-retardant, and widely used in general applications.
- XLPE (Cross-linked Polyethylene): Excellent thermal resistance (up to 150°C), preferred for engine compartments.
- PE (Polyethylene): Provides good dielectric properties, often used in data signal cables.
The table below compares insulation materials by their temperature ratings and typical use cases:
| Insulation | Typical Continuous Temp | Peak Temp | Use Case |
|---|---|---|---|
| PVC | 80–105°C | 105–120°C | Cabin/body |
| XLPE | 125–150°C | 150–170°C | Engine bay |
| Silicone | 180–200°C | 220°C | EV/HV, turbo zones |
Beyond insulation, protective sheaths add another layer of durability:
- Outer Sheath & Protective Layers:
- TPE (Thermoplastic Elastomer): Flexible and resistant to oil, chemicals, and temperature variations.
- Silicone: Withstands extreme temperatures from -60°C to +200°C, ideal for EV and high-voltage applications.
- Braided Mesh or Corrugated Tubes: Protect against abrasion and mechanical stress.

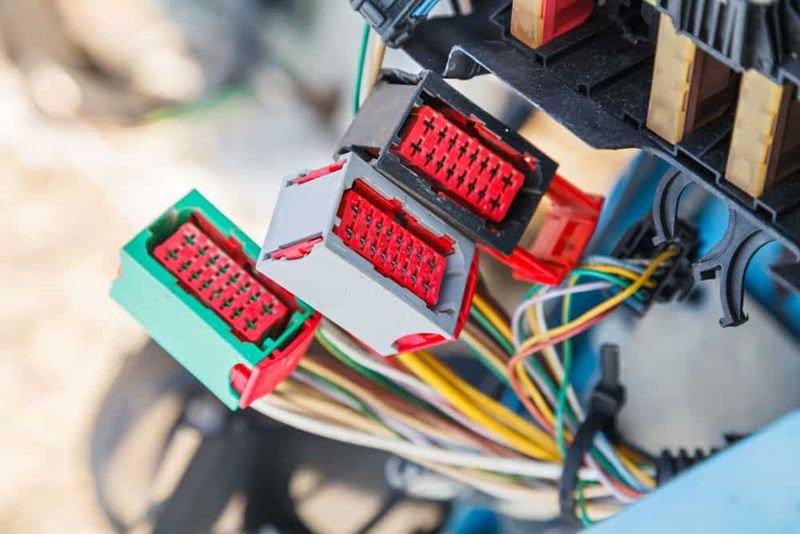

- Connectors & Terminals:
- Copper Alloys: High conductivity and mechanical strength.
- Stainless Steel: Used for heavy-duty, corrosion-resistant applications.
- Gold-plated connectors: For premium signal performance where EMI sensitivity is high.
Why Material Matters to Customers
- Reliability: Materials determine whether your car starts every time, even in extreme weather.
- Cost Control: Different materials balance price vs. performance (OEMs may prefer higher grade; aftermarket may choose optimized alternatives).
- Safety: Flame-retardant and halogen-free materials reduce fire risk and meet strict environmental regulations.
- Customization: Sino-conn allows tailoring—e.g., choosing silicone instead of PVC for EV applications or using tinned copper for coastal fleets.
Key takeaway: Material choice defines performance. The right mix ensures efficiency, safety, and cost-effectiveness—tailored to your specific environment and application.

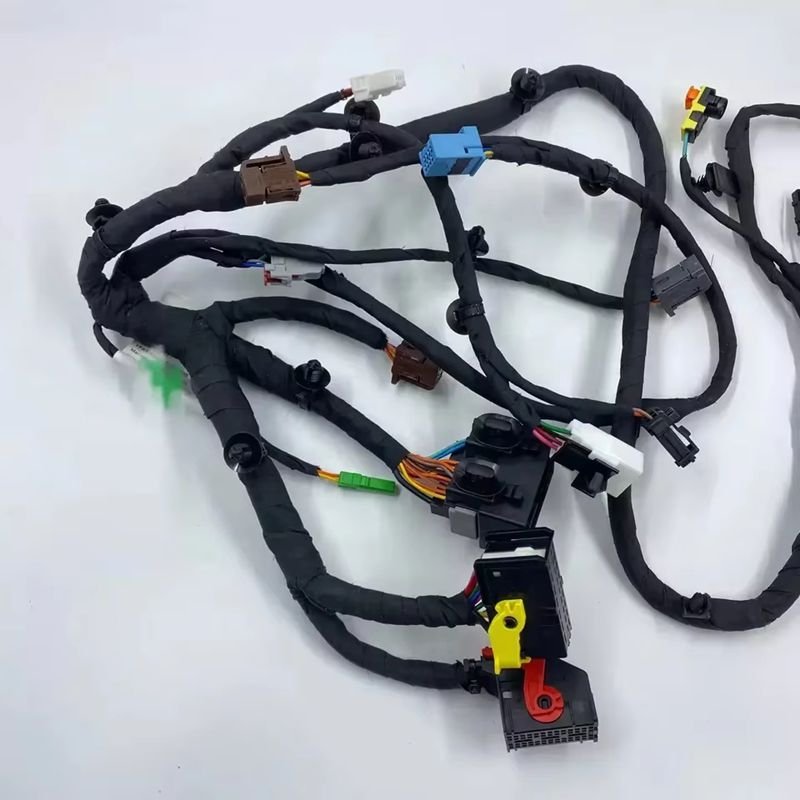

How Many Types of Automotive Wire Harnesses Exist?
There are several types of automotive wire harnesses, including engine, body, chassis, instrument panel, battery/high-voltage, and custom harnesses. Each type serves a specific role in connecting critical vehicle systems for reliable operation.
The table below summarizes the most common automotive wire harness types and their specifications.
Common Harness Types and Specifications
| Harness Type | Typical Circuits | Voltage Range | Environment | Special Feature |
|---|---|---|---|---|
| Engine Harness | 40–120 | 12–24 V | High temp, vibration | Heat sleeves, EMI shielding |
| Body Harness | 60–200 | 12–24 V | Cabin | Low-smoke halogen-free options |
| Chassis Harness | 20–60 | 12–24 V | Road grime, water | Heavy-duty sealed connectors |
| Instrument Harness | 30–100 | 5–12 V | Dashboard | High-speed data lines |
| EV Battery Harness | 4–20 | 400–800 V | High-voltage | Orange jacket, interlocks |
| Custom Harness | Varies | Per spec | Any | CAD-to-PDF design in 30 min |
Wire harnesses aren’t one-size-fits-all—they’re specialized based on function:
- Engine Harness → Essential for ECU–sensor communication, ensuring precise fuel injection and ignition.
- Body Harness → Powers comfort features like windows, locks, HVAC.
- Chassis Harness → Critical for safety systems like ABS, stability control.
- Instrument Harness → Carries data for infotainment, speedometer, warning lights.

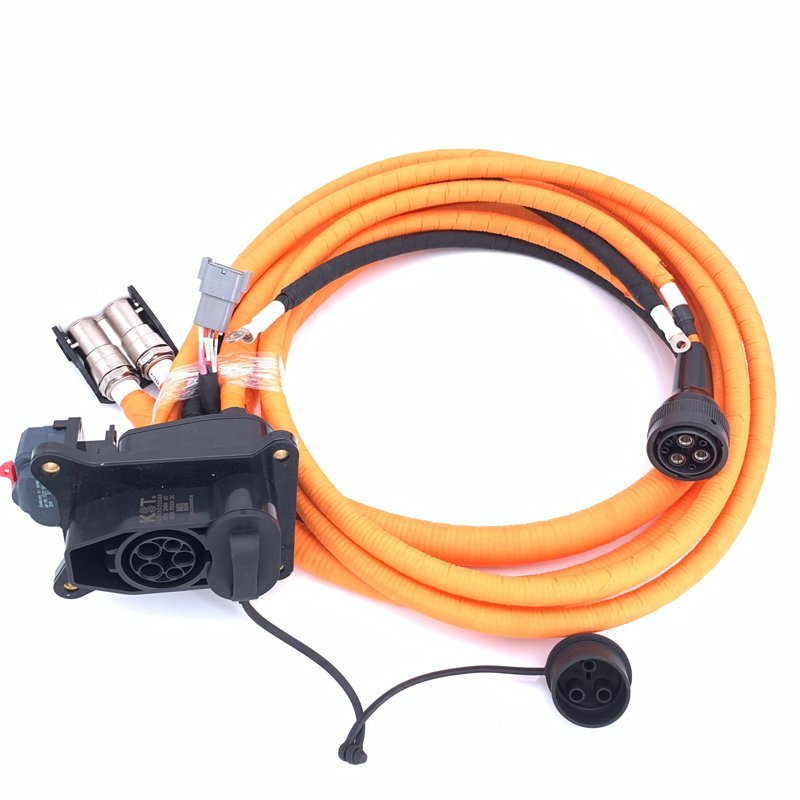

- Battery/High-Voltage Harness → Backbone of EVs, linking battery pack and motor.
- Custom Harness → Tailored for OEM innovation or aftermarket upgrades.
This modular approach ensures efficiency, scalability, and flexibility—qualities Sino-conn leverages when creating tailored harness solutions for customers worldwide.
Why Are Wire Harnesses Essential for Vehicle Safety and Efficiency?
Wire harnesses are essential because they simplify vehicle wiring, reduce weight, improve reliability, and enhance safety by protecting against vibration, heat, moisture, and corrosion. They also support the increasing complexity of modern automotive electronics.
Safety & Efficiency Gains from Proper Harness Design
| Goal | Design Lever | Typical Improvement | What It Means to You |
|---|---|---|---|
| Reduce weight | Optimize AWG & routing | 5–12% harness mass | Better fuel economy/range |
| Cut assembly time | Modular sub-harnesses | 20–30% faster install | Lower line cost, quicker SOP |
| Boost reliability | Sealed connectors IP67/69K | > 10× fewer water ingress faults | Fewer warranty claims |
| Lower EMI issues | Twists/shields/grounds | 3–6 dB noise reduction | Stable ADAS & sensors |
| Improve serviceability | Labeling & breakouts | 25–40% faster troubleshooting | Less downtime |
These quantifiable improvements highlight why wire harness design is not only about technical compliance but also about real-world performance and cost savings.
The advantages span across engineering, safety, and customer experience:
- Simplified wiring: One harness can replace dozens of individual wires.
- Weight reduction: Lighter vehicles mean better fuel efficiency.
- Enhanced reliability: Centralized wiring prevents signal interference.
- Safety: Fire-resistant insulation prevents short circuits.
- Durability: Harnesses withstand -40°C to +125°C, essential for under-the-hood environments.
According to a McKinsey automotive report, optimizing wiring can cut assembly costs by 30% while improving safety compliance—a critical balance in today’s auto market.

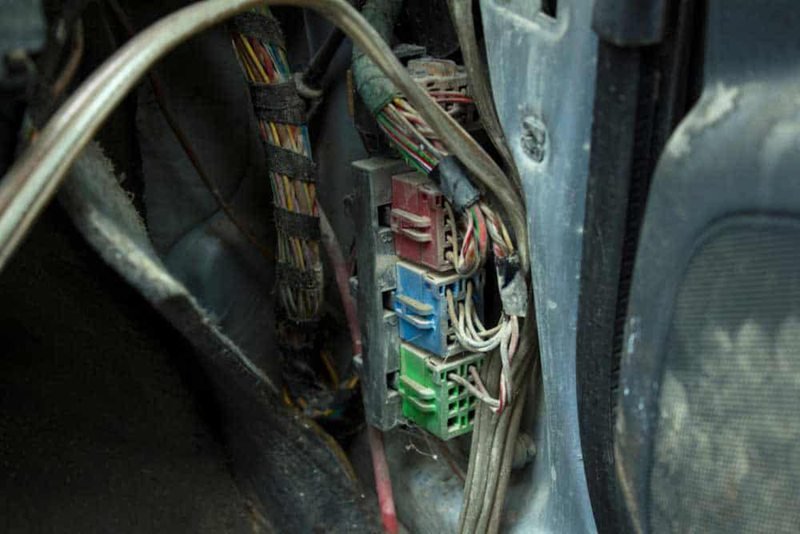

Do Automotive Wire Harnesses Impact Cost, Maintenance, and Performance?
Yes. The cost of wire harnesses depends on materials, design complexity, and connector type. High-quality harnesses reduce maintenance needs, improve long-term reliability, and enhance overall vehicle performance, making them a smart investment.
Costs vary:
- OEM harnesses: High reliability, longer lead times, higher cost.
- Aftermarket harnesses: Flexible, cheaper, faster delivery.
- Custom harnesses: Balanced solution, optimized to customer specs.
Sino-conn offers both premium original connectors for critical applications and flexible alternative options for budget-conscious buyers—without compromising performance. This versatility helps clients manage budgets while ensuring durability and safety.
The table below highlights the key cost drivers for wire harness projects and shows how Sino-conn provides flexible solutions to control budgets.
Cost Drivers and Commercial Options
| Factor | Impact on Price | Typical Range | Sino-conn Advantage |
|---|---|---|---|
| Connector choice (OEM vs alt) | High | 15–40% | OEM originals or qualified substitutes |
| Insulation material | Medium | ±10% | PVC, XLPE, Silicone options |
| Shielding level | Medium | ±15% | Selective or full coverage |
| Volume & MOQ | High | Small vs mass | No MOQ, 1 pcs up |
| Lead time | High | 2–8 weeks | Samples in 3 days, bulk in 2 weeks |
Fast delivery and no MOQ mean customers can test ideas quickly, scale when ready, and avoid costly delays

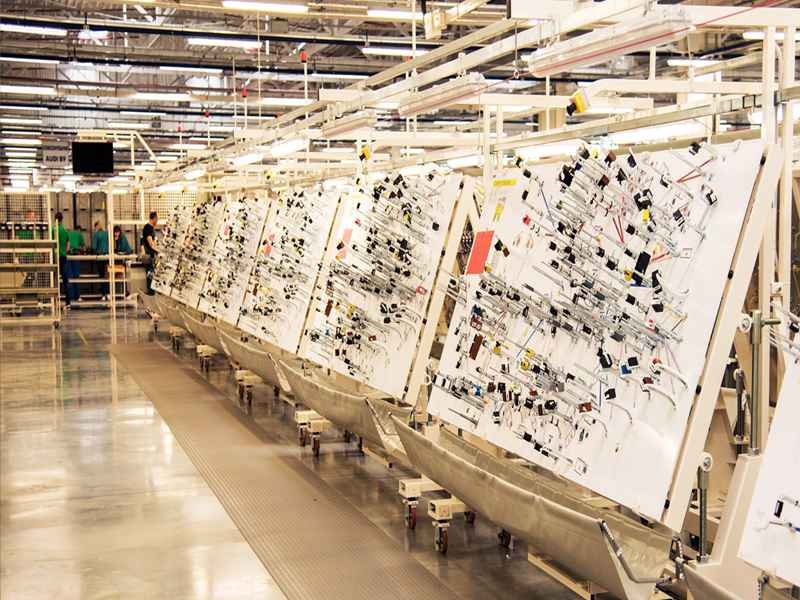

Who Manufactures Automotive Wire Harnesses and How to Choose the Right Supplier?
Not all suppliers are created equal. A wire harness is only as good as the company that designs, tests, and builds it. Choosing the right partner ensures your product launches smoothly, meets safety standards, and avoids costly recalls.
In short: Automotive wire harnesses are manufactured by specialized companies like Sino-conn. The right supplier should hold international certifications, offer customization, deliver fast samples, provide strict quality control, and adapt to both OEM and aftermarket needs.
- Certifications and Standards
- Essential certifications include UL, ISO 9001, IATF 16949, ROHS, and REACH.
- Without these, your product may fail compliance audits or face entry barriers in Europe/USA.
- Sino-conn provides full documentation (UL, ISO, RoHS, REACH, COC, COO), giving peace of mind.
- Customization Capabilities
- Many suppliers only offer standard harnesses.
- Sino-conn specializes in custom pin-outs, lengths, connector configurations, and material choices.
- Even urgent one-off prototypes (1 pcs MOQ) can be supported.
- Speed & Flexibility
- Global OEMs can’t wait months for samples.
- Sino-conn can deliver drawings in 30 minutes, samples in 3 days, and mass production in as little as 2 weeks.
- This speed often makes the difference between winning or losing a market opportunity.
- Quality Assurance
- Wire harness failures cause costly recalls.
- Sino-conn uses a triple-inspection process: in-process checks, end-of-line tests, and pre-shipment inspection.
- 100% of products are tested for electrical performance and durability.
- Commercial Terms
- OEM factories often request 30–90 days payment terms.
- Sino-conn supports flexible arrangements depending on order volume and customer type.
- Customer Support
- Engineers appreciate suppliers who speak their language.
- Sino-conn offers online video consultations, CAD-to-PDF drawings, and collaborative engineering support to refine designs.
Why This Matters to Buyers
- Trade companies: Need fast responses, specs, and drawings to close deals.
- Engineers/R&D teams: Value deep technical knowledge and customization.
- OEM factories: Care about price, delivery reliability, and production scale.
- Procurement buyers: Require clear certifications and competitive pricing.
Key takeaway: The right supplier isn’t just a vendor—it’s a partner. Sino-conn combines speed, expertise, and flexibility, making it an ideal choice whether you need 1 prototype or 10,000 harnesses.
Conclusion:
Automotive wire harnesses may be hidden, but they’re the backbone of every modern car. From simplifying complex wiring to enabling EV innovations, they are indispensable. Choosing the right partner ensures performance, safety, and cost-effectiveness.
At Sino-conn, we combine expertise, speed, customization, and strict quality control to deliver harnesses that exceed expectations. Whether you are an engineer, OEM, or distributor, our team is ready to support your next project.
Contact Sino-conn today to request a quote, customize your harness design, and get expert support tailored to your needs.
